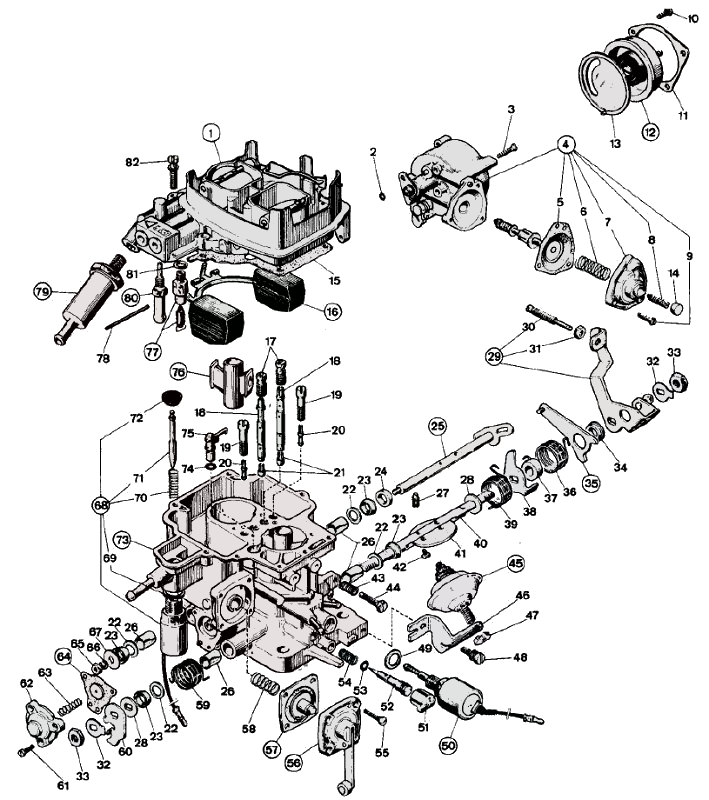

WEBER 32/34 DFT parts diagram
-
click on part to see more
List of parts:
No
Part No
Price
Pcs
Description
1
Not Serviced
$ 0
1
Top Cover Assembly
2
41565.008
$ 0.9
1
Auto Choke O-Ring Seal
3
64565.001
$ 0
3
Auto Choke Fixing Screw
4
57804.400
$ 0
1
Auto Choke Assy. Including
5
47407.159
$ 0
1
Choke Diaphragm
6
Not Serviced
$ 0
1
Diaphragm Loading Spring
7
Not Serviced
$ 0
1
Diaphragm Cover
8
Not Serviced
$ 0
1
Diaphragm Adjusting Screw
9
Not Serviced
$ 0
3
Diaphragm Cover Fixing Screw
10
64615.005
$ 0
3
Plate Fixing Screw
11
52135.029
$ 2.7
1
Thermostat Housing Lock Ring
12
57804.416
$ 0
1
Thermostat Housing
13
41640.056
$ 0
1
Heat Sealing Gasket
14
Not Serviced
$ 0
1
Screw Plug
15
41705.057
$ 0
1
Carburetor Cover Gasket
16
41030.012
$ 0
1
Float
17
77501
$ 7.1
2
Air Correction Jet
18
61450
$ 0
2
Emulsion Tube
19
52570.004
$ 9.5
2
Idle Jet Holder
20
74403
$ 3.6
2
Idle Jet
21
73405
$ 4.8
2
Main Jet
22
55510.087
$ 0
4
Carb Washer
23
52130.010
$ 4.6
4
Shaft Bearing Plate
24
12750.085
$ 3.2
1
Spacer
25
10015.255
$ 0
1
Secondary Shaft
26
52130.010
$ 4.6
4
Shaft Bearing Plate
27
Not Serviced
$ 0
1
Secondary Throttle Adjusting Screw
28
55555.019
$ 1.6
2
Washer
29
Not Serviced
$ 0
1
Throttle Valve Control Lever Including
30
64595.025
$ 0
1
Fast Idle Adjusting Screw
31
34715.018
$ 0
1
Adjusting Screrw Fixing Nut
32
55520.002
$ 1.1
2
Lock Washer
33
34715.014
$ 1.1
2
Primary Shaft Fixing Nut
34
47610.109
$ 0
1
Bushing For Free Lever
35
45069.015
$ 0
1
Free Lever
36
47610.109
$ 0
1
Spring For Free Lever
37
12750.087
$ 0
1
Spacer
38
Not Serviced
$ 0
1
Primary Throttle Control Lever
39
47610.118
$ 0
1
Primary Shaft Return Spring
40
Not Serviced
$ 0
1
Primary Shaft
41
64005.090
$ 18.1
1
Primary Throttle Plate
42
64520.027
$ 0.7
4
Throttle Plate Fixing Screw
43
47600.007
$ 2.6
1
Spring Primary Throttle Lever
44
64625.012
$ 7.7
1
Primary Throttle Adjusting Screw
45
10104.001
$ 0
1
Dash Pot
46
Not Serviced
$ 0
1
Dash Pot Bracket
47
34715.008
$ 0
1
Dash Pot Fixing Nut
48
Not Serviced
$ 0
1
Dash Pot Bracket Fixing Screw
49
41535.003
$ 1.9
1
Idle Cut Off Solenoid Gasket
50
43840.014
$ 0
1
Idle Cut Off Solenoid
51
Not Serviced
$ 0
1
Mixture Screw Tamper Proof Plug
52
64750.051
$ 13.1
1
Idle Mixture Adjusting Screw
53
41565.001
$ 0
1
Mixture Screw O-Ring Seal
54
47600.095
$ 2.6
1
Idle Mixrure Screw Spring
55
64565.001
$ 0
4
Pump Cover Fixing Screw
56
Not Serviced
$ 0
1
Pump Cover
57
47407.261
$ 11.1
1
Pump Diaphragm
58
47600.107
$ 8.9
1
Pump Loading Spring
59
47610.012
$ 4.8
1
Primary Shaft Return Spring
60
Not Serviced
$ 0
1
Pump Cam
61
Not Serviced
$ 0
3
Power Valve Cover Fixing Screw
62
Not Serviced
$ 0
1
Power Valve Cover
63
47600.131
$ 0
1
Power Valve Diaphragm Spring
64
47407.156
$ 0
1
Power Valve Diaphragm
65
34705.001
$ 0.9
1
Secondary Shaft Fixing Nut
66
55525.001
$ 0
1
Spring Washer
67
Not Serviced
$ 0
1
Washer
68
92.4052.05
$ 0
1
EVAP Solenoid Includes
69
41535.009
$ 0
1
Gasket
70
Not Serviced
$ 0
1
Spring
71
Not Serviced
$ 0
1
Spindle
72
Not Serviced
$ 0
1
Sealing Valve
73
Not Serviced
$ 0
1
Carburetor Body
74
41565.002
$ 0.5
1
Pump Jet O-Ring
75
76407
$ 14.6
1
Pump Jet
76
71115
$ 0
2
Auxiliary Venturi
77
79519
$ 0
1
Needle Valve
78
52000.036
$ 2.1
1
Float Fulcrum Pin
79
37022.005
$ 5.9
1
Strainer
80
10525.032
$ 0
1
Return Fuel Line Pipe
81
83102.070
$ 0.3
1
Needle Valve Gasket
82
$ 0
