WEBER 32 DCOF 6 parts diagram

- click on part to see more

List of parts:

No	Part No	Price	Pcs	Description
1	31736.005	$ 0	1	Carburetor top cover
2	64700.005	$ 0.6	4	Top Cover Fixing Screw
3	55510.034	$ 0.5	4	Spring Washer
4	41705.030	$ 0	1	Carburettor Cover Gasket
5	41360.001	$ 3.4	2	Air bleed jet
6	61440.515	$ 0	2	Emulsion Tube
7	64750.001	$ 3.6	1	Idle Mixture Screw
8	47600.007	$ 2.6	1	Idle Mixture Screw Spring
9	64590.002	$ 9.7	1	Throttle Stop Screw
10	47600 007	$ 0	1	Idle Mixture Screw Spring
11	61015.006	$ 4.6	2	Pump Demand Valve Cover
12	52730.001	$ 4.6	2	Pump Valve Weight
13	58300.001	$ 1.2	2	Pump Valve Ball
14	61015.006	$ 4.6	2	Pump Demand Valve Cover
15	61015.004	$ 7.4	1	Inspection Screw
16	58700.022	$ 0	1	Choke Cable Bracket
17	64700.003	$ 0	1	Lever Fixing Screw
18	64605.017	$ 2.1	1	Choke Cable Clamp
19	41565.008	$ 0.9	1	O ring
20	57804.021	$ 0	1	Dispositivo di sgolfamento comprendente
21	61015.003	$ 0	1	— Tappo
22	64595.005	$ 9.7	1	— Diaphragm adjusting screw
23	64700.004	$ 2.9	3	Pump Cover Screw
24	32384 009	$ 0	1	— Coperchio sceto la
25	47600.070	$ 0	1	— Diaphragm loading spring
26	47407.040	$ 31.1	1	— Membrana completa
27	57804.022	$ 0	1	— Scatola con boccola
28	64700.010	$ 0	2	Fixing Screw
29	55510.013	$ 0	1	Rosetta per leva
30	45025.098	$ 0	1	Lever
31	55530.008	$ 3.8	1	Spring Ring
32	34715.006	$ 0	1	— Cold Start Nut
33	45103.019	$ 0	1	Lever
34	12775.010	$ 9.3	1	Bushing For Lever
35	64700.012	$ 3	1	Lever Fixing Screw
36	61280.066	$ 0	1	Tirantlno comando sgolfamento
37	32610.006	$ 0	1	— Spilt pin
38	34715.014	$ 1.1	1	Throttle Spindle Nut
39	55520.002	$ 1.1	1	Shaft Lock Tab
40	45032.058	$ 0	1	Throttles control lever
41	47610.071	$ 4.5	1	Throttle Return Spring
42	55555.019	$ 1.5	1	Shaft Spacer
43	64520.024	$ 0	4	Throttle Plate Screw
44	64005 092	$ 0	2	Throttle Valve
45	10005.411	$ 34.5	1	Throttle Shaft
45	10006 409	$ 0	1	Primary Throttle Shaft - Oversized
46	64700.012	$ 3	1	Lever Fixing Screw
47	12775.010	$ 9.3	1	Bushing For Lever
48	45096.022	$ 0	1	Leva a squadro comprendente
49	64615.004	$ 0	1	- Screw securing wire
50	45096.021	$ 0	1	— Leva a squadro
51	14852.004	$ 0	1	Pump Cam
52	58445.001	$ 0.5	1	Fixing Pin
53	61280.039	$ 0	1	Tlrantino comando avviamento
54	47670.002	$ 5.2	1	Compression Spring
55	47407.039	$ 0	1	Pump diaphragm
56	39174.009	$ 0	1	Flangia pompa
57	32486.025	$ 0	1	Accelerator Pump Cover
58	64700.019	$ 0	4	Pump Cover Screw
59	64700.004	$ 2.9	2	Pump Cover Screw
60	47600.107	$ 8.9	1	Pump Spring
61	41640.019	$ 5.8	1	Guarnizione per flangia pompa
62	41120.001	$ 4.4	2	Main jet
63	50002.004	$ 0	1	Shaft Bushing
64	47600.027	$ 4.6	1	Bush retaining spring
65	45082.007	$ 0	1	Leva registro minimo veloce comprendente
66	45080.012	$ 0	1	— Throttle Lever
67	34705.002	$ 0	1	— Cold Start Nut
68	64520.028	$ 0	1	Throttles adjusting screw
69	45082.006	$ 0	1	Fast idling loose lever
70	55520.003	$ 0	1	Shaft Lock Tab
71	34710.003	$ 1.1	1	Throttle Spindle Nut
72	47605 006	$ 0	1	Spindle return spring
73	64520.029	$ 0	1	Fixing Screw
74	55530.008	$ 3.8	1	Spring Ring
75	12775.010	$ 9.3	1	Bushing For Lever
76	45032.104	$ 0	1	Choke Lever
77	47610.003	$ 5.2	1	Choke lever return spring
78	12775.010	$ 9.3	1	Bushing For Lever
79	64700.012	$ 3	1	Lever Fixing Screw
80	32610.006	$ 0	1	— Spilt pin
81	61280.040	$ 0	1	Tie rod
82	64525.003	$ 0	4	Choke plate fixing screw
83	64005.012	$ 0	2	Choke throttle valve
84	10020.217	$ 0	1	Choke shaft
85	45200.033	$ 0	1	Lever
86	64955 104	$ 0	4	Stud
87	64520.092	$ 0	1	Carburetor Body
88	41030.006	$ 0	1	Float
89	41160.003	$ 3.4	2	Idle jet
90	52570.003	$ 15.7	2	Idle Jet Holder
91	64240.008	$ 0	1	Float valve
92	41535.015	$ 0	1	Needle valve gasket
93	52000.015	$ 1.9	1	Float pivot
94	37022.002	$ 5.2	1	Filter element
95	41530 024	$ 0	1	Fuel Filter Gasket
96	61002 010	$ 0	1	Tappo ispeziono filtro

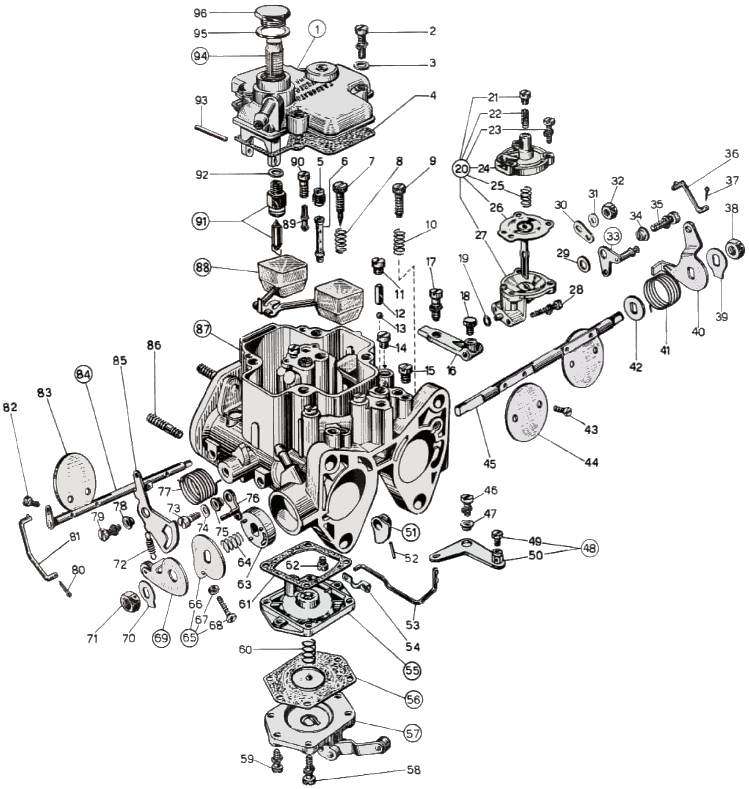

WEBER 32 DCOF 6 - exploded view
