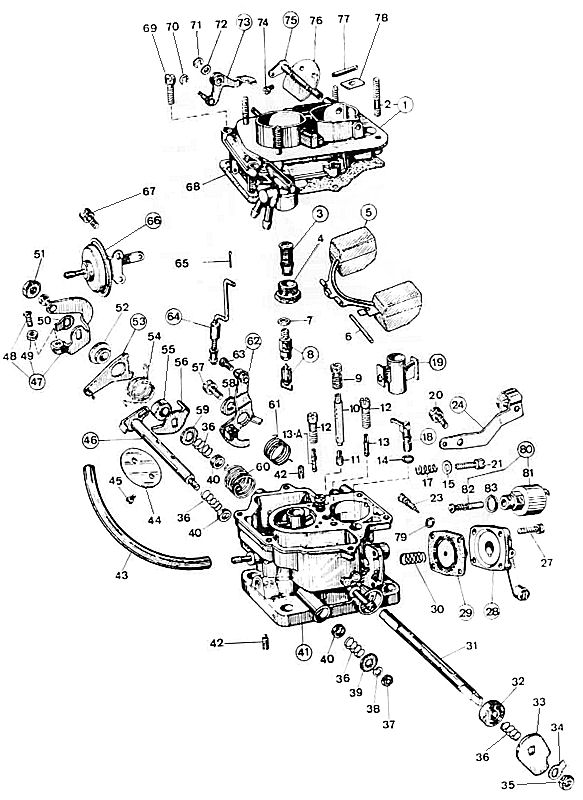

WEBER 34 DMTR 21 parts diagram
-
click on part to see more
List of parts:
No
Part No
Price
Pcs
Description
1
Not Available
$ 0
1
Carburetor Top- Including
2
64955.004
$ 0
4
-5 Mm Stud 38 Mm Long
3
37022.010
$ 5.8
1
Fuel Filter
4
61002.018
$ 11.9
1
Fuel Filter Inspection Plug
5
41030.012
$ 0
1
Float - Plastic
6
52000.036
$ 2.1
1
Float Pin
7
83102.070
$ 0.3
1
Needle Valve Gasket
8
79507
$ 8.6
1
Needle & Seat
9
77501
$ 7.9
2
Air Corrector Jet
10
61450
$ 11.8
2
Emulsion Tube
11
73405
$ 5.3
2
Main Jet
12
52570.004
$ 10.6
2
Idle Jet Holder
13
74403
$ 4
2
Idle Jet
14
41565.001
$ 0
1
Pump Jet O-Ring
17
47600.007
$ 2.5
1
Idle Speed Screw Spring
18
76407
$ 14.3
1
Pump Jet
19
71115
$ 0
2
Auxiliary Venturi
20
64700.012
$ 3.1
1
Lever Fixing Screw
21
64625.012
$ 8.6
1
Throttle Stop Screw
23
64750.044
$ 13.2
1
Mixture Screw
24
Not Available
$ 0
1
Choke Cable Bracket
27
64700.006
$ 0
4
Pump Cover Fixing Screw
28
Not Available
$ 0
1
Pump Cover
29
47404.249
$ 0
1
Accelerator Pump Diaphragm
30
47600.107
$ 9.9
1
Accelerator Pump Spring
31
10000.241
$ 0
1
Primary Throttle Shaft
31
10001.209
$ 0
1
Primary Throttle Shaft - Oversized
32
50002.008
$ 8.3
1
Shaft Bushing
33
Not Available
$ 0
1
Pump Cam
34
55520.004
$ 1.1
1
Shaft Nut Lock Tab
35
34710.003
$ 1.1
1
Shaft Nut
36
47600.027
$ 5.2
4
Shaft Nut Bushing Retaining Spring
37
34705.001
$ 0.8
1
Fixing Nut
38
55525.001
$ 0
1
Spring Washer
39
Not Available
$ 0
1
Washer
40
12750.085
$ 4.2
3
Shaft Retaining Bushing
41
Not Available
$ 0
1
Carburetor Body
42
Not Available
$ 0
2
Set Screw
43
Not Available
$ 0
1
Vacuum Line
44
64005.018
$ 17.8
2
Throttle Plate
45
64520.027
$ 0.7
4
Throttle Plate Screw
46
10016.207
$ 0
1
Secondary Throttle Shaft Oversized
46
10015.255
$ 0
1
Secondary Throttle Shaft
47
45041.071
$ 0
1
Throttle Lever
48
64595.009
$ 0
1
Screw
49
34715.006
$ 0
1
Nut
50
55520.002
$ 1.1
1
Shaft Nut Lock Tab
51
34715.014
$ 1.1
1
Shaft Nut
52
12775.053
$ 0
1
Bushing
53
45069.015
$ 0
1
Loose Lever
54
47610.092
$ 5.4
1
Spring
55
12750.087
$ 0
1
Bushing
56
Not Available
$ 0
1
Primary Throttle Stop Lever
57
64700.012
$ 3.1
1
Lever Fixing Screw
58
55510.002
$ 1.6
1
Washer
59
55555.019
$ 1.6
1
Shaft Spacer
60
47610.091
$ 0
1
Spring
61
47610.058
$ 0
1
Choke Lever Spring
62
45202.091
$ 22.8
1
Choke Lever - Including
63
64615.004
$ 0
1
- Choke Cable Fixing Screw
64
61287.009
$ 0
1
Choke Rod
65
32610.005
$ 1.5
1
Split Pin
66
57804.107
$ 0
1
Carb Capsule
67
64700.012
$ 3.1
2
Lever Fixing Screw
68
41705.041
$ 2.8
1
Top Cover Gasket
69
64700.005
$ 0.6
6
Top Cover Fixing Screw
70
10140.501
$ 1.7
1
Spring Ring
71
10140.502
$ 2.3
1
Clip
72
55510.034
$ 0.4
1
Carb Washer
73
45069.017
$ 0
1
Lever
74
64525.003
$ 0
2
Choke Plate Fixing Screw
75
10015.256
$ 0
1
Choke Rod
76
64010.029
$ 0
1
Choke Plate
77
61070.002
$ 3.3
1
Dust Seal Plate
78
52135.010
$ 3.3
1
Dust Seal Plate
79
41565.010
$ 0
1
O-Ring
80
43840.014
$ 0
1
Idle Cut Off Unit Complete - Includes
81
Not Available
$ 0
1
Idle Cut Off Unit
82
58352.010
$ 0
1
Idle Cut Off Needle
