WEBER 35 DCNL 2/3 parts diagram













Price per piece:

Pieces:



COVID-19 status: NO RESTRICTIONS
Worldwide shipping for $5 - small parts
DHL 3 days shipping for $29 flat rate
PayPal payment, Bank transfer or Ebay
1 year warranty, 30 days for return
Currency:   $   €   £
Worldwide shipping for $5 - small parts
Paypal payment, bank transfer for EU or Ebay
1 year warranty, 30 days for return
Carb manufacturer: Carb model:
   Download exploded view as PDF

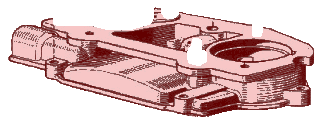

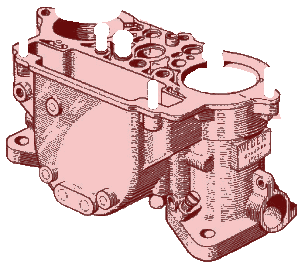

WEBER 35 DCNL 2/3 parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
16905a$ 01Carburetor cover
264955.104$ 2.52— Stud bolt
3N 74$ 02— Spring washer
434725.004$ 02— Securing nut
564955.009$ 34— Stud bolt
6$ 04Washer
7$ 04Spring washer
741$ 04Spring washer
834725.003$ 1.24Fixing nut
9$ 01Spring washer
1034725.004$ 01Fixing nut
11$ 04Plate securing air horn
1234725.003$ 1.24Fixing nut
1352840.022$ 492Air horn
14$ 02Auxiliary Venturi extension pipe
15$ 01Gasket for carburetor cover
1652580.001$ 5.52Emulsioning tube holder
1777401$ 5.2Air corrector jet
1810410.017$ 01Pump control rod
1964290.005$ 12.4Pump delivery valve
2061450$ 292Emulsioning tube
2152140.007$ 4.2Retainer, pump plunger spring
2264955.109$ 0Stud bolt
2377903$ 0Idling jet holder
2447600.103$ 1.91Pump plunger spring
2541540.014$ 1.6Pump jet gasket
2673401$ 152Main jet
2741165.252$ 02
2841252.009$ 02Pump jet
2958602.004$ 01Pump plunger
3079701$ 7.91Intake valve with discharge orifice
31$ 01Throttles shaft
32$ 02Throttle valve
3364520.027$ 0.74Throttles fixing screw
3432650.003$ 02Ball bearing
3541570.001$ 1.12Oust cover
3647600.063$ 2.1Spring
3758000.007$ 32Small lid for spring retainer
3845034.053$ 01Throttles control lever
3955520.004$ 1.12Lock washer
4034710.003$ 1.12Fixing nut
4147600.007$ 2.52Spring for throttles adj. screw
4138$ 01Spring for throttles adj. screw
4264625.012$ 6.51Throttles adjusting screw
4358445.001$ 0.41Spring pin
4445082.013$ 01Pump control lever
4561015.001$ 6.32Progression orifices inspection screw
4641015.008$ 01Float
4741530.017$ 0Gasket for float fulcrum screw
48TS 685**$ 01Float fulcrum screw
4864900.010$ 01Float fulcrum screw
4945028.040$ 01Shaft return lever
5047605.018$ 01Shaft return spring
5152010.036$ 01Spring retainer
5264750.001$ 32Idling mixture adjusting screw
5364955.029$ 04Stud bolt
54$ 02Choke
55$ 02Auxiliary Venturi
5679504$ 01Needle valve
5741530.049$ 01Needle valve gasket
58—$ 01CARBURETOR BODY
5975605$ 122Starting jet
6064330.003$ 72Starting valve
6147600.005$ 3.52Spring for valve
6212775.004$ 3.52Spring guide and retainer
6310140.010$ 3.52Circlip
6455525.010$ 0.41— Spring washer
65$ 01Throttles control lever
66$ 01Starting control
67$ 01— Starter control lever
6864800.002$ 01— Screw securing wire
6945025.043$ 01— Starting control lever
7034720.002$ 01— Nut for screw
7110085.009$ 01— Starting shaft
7232556.006$ 01— Sheath support cover
7347610.042$ 7.51Lever return spring
7464605.017$ 2.71— Screw securing sheath
7534715.010$ 01Lever fixing nut
7637000.016$ 01— Strainer
7755510.038$ 02— Washer
7864700.004$ 2.42— Fixing screw
79—$ 01CARBURETOR BODY
8052135.008$ 61Plate
81$ 02Fixing screw
8255525.010$ 0.42Spring washer

WEBER 35 DCNL 2/3 - exploded view

https://www.carbparts.euPrices and product availability are subject to change

WEBER 35 DCNL 2/3 - Parts list

https://www.carbparts.euPrices and product availability are subject to change
NoPart NoPricePcsDescription
16905a$ 01Carburetor cover
264955.104$ 2.52— Stud bolt
3N 74$ 02— Spring washer
434725.004$ 02— Securing nut
564955.009$ 34— Stud bolt
6$ 04Washer
7$ 04Spring washer
741$ 04Spring washer
834725.003$ 1.24Fixing nut
9$ 01Spring washer
1034725.004$ 01Fixing nut
11$ 04Plate securing air horn
1234725.003$ 1.24Fixing nut
1352840.022$ 492Air horn
14$ 02Auxiliary Venturi extension pipe
15$ 01Gasket for carburetor cover
1652580.001$ 5.52Emulsioning tube holder
1777401$ 5.2Air corrector jet
1810410.017$ 01Pump control rod
1964290.005$ 12.4Pump delivery valve
2061450$ 292Emulsioning tube
2152140.007$ 4.2Retainer, pump plunger spring
2264955.109$ 0Stud bolt
2377903$ 0Idling jet holder
2447600.103$ 1.91Pump plunger spring
2541540.014$ 1.6Pump jet gasket
2673401$ 152Main jet
2741165.252$ 02
2841252.009$ 02Pump jet
2958602.004$ 01Pump plunger
3079701$ 7.91Intake valve with discharge orifice
31$ 01Throttles shaft
32$ 02Throttle valve
3364520.027$ 0.74Throttles fixing screw
3432650.003$ 02Ball bearing
3541570.001$ 1.12Oust cover
3647600.063$ 2.1Spring
3758000.007$ 32Small lid for spring retainer
3845034.053$ 01Throttles control lever
3955520.004$ 1.12Lock washer
4034710.003$ 1.12Fixing nut
4147600.007$ 2.52Spring for throttles adj. screw
4138$ 01Spring for throttles adj. screw
NoPart NoPricePcsDescription
4264625.012$ 6.51Throttles adjusting screw
4358445.001$ 0.41Spring pin
4445082.013$ 01Pump control lever
4561015.001$ 6.32Progression orifices inspection screw
4641015.008$ 01Float
4741530.017$ 0Gasket for float fulcrum screw
48TS 685**$ 01Float fulcrum screw
4864900.010$ 01Float fulcrum screw
4945028.040$ 01Shaft return lever
5047605.018$ 01Shaft return spring
5152010.036$ 01Spring retainer
5264750.001$ 32Idling mixture adjusting screw
5364955.029$ 04Stud bolt
54$ 02Choke
55$ 02Auxiliary Venturi
5679504$ 01Needle valve
5741530.049$ 01Needle valve gasket
58—$ 01CARBURETOR BODY
5975605$ 122Starting jet
6064330.003$ 72Starting valve
6147600.005$ 3.52Spring for valve
6212775.004$ 3.52Spring guide and retainer
6310140.010$ 3.52Circlip
6455525.010$ 0.41— Spring washer
65$ 01Throttles control lever
66$ 01Starting control
67$ 01— Starter control lever
6864800.002$ 01— Screw securing wire
6945025.043$ 01— Starting control lever
7034720.002$ 01— Nut for screw
7110085.009$ 01— Starting shaft
7232556.006$ 01— Sheath support cover
7347610.042$ 7.51Lever return spring
7464605.017$ 2.71— Screw securing sheath
7534715.010$ 01Lever fixing nut
7637000.016$ 01— Strainer
7755510.038$ 02— Washer
7864700.004$ 2.42— Fixing screw
79—$ 01CARBURETOR BODY
8052135.008$ 61Plate
81$ 02Fixing screw
8255525.010$ 0.42Spring washer
