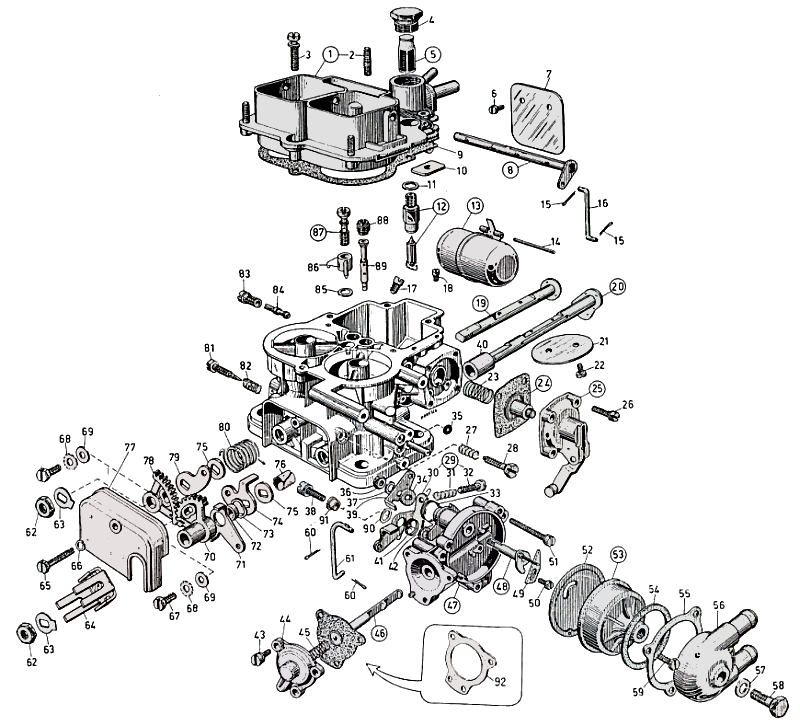

WEBER 40 DFAV parts diagram
-
click on part to see more
List of parts:
No
Part No
Price
Pcs
Description
1
31716.092
-
1
Carb Top Cover
2
64955.002
$ 8.3
3
Stud Bolt
3
64700.005
-
5
Top Cover Screw
4
61002.018
$ 11.9
1
Strainer Inspection Plug
5
37022.010
$ 5.6
1
Strainer
6
64525.003
-
4
Screw
7
64010.007
$ 11.9
2
Plate
8
10020.204
-
1
Shaft & Lever Assembly
9
41705.031
-
1
Top Cover Gasket
10
52135.010
$ 3.2
1
Dust Seal
11
83102.070
-
1
Gasket
12
79519
-
1
Needle & Seat
13
41015.004
$ 58.1
1
Float
14
52000.015
$ 2
1
Float Pin
15
32610.005
$ 1.6
2
Split Pin
16
61280.004
-
1
Rod
17
73801
$ 4.2
2
Main Jet
18
61015.005
$ 3.2
1
Plug
19
10015.482
-
1
Shaft
20
10015.430
-
1
Shaft Assembly
21
64005.011
$ 23.4
2
Plate
22
64520.027
-
4
Screw
23
47600.107
$ 9.9
1
Accelerator Pump Spring
24
47407.027
$ 11.9
1
Diaphragm Assembly
25
32486.015
-
1
Cover Assy
26
64700.004
$ 3.2
4
Screw
27
47600.007
$ 2.4
1
Spring
28
64625.001
-
1
Screw
29
45041.001
-
1
Lever Assembly
30
45039.001
-
1
Lever
31
47600.007
$ 2.4
1
Spring
32
64590.001
$ 6.5
1
Screw
33
47610.010
$ 11.6
1
Spring
34
55555.006
-
1
Spacer
35
41565.008
-
1
O Ring Seal
36
34705.001
-
1
Nut
37
55525.001
-
1
Washer Spring
38
64700.014
$ 1
1
Screw
39
45032.006
-
1
Lever
40
12750.016
$ 9.9
1
Spacer
41
47610.018
$ 9
1
Spring
42
55510.013
-
1
Washer
43
64700.007
-
3
Screw
44
32384.001
-
1
Cover
45
47600.003
$ 6.2
1
Spring
46
47407.008
-
1
Vacuum Diaphragm & Shaft Assy
47
57804.001
-
1
Body Assembly
48
10085.001
$ 28.2
1
Shaft & Lever Assembly
49
52135.015
-
1
Plate
50
64520.001
-
1
Screw
51
64700.008
$ 6.2
3
Screw
52
41640.005
$ 3.2
1
Gasket
53
57804.005
-
1
Thermostat Assy
54
41555.001
-
1
Gasket
55
52135.006
$ 5.9
1
Ring
56
32444.002
-
1
Water Chamber
57
41530.002
$ 2
1
Washer
58
64615.001
-
1
Bolt
59
64615.005
-
3
Screw
60
32610.005
$ 1.6
2
Split Pin
61
61280.041
-
1
Rod
62
34715.014
$ 1.1
2
Nut
63
55520.002
$ 1.1
2
Lock Washer
64
45027.089
$ 18.3
1
Lever
65
64610.004
-
1
Screw
66
55525.007
-
1
Washer
67
64615.003
-
2
Screw
68
55535.001
-
2
Washer External Tooth
69
55510.007
-
2
Washer
70
58202.011
$ 67.1
1
Primary gear level
71
45039.003
-
1
Lever
72
12750.001
-
1
Bushing
73
55530.002
$ 3.3
1
Washer
74
45032.039
-
1
Lever
75
55555.016
$ 2.2
2
Wahser
76
52130.010
$ 5.2
4
Shaft Bushing
77
32464.001
-
1
Cover
78
58202.003
$ 67.1
1
Geared Carb Sector (Left Hand)
79
45025.024
-
1
lever
80
47610.012
$ 4.9
1
Left Hand Return Spring
81
64750.001
$ 4
2
Needle Screw
82
47600.007
$ 2.4
2
Spring
83
52570.005
$ 9.9
2
Idle Jet Holder
84
74403
$ 4
2
Idle Jet
85
41540.014
$ 2.7
1
Gasket
86
76212
$ 14.5
1
Accelerator Pump Jet
87
64290.005
$ 32.2
1
Accelerator Pump Valve Assembly
88
77201
$ 3.4
2
Air Corrector Jet
89
61440
$ 15.5
2
Emulsion Tube
90
55530.005
$ 6
1
Washer
91
12765.005
-
1
Bushing
92
41640.013
-
1
Power Valve
93
64700.014
$ 1
1
Lever Fixing Screw
94
12775.017
-
1
Bushing For Lever
95
Not Serviced
-
1
Valve Control Lever
96
Not Serviced
-
1
Washer For Lever
97
47610.033
-
1
Spring For Lever
98
32610.005
$ 1.6
1
Split Pin For Rod
99
Not Serviced
-
1
Valve Control Rod
100
Not Serviced
-
1
Right Shaft Return Spring
WEBER 40 DFAV
