| No | Part No | Price | Pcs | Description |
| 1 | 31716.132 | - | 1 | Carburetor cover Assy, including: |
| 2 | 64955.002 | $ 8.3 | 4 | - Stud holt |
| 3 | 64700.001 | - | 6 | Carb. cover fixing screw |
| 4 | 10020.222 | - | 1 | Choke shaft & lever Assy |
| 5 | 64010.007 | $ 11.9 | 2 | Choke throttle valve |
| 6 | 32610.005 | $ 1.5 | 1 | Split pin |
| 7 | 61287.003 | - | 1 | Choke rod |
| 8 | 61070.002 | $ 3.2 | 1 | Dust seal plug |
| 9 | 52135.010 | $ 3.2 | 1 | Dust seal plate |
| 10 | 61002.018 | $ 11.9 | 1 | Strainer inspection pluq |
| 11 | 37022.003 | $ 5.6 | 1 | Strainer Assy |
| 12 | 64525.003 | - | 4 | Choke plates fixing screw |
| 13 | 41705.035 | $ 4 | 1 | Carb. cover gasket |
| 14 | 57804.052 | $ 68.3 | 1 | Carb. power valve Assy |
| 15 | 52000.015 | $ 2 | 1 | Float fixing pin |
| 16 | 64700.007 | - | 3 | Control valve retaining screw |
| 17 | 55510.038 | - | 3 | Washer for control valve sorew |
| 18 | 41535.015 | - | 1 | Needle valve gasket |
| 19 | 79516.200 | $ 12.5 | 1 | Needle valve Assy |
| 20 | 41030.019 | $ 49 | 1 | Float Assy |
| 21 | 64235.016 | $ 19.8 | 1 | Full power needle valve Assy |
| 22 | 41530.013 | - | 1 | Power valve gasket |
| 23 | 64900.001 | $ 11.9 | 1 | Pump discharge blanking needle |
| 24-A | 73801 | $ 4.2 | 1 | Secondary main jet |
| 24 | 41120.001 | $ 4.1 | 1 | Primary main jet |
| 25 | 12750.085 | $ 4.1 | 4 | Shaft retaining bush |
| 26 | 47600.027 | $ 5.2 | 4 | Bush retaining spring |
| 27 | 64005.034 | $ 17 | 1 | Secondary throttle valve |
| 28 | 10016.477 | - | 1 | Secondary shaft Assy oversize |
| 28 | 10015.492 | - | 1 | Secondary shaft |
| 29 | 10016.476 | - | 1 | Primary shaft Assy oversize |
| 29 | 10015.493 | - | 1 | Primary shaft |
| 30 | 64005.090 | $ 17 | 1 | Primary throttle valve |
| 31 | 64520.023 | - | 4 | Throttle plates fixing screw |
| 32 | 47610.079 | $ 5.5 | 1 | Shaft return spring |
| 33 | 12765.047 | - | 1 | Spacer |
| 34 | 32486.037 | - | 1 | Accel. pump cover Assy |
| 35 | 64700.006 | - | 4 | Pump cover fixing screw |
| 36 | 47407.048 | $ 8.3 | 1 | Accel. pump diaphragm Assy |
| 37 | 47600.092 | - | 1 | Pump loading spring |
| 38 | 74403 | $ 4 | 1 | Primary idle iet |
| 38-A | 74403 | $ 4 | 1 | Secondary idle jet |
| 39 | 41565.002 | - | 2 | Gasket for idling jet holder |
| 40 | 52570.006 | $ 6.9 | 2 | Idling jet holder |
| 41 | 45202.064 | - | 1 | Choke control lever Assy including |
| 42 | 45202.065 | - | 1 | - Lever |
| 43 | 64615.004 | - | 1 | - Screw securing wire |
| 44 | 47610.058 | - | 1 | Spring for choke lever |
| 45 | 12775.010 | $ 9.7 | 1 | Bushing for choke lever |
| 46 | 64700.012 | $ 3.1 | 1 | Choke lever fixing screw |
| 47 | 64700.012 | $ 3.1 | 1 | Square lever fixing screw |
| 48 | 12775.010 | $ 9.7 | 1 | Bushing for square lever |
| 49 | 45096.025 | $ 24.6 | 1 | Fast idle control square lever Assy |
| 50 | 32610.005 | $ 1.5 | 1 | Split pin |
| 51 | 47610.033 | - | 1 | Spring for square lever |
| 52 | 64625.017 | $ 9.8 | 1 | Primary throttle adjusting screw |
| 53 | 47600.007 | $ 2.4 | 1 | Spring for throttle adjusting screw |
| 54 | 64595.005 | $ 10.2 | 1 | Secondary throttle adjusting screw |
| 55 | 61280.086 | $ 17.8 | 1 | Fast idling control rod |
| 56 | 64750.025 | $ 6.6 | 1 | Idle adjusting screw |
| 57 | 47600.007 | $ 2.4 | 1 | Spring for idle adjusting screw |
| 58 | 45046.020 | $ 29.9 | 1 | Primary throttle control lever |
| 59 | 55510.061 | $ 2.4 | 2 | Washer for loose lever |
| 60 | 45067.024 | $ 11.4 | 1 | Fast idling loose lever |
| 61 | 55530.002 | $ 3.3 | 1 | Washer-wave |
| 62 | 12775.006 | $ 16.7 | 1 | Bushing for loose lever |
| 63 | 45136.029 | $ 13 | 1 | Throttle valve control lever |
| 64 | 47605.010 | $ 5.2 | 1 | Spring for loose lever |
| 65 | 34715.014 | $ 1.1 | 1 | Throttle shaft fixing nut |
| 66 | 55520.002 | $ 1.1 | 1 | Lock washer |
| 67 | 15069.011 | - | 1 | Loose lever Assy |
| 68 | 34705.001 | - | 1 | Secondary shaft fixing nut |
| 69 | 55525.001 | - | 1 | Sprinq washer |
| 70 | 55510.046 | $ 2.4 | 1 | Washer for loose lever |
| 71 | 45032.124 | $ 11.4 | 1 | Secondary throttle control lever |
| 72 | | - | 1 | Carburetor body |
| 73 | 58702.024 | $ 8.2 | 1 | Sheat support Assy. including: |
| 74 | 58700.028 | $ 8.2 | 1 | - Sheat support |
| 75 | 52145.001 | - | 1 | - Sheat securing plate |
| 76 | 64615.007 | - | 1 | - Sheat plate fixing screw |
| 77 | 64700.012 | $ 3.1 | 1 | Sheat support fixing screw |
| 78 | 61440.216 | $ 11.9 | 1 | Primary emulsioning tube |
| 78-A | 61440 | $ 15.4 | 1 | Secondary emulsioning tube |
| 79-A | 77201 | $ 3.4 | 1 | Secondary air corrector jet |
| 79 | 61440 | $ 15.4 | 1 | Primary air corrector jet |
| 80 | 41530.012 | - | 2 | Pump jet gasket |
| 81 | 76226 | $ 12.1 | 1 | Accel. pump jet |
| 82 | 64280.017 | - | 1 | Pump delivery valve Assy |
| 83 | 71111 | - | 2 | Auxiliary Venturi |
| 84 | | - | | ?? |
| 85 | | - | | ?? |

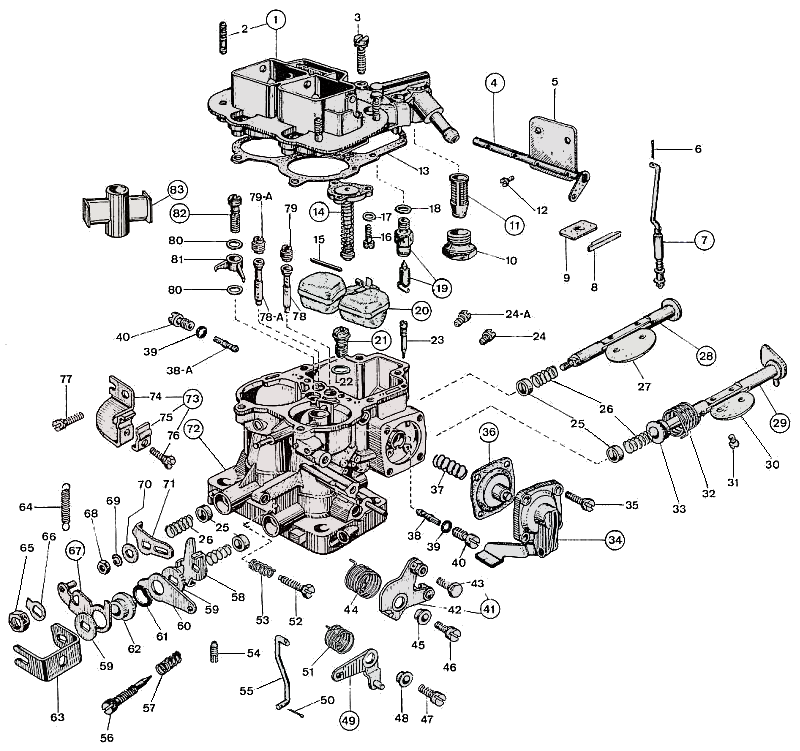

Download exploded view as PDF
