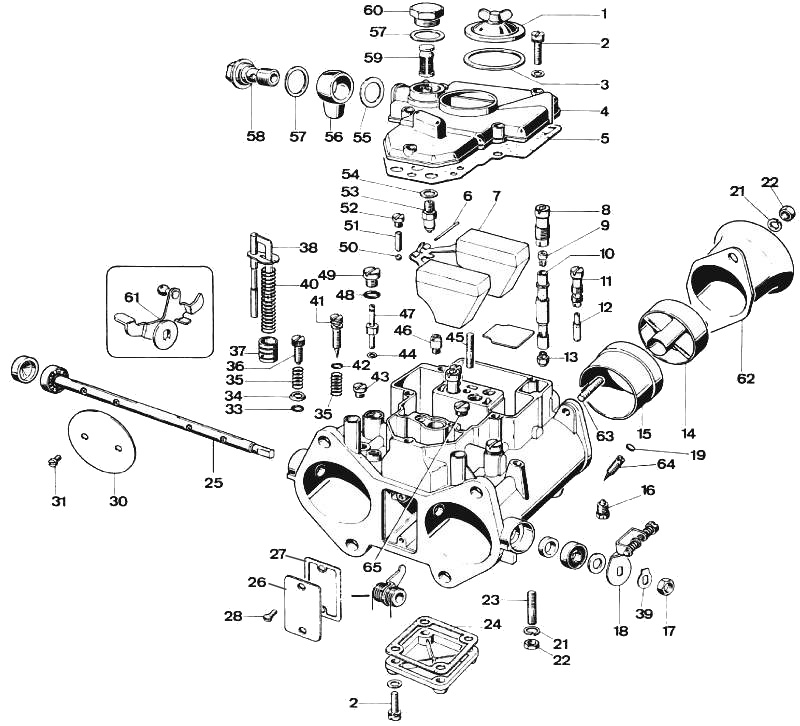

WEBER 50 DCO parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
92.0362.05-1Gasket Kit
92.1514.05-1Repair Kit
132376.003$ 15.21Jet Inspection Cover
264700.001-9Screw
341550.009-1Jet Inspection Cover Gasket
431734.193-1Carburetor Cover-50 DCO SP
431734.194-1Carburetor Cover-50 DCO 1/SP
541715.011$ 3.31Carburettor Cover Gasket
652000.001$ 3.21Float Pin
741030.034$ 19.11Float
852580.001$ 9.22Emulsion Tube Holder
977401.160$ 6.32Air Corrector Jet
1061450.091$ 13.32Emulsion Tube
1152585.006$ 10.82Idle Jet Holder
1274821.065$ 6.72Idle Jet
1373401.180$ 5.42Main Jet
1468820.500$ 66.72Auxiliary Venturi
1572136.460$ 23.22Venturi (Choke Tube)
1664840.003$ 6.74Screw
1734715.017$ 1.41Throttle Spindle Nut
1845041.270$ 57.21Throttle Lever
1961030.008-2Air By-Pass Screw Cover
2155525.010-5Spring Washer
2234705.004-5Support Bracket Fixing Nut
2364955.104-1Support Bracket Stud
2441640.066$ 3.41Bottom Cover Gasket
2510020.240-1Throttle Shaft
2652135.025-1Inspection cover
2741640.065$ 1.21Inspection Cover Gasket
2864570.009$ 12Inspection Cover Fixing Screw
3064005.135$ 40.52Throttle Plate
3164520.027-4Throttle Plate Fixing Screw
3341565.002-1Throttle Stop Screw O Ring
3458000.006$ 2.61Throttle Stop Screw O Ring Cap
3547600.007$ 3.13Mixture Screw Spring
3664625.015$ 7.81Throttle Stop Screw
3758602.003$ 12.41Pump Plunger
3810410.015$ 11.71Pump Rod
3955520.004$ 1.41Throttle Shaft Lock Washer
4047600.068$ 9.21Pump rod Spring
4164750.058$ 102Mixture Screw
4241565.015-2Mixture Screw O Ring
4361015.009$ 102Vacuum Take-Off cover
4441535.021$ 1.42Pump Jet Gasket
4564955.007$ 13.51Stud
4679701.100$ 18.21Pump Exhaust Valve
4776801.045$ 9.32Pump Jet
4841565.009-2Pump Jet Cover O ring
4961015.008$ 152Pump Jet Cover
5058300.003-2Pump Demand Valve Ball
5152730.001$ 6.62Pump Demand Valve Weight
5261015.006$ 6.62Pump Demand Valve Cover
5379503.250$ 15.91Needle Valve
5483102.100-1Needle Valve Gasket
5541530.031-1Fuel Union Gasket
5610354.019$ 26.71Fuel Union
5741530.024-2Fuel Union and Filter Cover Gasket
5812715.008$ 11.41Fuel Union Bolt
5937002.002-1Fuel Filter
6061002.010$ 8.71Fuel Filter Cover
6145041.269$ 46.21Throttle Lever
6264955.101$ 25.14Stud
6352845.015-2Air Horn
6464595.012-2Air By-Pass Screw
6564590.008$ 11.72Progression Hole Inspection Cover
