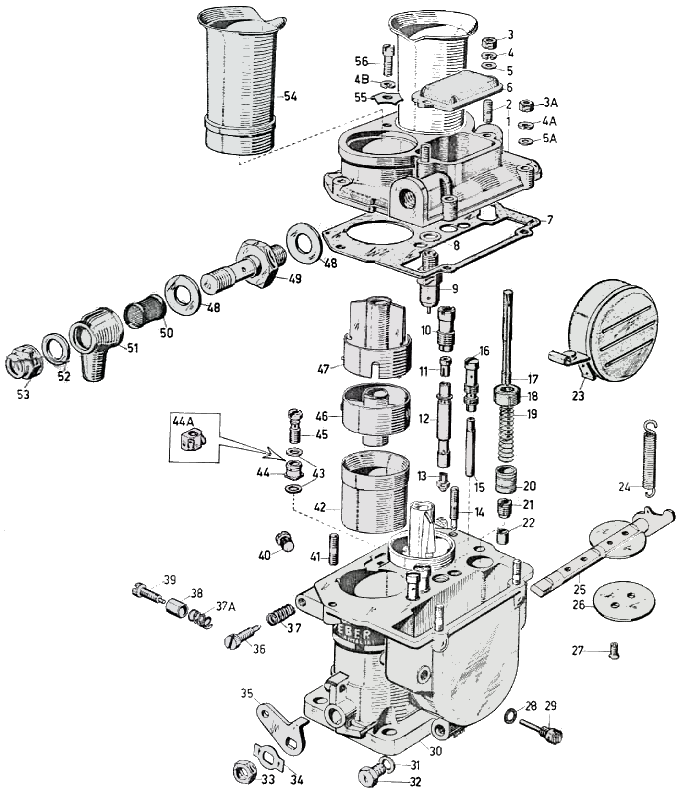

WEBER 38 DCN parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
131716.014-1Carburetor Top Cover
264955.009$ 5.22Stud
334705.001$ 12Nut
3a34705.001$ 14Nut
455525.001-2Spring Washer
4b55525.001-1Spring Washer
4a55525.001-4Spring Washer
5a55510.034-4Carburetor Washer
555510.034-2Carburetor Washer
637012.005$ 24.21Jet Cover
741705.006-1Top Cover Gasket
841530.049-1Gasket
979406.175-1Needle & Seat
1052580.001$ 9.22Emulsion Tube Hilder
1177401$ 6.32Air Corrector Jet
1261450.166$ 13.32Emulsion Tube
1373401$ 5.42Main Jet
1464970.001-1Stud
1541165.251-2Idle Jet
1677903$ 10.82Idle Jet Holder
1710410.008-1Pump Rod
1858000.005-1Collar
1947600.034$ 9.21Spring
2058602.001-1Plunger 38 DCN
2058602.007-1Plunger 38 DCN 1
2164290.002-1Valve
2212750.051-138 DCN
2212750.050-138 DCN 1
2341015.003-1Float
2447605.009$ 3.21Throttle Return Spring
2510020.401$ 11.71Throttle Shaft
2664005.050-2Butter Fly
2764570.009$ 14Throttle Plate Screw
2841540.016-1Gasket
2964900.003-1Float Pin
30Not Serviced-1Carburetor Body
3141535.008-1Washer
3261002.006$ 5.81Plug
3334715.015-1Fixing Nut
3455520.001$ 2.11Shaft Lock Tab
3545032.032$ 201Lever
3664750.001$ 5.12Idle Mixture Screw
37a47600.007$ 3.11Spring
3747600.007$ 3.12Spring
3812785.004-1Sleeve
3964590.003$ 6.81Screw
4061015.001$ 102Plug
4164955.029-3Stud
4234914.003-2Main Venturi (Choke)
4341540.014$ 2.22Pump Jet Gasket
44a41252.010-1Pump Jet 38 DCN 1
4441260.002-1Pump Jet 35 DCN
4564290.005$ 41.21Valve
4631876.005-2Auxiliary Venturi
4752754.005-2Auxiliary Venturi Extension
4841530.004-2Gasket
4910602.001-1Fuel Banjo Bolt
5037022.001$ 23.11Fuel Filter
5110354.006$ 21.51Fuel Union
5241530.001-1Gasket
5334750.001-1Banjo Cap Nut
5452840.010-2Air Horn
5552150.010$ 6.31Air Horn Tab
5664535.001$ 15.91Air horn Tab screw

WEBER 38 DCN
Exploded view
