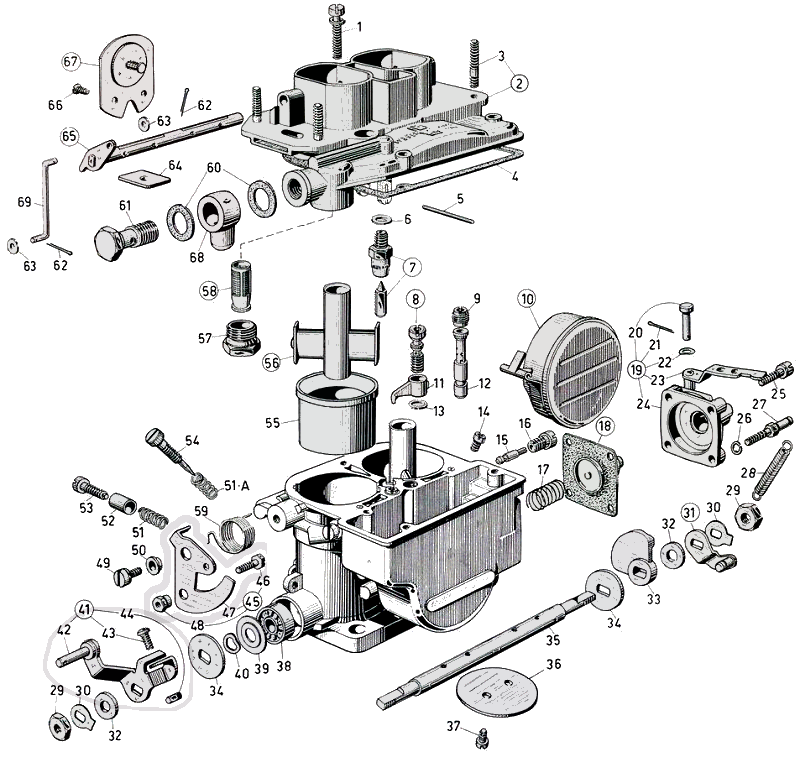

WEBER 40 DCN parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
164700.005-4Top Cover Fixing Screw
231716.029-1Top Cover
364955.004-4Top Cover Stud
441705.026$ 15.41Top Cover Gasket
552000.010$ 2.61Float Pin
683102.070-1Needle Valve Gasket
779503$ 15.91Needle & Seat
864290.005$ 42.61Pump Demand Valve
977201$ 4.32Air Corrector Jet
1041015.012-1Brass Float
1176215-1Pump Jet
1261440$ 20.42Emulsion Tube
1341540.014$ 2.21Pump Jet Gasket
1473801$ 5.42Main Jet
1574401$ 9.12Idle Jet
1652570.005$ 12.42Idle Jet Holder
1747600.107$ 12.41Accelerator Pump Spring
1847407.249$ 151Accelerator Pump Diaphragm
1932486.013-1Accelerator Pump Cover Assembly Includes
2052010.033-1Pin
21Not Available-1Split Pin
22Not Available-1Washer
2345089.001-1Pump Pivot Lever
2432484.001-1Accelerator Pump Cover
2564700.004$ 43Choke Cover Fixing Screw
2655525.007$ 11Lock Washer
2752025.001-1Pin
2847605.018-1Spring
2934710.003$ 1.42Throttle Spindle Nut
3055520.004$ 1.42Shaft Lock Tab
3145082.002-1Carb Lever
3255510.006-2Washer
3314852.042-1Pump Cam
3455555.005$ 3.12Washer
3510005.408$ 1101Throttle Shaft
3664005.020-2Throttle Plate
3764520.027-4Screw
3832650.003$ 2.82Sealed Bearing
3958000.017$ 5.12Bearing Cover
4055530.005$ 7.92Washer
4145041.011-1Throttle Lever Assembly Includes
42Not Available-1Lever
43Not Available-1Screw
4434705.001$ 11Nut
45Not Available-1Fast Idle Lever Assembly Includes
4664800.002$ 8.71Bolt with Hole
47Not Available-1Fast Idle Lever
4834720.002$ 7.71Nut
4964700.012$ 3.31Lever Fixing Screw
5012775.010$ 10.41Bushing For Lever
5147600.007$ 3.21Spring
51a47600.007$ 3.22Spring
5212785.084-1Bushing
5364625.012$ 10.81Throttle Stop Screw
5464750.001$ 5.12Idle Mixture Screw
5572129$ 26.72Main Venturi (Choke)
5671102$ 36.82Auxiliary Venturi
5761002.018$ 151Strainer Inspection Plug
5837022.010$ 7.41Fuel Filter
5947610.003$ 5.91Spring
60-2
61-1
62-2
63-2
64-1
65-1
66-4
67-2
68-1
69-1

WEBER 40 DCN
Exploded view
https://www.carbparts.euPrices and product availability are subject to change

WEBER 40 DCN
List of parts
https://www.carbparts.euPrices and product availability are subject to change
NoPart NoPricePcsDescription
164700.005-4Top Cover Fixing Screw
231716.029-1Top Cover
364955.004-4Top Cover Stud
441705.026$ 15.41Top Cover Gasket
552000.010$ 2.61Float Pin
683102.070-1Needle Valve Gasket
779503$ 15.91Needle & Seat
864290.005$ 42.61Pump Demand Valve
977201$ 4.32Air Corrector Jet
1041015.012-1Brass Float
1176215-1Pump Jet
1261440$ 20.42Emulsion Tube
1341540.014$ 2.21Pump Jet Gasket
1473801$ 5.42Main Jet
1574401$ 9.12Idle Jet
1652570.005$ 12.42Idle Jet Holder
1747600.107$ 12.41Accelerator Pump Spring
1847407.249$ 151Accelerator Pump Diaphragm
1932486.013-1Accelerator Pump Cover Assembly Includes
2052010.033-1Pin
21Not Available-1Split Pin
22Not Available-1Washer
2345089.001-1Pump Pivot Lever
2432484.001-1Accelerator Pump Cover
2564700.004$ 43Choke Cover Fixing Screw
2655525.007$ 11Lock Washer
2752025.001-1Pin
2847605.018-1Spring
2934710.003$ 1.42Throttle Spindle Nut
3055520.004$ 1.42Shaft Lock Tab
3145082.002-1Carb Lever
3255510.006-2Washer
3314852.042-1Pump Cam
3455555.005$ 3.12Washer
3510005.408$ 1101Throttle Shaft

NoPart NoPricePcsDescription
3664005.020-2Throttle Plate
3764520.027-4Screw
3832650.003$ 2.82Sealed Bearing
3958000.017$ 5.12Bearing Cover
4055530.005$ 7.92Washer
4145041.011-1Throttle Lever Assembly Includes
42Not Available-1Lever
43Not Available-1Screw
4434705.001$ 11Nut
45Not Available-1Fast Idle Lever Assembly Includes
4664800.002$ 8.71Bolt with Hole
47Not Available-1Fast Idle Lever
4834720.002$ 7.71Nut
4964700.012$ 3.31Lever Fixing Screw
5012775.010$ 10.41Bushing For Lever
5147600.007$ 3.21Spring
51a47600.007$ 3.22Spring
5212785.084-1Bushing
5364625.012$ 10.81Throttle Stop Screw
5464750.001$ 5.12Idle Mixture Screw
5572129$ 26.72Main Venturi (Choke)
5671102$ 36.82Auxiliary Venturi
5761002.018$ 151Strainer Inspection Plug
5837022.010$ 7.41Fuel Filter
5947610.003$ 5.91Spring
60-2
61-1
62-2
63-2
64-1
65-1
66-4
67-2
68-1
69-1
