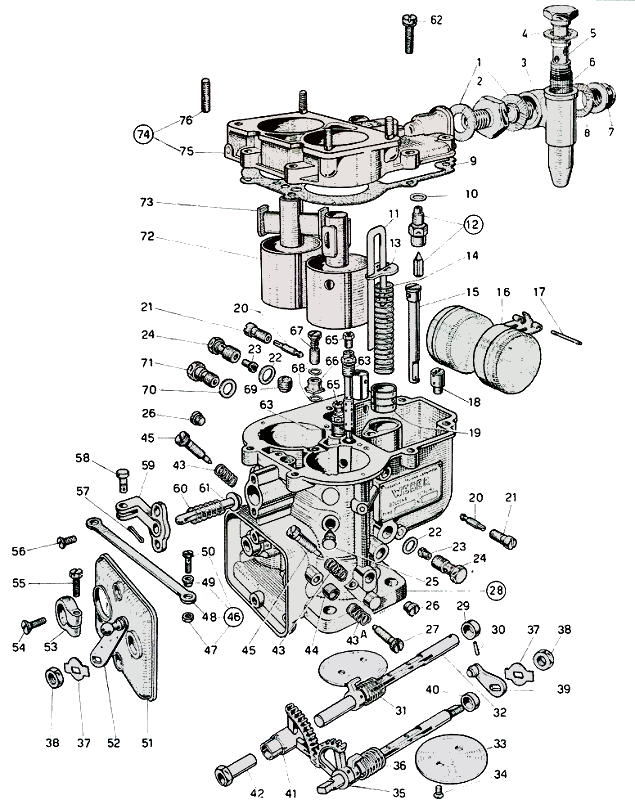

WEBER 40 DCZ parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
141530.004-2Banjo Bolt Gasket
210602.001-1Fuel Banjo Bolt
3Not Serviced-1Fuel Union
441530.031-1Fuel Union Gasket
5Not Serviced-1Fuel Union Bolt
637022.001$ 23.11Fuel Filter
7Not Serviced-1Fuel Union Cap
841530.001-1Fuel Union Gasket
941705.011$ 161Top Cover Gasket
1083102.070-1Needle Valve Gasket
11Not Serviced-1Pump Rod
1279503$ 15.91Needle & Seat
13Not Serviced-1Pump Rod Clip
14Not Serviced-1Pump Rod Spring
15Not Serviced-1Adjustment Tube
1641030.003-1Float
1752000.001$ 3.21Float Pin
1879701$ 13.21Exhaust Valve
1958602.004-1Plunger
2074401$ 8.72Idle Jet
2152570.003$ 17.12Jet Holder
2241540.001$ 22Main Jet Gasket
2373801$ 5.42Main Jet
2452590.001$ 12.62Jet Holder
2564840.003$ 6.72Locking Screw
2661015.001$ 102Plug
2764590.003$ 6.82Screw
28Not Serviced-1Carburetor Body
2912750.251-1Brass Spacer
3058440.001-1Roll Pin
3147610.003$ 5.71Spring
3210016.409-1Oversized Throttle Shaft
3364005.057$ 192Throttle Plate
3464570.009$ 14Throttle Plate Screw
3510016.401-1Oversized Throttle Shaft
3647610.029-1Spring
3755520.001$ 2.12Shaft Lock Tab
3834715.01-2Fixing Nut
3945082.01-1Pump Lever w/ Roller Wheel
4012750.04-1Brass Spacer
4158202.006-1Throttle Shaft Gear
4212800.076$ 29.21Excentric
4347600.007$ 3.12Spring
43a47600.007$ 3.12Spring
44Not Serviced-2Spacer
4564750.001$ 5.12Idle Mixture Screw
46Not Serviced-1Lever Assembly
4734705.002-1Nut
48Not Serviced-1lever
49Not Serviced-1Washer
50Not Serviced-1Screw
51Not Serviced-1Cover
52Not Serviced-1Lever
53-b4837B-1Gear Clamp brass
53-a4837A-1Gear Clamp aluminum
5464750.004$ 12.12Screw
5564605.001-1Screw
5664570.002-2Screw
5732610.005$ 1.61Split Pin
58Not Serviced-1Clevis Pin
59Not Serviced-1Cold Start Bracket
6047600.015-1Spring
6164370.001-1Pin
6264700.005-6Top Cover Fixing Screw
6361455$ 45.52Emulsion Tube
6577502$ 6.22Air Corrector Jet
66Not Serviced-1Pump Jet
6764290.005$ 41.21Valve
6841540.014$ 2.22Pump Jet Gasket
69Not Serviced-1Air Valve
7083101.150-1Carb Gasket
71Not Serviced-1Drain Plug
7271501-2Main Venturi (Choke)
73Not Serviced-2Auxilary Venturi
74Not Serviced-1Carb Top Cover Assembly
75Not Serviced-1Carb Top Cover
76-

WEBER 40 DCZ
Exploded view
