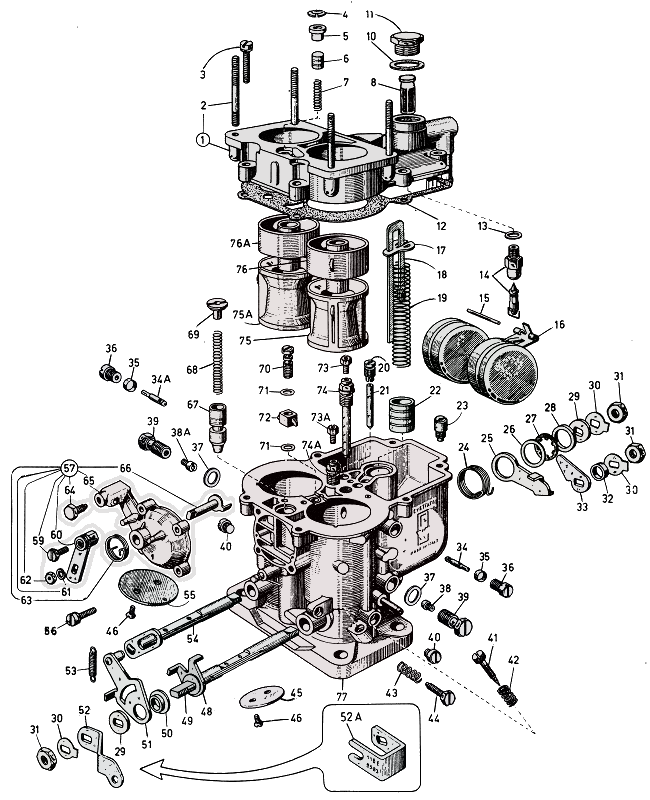

WEBER 28/36 DCD parts diagram
-
click on part to see more
List of parts:
No
Part No
Price
Pcs
Description
1
Not Serviced
-
1
Top Cover
2
64955.007
$ 13.1
4
Top Cover Stud
3
64700.005
-
6
Mixture Screw
4
10140.010
$ 3.4
1
Clip
5
12775.013
-
1
Bushing
6
58600.007
$ 35
1
Plunger
7
47600.052
-
1
Spring
8
37022.010
$ 5.6
1
Fuel Filter
10
41530.024
-
1
Fuel Filter Gasket
11
61002.010
$ 6.9
1
Fuel Filter Cover
12
41705.002
-
1
Top Cover Gasket
13
83102.070
-
1
Needle Valve gasket
14
79507
$ 9.8
1
Needle and Seat
15
52000.001
$ 2.5
1
Float Pin
16
41030.011
$ 95.3
1
Brass Float
17
52140.002
$ 7
1
Pump Spring Retainer
18
10400.024
$ 7.9
1
Pump Rod
19
47600.085
-
1
Spring
20
77505
-
1
Starter Air Jet
21
77504
-
1
Starter Air Jet
22
58602.005
$ 17
1
Plunger
23
79701
$ 10.4
1
Exhaust Valve
24
47610.040
$ 7
1
Spring
25
45039.026
-
1
Lever
26
55510.041
$ 2.2
1
Washer
27
10140.401
$ 2.4
1
Spring Ring
28
Not Serviced
-
1
Washer
29
55555.016
$ 2.2
2
Shaft Spacer
30
55520.002
$ 1.1
3
Shaft Lock Tab
31
34715.014
$ 1.1
3
Throttle Shaft Fixing Nut
32
12750.058
-
1
Bushing
33
14850.010
-
1
Cam
34
74401
$ 6.9
2
Idle Jet
35
41565.045
$ 1.8
2
Gasket
36
52570.005
$ 9.9
2
Idle Jet Holder
37
41540.001
$ 1.9
2
Gasket
38
73801
$ 4.2
2
Main Jet
39
52590.001
$ 21.3
2
Jet Holder
40
61015.010
-
1
Plug
41
64750.001
$ 4
1
Idle Mixture Screw
42
47600.007
$ 2.5
1
Spring
43
47600.084
$ 5.9
1
Spring
44
64625.002
$ 4.1
1
Screw
45
64005.017
$ 16.5
1
Primary Throttle Plate
46
64570.008
$ 2.6
4
Screw
47
47610.039
$ 4.2
1
Spring
48
45039.017
$ 11.6
1
Carb Lever
49
10000.439
-
1
Primary Shaft
50
12775.027
$ 10
1
Bushing
51
45131.002
$ 44
1
Slotted Lever
52
45027.036
-
1
Ball Lever
53
47605.001
$ 5.6
1
Spring
54
10015.436
-
1
Secondary Shaft
55
64005.088
$ 22.2
1
Secondary Throttle Plate
56
64700.004
$ 3.2
4
Choke Cover Fixing Screw
57
32536.005
-
1
Choke Housing
58
45027.017
$ 18.5
1
Choke Lever Including
59
34720.002
$ 7
1
Nut
60
45025.003
$ 10.1
1
Choke Lever
61
64800.002
$ 8
1
Cold Start bolt W/Hole
62
34715.010
-
1
Fixing Nut
63
47610.004
$ 5.6
1
Spring
64
64605.017
$ 1.8
1
Choke Cable Clamp
65
32534.003
-
1
Choke Housing
66
10085.004
$ 52.2
1
Choke Shaft
67
64330.001
$ 33.5
1
Valve
68
47600.051
$ 5
1
Spring
69
52030.001
-
1
Spring Retainer
70
64290.005
$ 32.4
1
Valve
71
41540.014
$ 2.7
2
Pump Jet Gasket
72
76203
-
2
Pump Jet
73
77502
$ 4.9
2
Air Corrector Jet
74
61455
$ 35.9
2
Emulsion Tube
75A
71701
-
1
Secondary Choke
75
71702
-
1
Primary Choke
76
69001
-
2
Auxiliary Venturi
77
Not Serviced
-
1
Carburetor Bodyy
78
55525.010
-
1
Spring Washer
