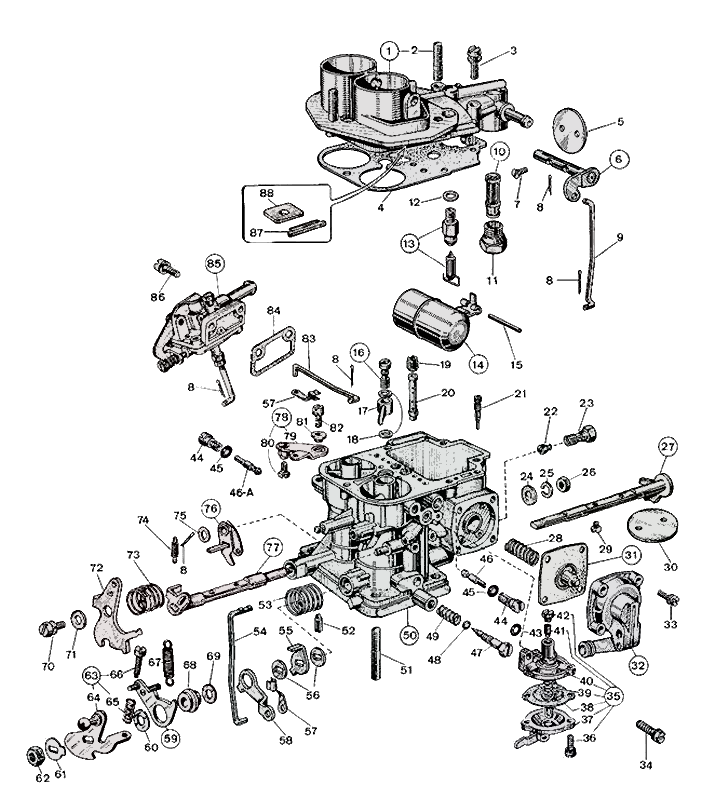

WEBER 28/36 DCD parts diagram


 - kliknij część, aby zobaczyć więcej

Lista części:

NoNr częściCenaSzt.Opis
1Not Serviced-1Top Cover
264955.007$ 13.54Top Cover Stud
364700.005-6Mixture Screw
410140.010$ 3.61Clip
512775.013-1Bushing
658600.007$ 361Plunger
747600.052-1Spring
837022.010$ 61Fuel Filter
1041530.024-1Fuel Filter Gasket
1161002.010$ 7.41Fuel Filter Cover
1241705.002-1Top Cover Gasket
1383102.070-1Needle Valve gasket
1479507$ 14.51Needle and Seat
1552000.001$ 2.81Float Pin
1641030.011$ 97.91Brass Float
1752140.002$ 7.21Pump Spring Retainer
1810400.024$ 8.71Pump Rod
1947600.085-1Spring
2077505-1Starter Air Jet
2177504-1Starter Air Jet
2258602.005$ 18.71Plunger
2379701$ 11.51Exhaust Valve
2447610.040$ 7.21Spring
2545039.026-1Lever
2655510.041$ 2.31Washer
2710140.401$ 2.41Spring Ring
28Not Serviced-1Washer
2955555.016$ 2.32Shaft Spacer
3055520.002$ 1.13Shaft Lock Tab
3134715.014$ 1.13Throttle Shaft Fixing Nut
3212750.058-1Bushing
3314850.010-1Cam
3474401$ 7.42Idle Jet
3541565.045-2Gasket
3652570.005$ 10.82Idle Jet Holder
3741540.001$ 22Gasket
3873801$ 4.72Main Jet
3952590.001$ 112Jet Holder
4061015.010-1Plug
4164750.001$ 4.41Idle Mixture Screw
4247600.007$ 2.61Spring
4347600.084$ 61Spring
4464625.002$ 4.21Screw
4564005.017$ 16.91Primary Throttle Plate
4664570.008$ 2.74Screw
4747610.039$ 4.51Spring
4845039.017$ 11.91Carb Lever
4910000.439-1Primary Shaft
5012775.027$ 10.31Bushing
5145131.002$ 45.21Slotted Lever
5245027.036-1Ball Lever
5347605.001$ 5.71Spring
5410015.436-1Secondary Shaft
5564005.088$ 22.81Secondary Throttle Plate
5664700.004$ 3.54Choke Cover Fixing Screw
5732536.005-1Choke Housing
5845027.017$ 191Choke Lever Including
5934720.002$ 6.61Nut
6045025.003$ 10.41Choke Lever
6164800.002$ 7.61Cold Start bolt W/Hole
6234715.010-1Fixing Nut
6347610.004$ 5.71Spring
6464605.017$ 1.71Choke Cable Clamp
6532534.003-1Choke Housing
6610085.004$ 53.61Choke Shaft
6764330.001$ 34.41Valve
6847600.051$ 5.11Spring
6952030.001-1Spring Retainer
7064290.005$ 34.51Valve
7141540.014$ 1.82Pump Jet Gasket
7276203-2Pump Jet
7377502$ 5.22Air Corrector Jet
7461455$ 38.12Emulsion Tube
75A71701-1Secondary Choke
7571702-1Primary Choke
7669001-2Auxiliary Venturi
77Not Serviced-1Carburetor Bodyy
7855525.010-1Spring Washer

WEBER 28/36 DCD
Exploded view
