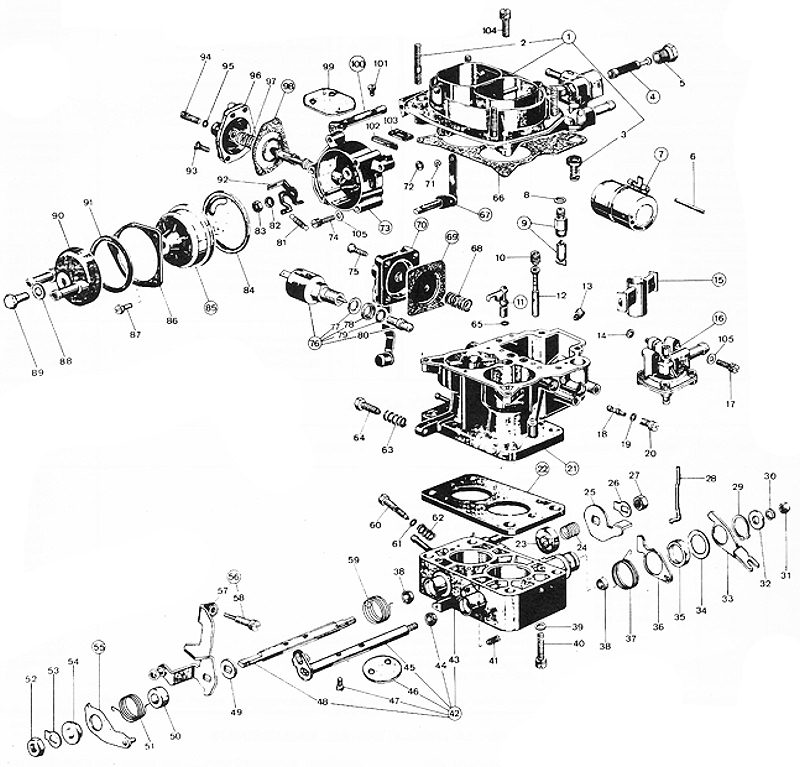

WEBER 32 ADFA parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
1Not Serviced-1Top Cover Assembly
264955.007$ 13.54Top Cover Stud
364372.009-1Plunger
437022.004$ 141Fuel Screen
561002.019-1Plug
652000.015$ 2.51Float Pin
741015.004$ 60.11Brass Float
883102.07-1Needle Valve Gasket
979519-1Needle & Seat
1077201$ 4.32Air Corrector Jet
1176407$ 18.41Pump Jet
1261440$ 19.82Emulsion Tube
1373801$ 5.42Main Jet
1441565.008$ 1.21O-Ring
1570512-2Auxiliary Venturi
1631800.027-1Capsule
1764700.010-2Screw
1874403$ 5.11Idle Jet
1941565.002-1O-Ring For Idle Jet Holder
2052570.006$ 8.91Idle Jet Holder
21Not Serviced-1Carburetor Body
2239152.015-1Base Spacer Gasket
2350002.008$ 8.91Shaft Bushing
2447600.027$ 6.61Bush Retaining Spring
2514850.102$ 11.91Cam
2655520.004$ 1.41Shaft Lock Tab
2734710.003$ 1.41Throttle Spindle Nut
2861280.115-1Rod
2910140.304-1Spring Ring
3055525.001-1Spring Washer
3134705.001$ 11Nut
3255510.081$ 2.31Washer
3345067.048-1Lever
3455530.014-1Washer
3512750.103-1Bushing
3645067.047-1Lever
3747610.102-1Spring
3841575.010$ 7.12Bushing
3955510.034-2Lock Washer
4064700.016-2Screw
4164595.013-1Screw
42Not Serviced-1Carburetor Base Assembly
43Not Serviced-1Carburetor Base
4441575.010$ 7.11Bushing
4510015.273-1Secondary Throttle Shaft
4664005.090$ 21.82Throttle Valve
4764520.027-4Screw
4810000.264-1Primary Throttle Shaft
4955555.019$ 1.71Shaft Spacer
5012750.097$ 14.21Spacer
5147610.092$ 5.71Spring
5234715.014$ 1.41Nut
5412775.053-1Bushing
5545069.030-1Lever
5645041.116-1Lever
5764590.010-1Screw
58Not Serviced-2Washer
5947610.091-1Spring
6064755.016$ 141Screw
6141565.010-1O-Ring
6247600.095$ 2.81Spring
6347600.007$ 3.11Spring
6464625.012$ 10.81Throttle Stop Screw
6541565.001-1O-Ring
6641705.049-1Top Cover Gasket
6710085.042$ 401Shaft
6847600.092-1Pump Loading Spring
6947407.118$ 37.31Diaphragm
7032486.069-1Accelerator Pump Cover
7110140.501$ 1.81Spring Ring
7241565.008$ 1.21O-Ring
73Not Serviced-1Housing
7464695.021$ 2.62Top Cover Screw
7564565.001-4Screw
7643928.06-1ICU Solenoid
7755530.016-1Washer
7858000.019-1Plate
7941565.001-1O-Ring
8074409$ 6.11Idle Jet
8147605.019$ 5.71Spring
8255530.013-1Washer
8334715.016-1Nut
8441640.052$ 4.11Auto Choke Body Gasket
85Not Serviced-1Water Choke Element
8652135.029$ 3.31Choke Lock Ring
8764615.005-3Screw
8841530.002$ 21Gasket
8964610.008-1Screw
9032444.011-1Water Choke Cover
9141555.001-1Water Cover Gasket
9245046.037-1Choke Actuating Lever
9364560.004-3Screw
9464895.010-1Screw
9541565.010-1O-Ring
9632384.039$ 43.31Screw
9747600.092-1Pump Loading Spring
98Not Serviced-1Diaphragm
9964010.034-1Throttle Valve
10010015.274$ 14.11Shaft
10164525.003-2Choke Plate Fixing Screw
10261070.002$ 4.11Dust Seal Plug
10352135.018$ 4.11Dust Seal Plate
10464700.005-6Top Cover Fixing Screw
10555510.034-2Carb Washer
