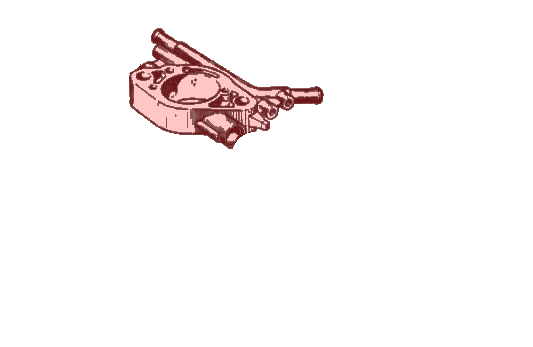

WEBER 32 DIR 38 parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
131716.185-1Top Cover
264700.005-5Top Cover Fixing Screw
364010.006$ 12.22Choke Plate
464525.003-4Choke Plate Fixing Screw
561287.012-1Choke Rod
610020.215-1Choke Shaft
761070.002$ 3.22Dust Seal Plug
852135.010$ 3.22Dust Seal Plate
971120.350-2Auxiliary Venturi
1064290.015-1Valve
1176227-1Pump Jet
1241540.014$ 2.72Pump Jet Gasket
1377201$ 3.42Air Corrector Jet
1461440$ 15.62Emulsion Tube
1574403$ 41Idle Jet
1652570.005$ 9.91Idle Jet Holder
1747610.056$ 5.61Spring
1861285.025-1Rod
1934705.002-1Nut
2064905.001-1Screw
2145138.012-1Lever Assembly Including
2234715.006-1Nut
2345136.056-1Lever
2464595.009-1Screw
2512775.058-1Bushing
2664700.012$ 3.21Lever Fixing Screw
2747610.056$ 5.61Spring
2845202.085-1Lever Assembly Including
2945202.084-1Lever
3064615.004-1Screw
3112775.057-1Bushing
3264700.012$ 3.21Lever Fixing Screw
3334715.014$ 1.11Throttle Shaft Fixing Nut
3455520.002$ 1.11Shaft Lock Tab
3547605.034-1Spring
3634705.001-1Fixing Nut
3755525.001-1Spring Washer
3855510.046$ 2.41Washer For Loose Lever
3945032.013$ 9.71Lever
4064605.017$ 1.81Choke Cable Clamp
4145041.089-1Carb Lever
4245027.112-1Lever
4355510.061$ 2.41Washer For Loose Lever
4445069.021-1Lever
4512765.002-1Spacer Bushing
4664595.005$ 10.31Screw For Secondary Throttle
4745138.011-1Lever Assembly Including
4845136.055-1Lever
4947600.007$ 2.51Spring
5064625.006-1Screw
5147610.012$ 51Spring
5255555.001$ 2.21Shaft Spacer
5339152.014-1Base Spacer Gasket
5439166.001-1Heated Base
5564695.021$ 2.51Screw
5641565.008-1O-Ring
5764700.020-2Screw
5857804.065-1Cold Start Unit Including
5961015.003-1Plug
6064595.005$ 10.31Screw
6157804.023-1Starting Device
6247600.003$ 6.31Spring
6347407.065$ 68.31Diaphragm
6432382.011-1Cold Start Cover
6564700.004$ 3.23Fixing Screw
6610140.501$ 1.81Spring Ring
6745027.114-1Lever
6841565.002-1O-Ring
6910140.501$ 1.81Clip
7055510.034-1Washer
7158000.006$ 2.11Cup Washer
7247600.007$ 2.51Spring
7364750.042-1Mixture Screw
7447600.107$ 9.91Accelerator Pump Spring
7547407.261$ 10.61Pump Diaphragm
7632486.019-1Accelerator Pump Cover
7764700.004$ 3.24Fixing Screw
7864520.023-4Fixing Screw
7964005.090$ 17.22Throttle Valve
8010015.505-1Primary Throttle Shaft
8110015.479-1Secondary Throttle Shaft
8264900.001$ 11.91Pump Discharge Blanking Needle
8341015.004$ 58.71Brass Float
8452000.015$ 21Float Pin
8579519-1Needle & Seat
8683102.070-1Needle Valve Gasket
87Not Available-1Valve
8837022.010$ 5.61Fuel Filter
8961002.018$ 11.91Strainer Inspection Plug
9073801$ 4.22Main Jet
9143840.001-1Idle Cut Off Solenoid Unit Including
9274407-1Idle Jet
9352352.001-1Needle
9441565.013-1Gasket
9543846.001-1Idle Cut Off Solenoid Unit Including
9647670.008-1Spring
9761280.094-1Rod
9834715.006-1Nut
9955530.007-1Washer
10045129.012-1Lever
