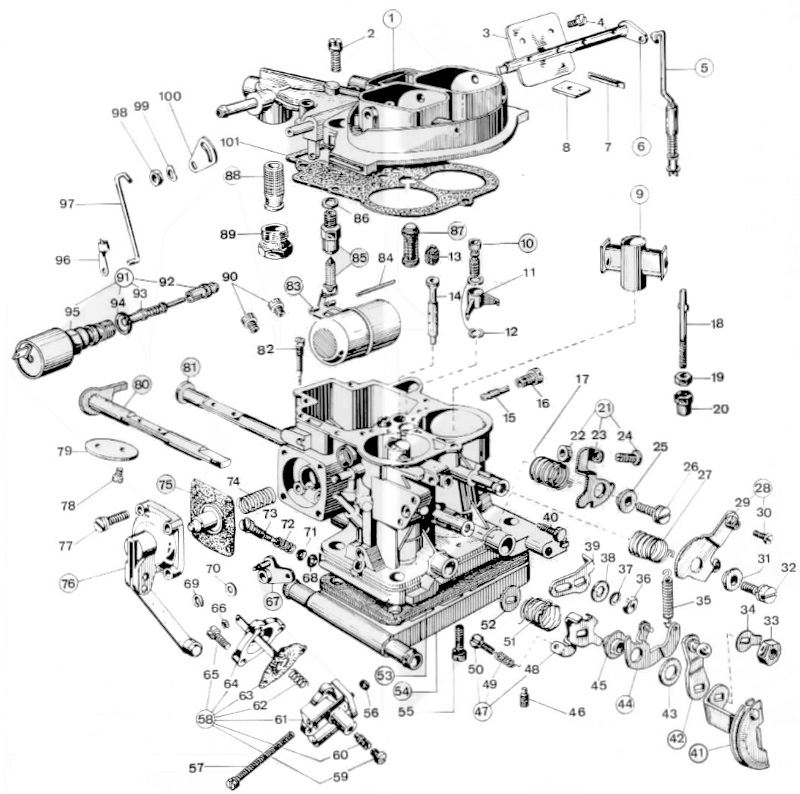

WEBER 32 DIR 38 parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
131716.185$ 01Top Cover
264700.005$ 0.65Top Cover Fixing Screw
364010.006$ 11.82Choke Plate
464525.003$ 04Choke Plate Fixing Screw
561287.012$ 01Choke Rod
610020.215$ 01Choke Shaft
761070.002$ 3.42Dust Seal Plug
852135.010$ 3.42Dust Seal Plate
971120.350$ 02Auxiliary Venturi
1064290.015$ 01Valve
1176227$ 01Pump Jet
1241540.014$ 2.62Pump Jet Gasket
1377201$ 3.42Air Corrector Jet
1461440$ 16.22Emulsion Tube
1574403$ 41Idle Jet
1652570.005$ 7.21Idle Jet Holder
1747610.056$ 5.41Spring
1861285.025$ 01Rod
1934705.002$ 01Nut
2064905.001$ 01Screw
2145138.012$ 01Lever Assembly Including
2234715.006$ 01Nut
2345136.056$ 01Lever
2464595.009$ 01Screw
2512775.058$ 01Bushing
2664700.012$ 3.11Lever Fixing Screw
2747610.056$ 5.41Spring
2845202.085$ 01Lever Assembly Including
2945202.084$ 01Lever
3064615.004$ 01Screw
3112775.057$ 01Bushing
3264700.012$ 3.11Lever Fixing Screw
3334715.014$ 1.11Throttle Shaft Fixing Nut
3455520.002$ 1.11Shaft Lock Tab
3547605.034$ 01Spring
3634705.001$ 0.91Fixing Nut
3755525.001$ 01Spring Washer
3855510.046$ 2.51Washer For Loose Lever
3945032.013$ 9.31Lever
4064605.017$ 21Choke Cable Clamp
4145041.089$ 01Carb Lever
4245027.112$ 01Lever
4355510.061$ 2.51Washer For Loose Lever
4445069.021$ 01Lever
4512765.002$ 01Spacer Bushing
4664595.005$ 101Screw For Secondary Throttle
4745138.011$ 01Lever Assembly Including
4845136.055$ 01Lever
4947600.007$ 2.61Spring
5064625.006$ 01Screw
5147610.012$ 4.81Spring
5255555.001$ 2.11Shaft Spacer
5339152.014$ 01Base Spacer Gasket
5439166.001$ 01Heated Base
5564695.021$ 2.51Screw
5641565.008$ 0.91O-Ring
5764700.020$ 02Screw
5857804.065$ 01Cold Start Unit Including
5961015.003$ 01Plug
6064595.005$ 101Screw
6157804.023$ 01Starting Device
6247600.003$ 6.11Spring
6347407.065$ 661Diaphragm
6432382.011$ 01Cold Start Cover
6564700.004$ 3.23Fixing Screw
6610140.501$ 1.71Spring Ring
6745027.114$ 01Lever
6841565.002$ 0.41O-Ring
6910140.501$ 1.71Clip
7055510.034$ 0.41Washer
7158000.006$ 2.21Cup Washer
7247600.007$ 2.61Spring
7364750.042$ 01Mixture Screw
7447600.107$ 9.91Accelerator Pump Spring
7547407.261$ 111Pump Diaphragm
7632486.019$ 01Accelerator Pump Cover
7764700.004$ 3.24Fixing Screw
7864520.023$ 34Fixing Screw
7964005.090$ 17.92Throttle Valve
8010015.505$ 01Primary Throttle Shaft
8110015.479$ 01Secondary Throttle Shaft
8264900.001$ 11.91Pump Discharge Blanking Needle
8341015.004$ 56.71Brass Float
8452000.015$ 1.91Float Pin
8579519$ 01Needle & Seat
8683102.070$ 0.31Needle Valve Gasket
87Not Available$ 01Valve
8837022.010$ 5.81Fuel Filter
8961002.018$ 11.91Strainer Inspection Plug
9073801$ 4.22Main Jet
9143840.001$ 01Idle Cut Off Solenoid Unit Including
9274407$ 01Idle Jet
9352352.001$ 01Needle
9441565.013$ 01Gasket
9543846.001$ 01Idle Cut Off Solenoid Unit Including
9647670.008$ 01Spring
9761280.094$ 01Rod
9834715.006$ 01Nut
9955530.007$ 01Washer
10045129.012$ 01Lever
