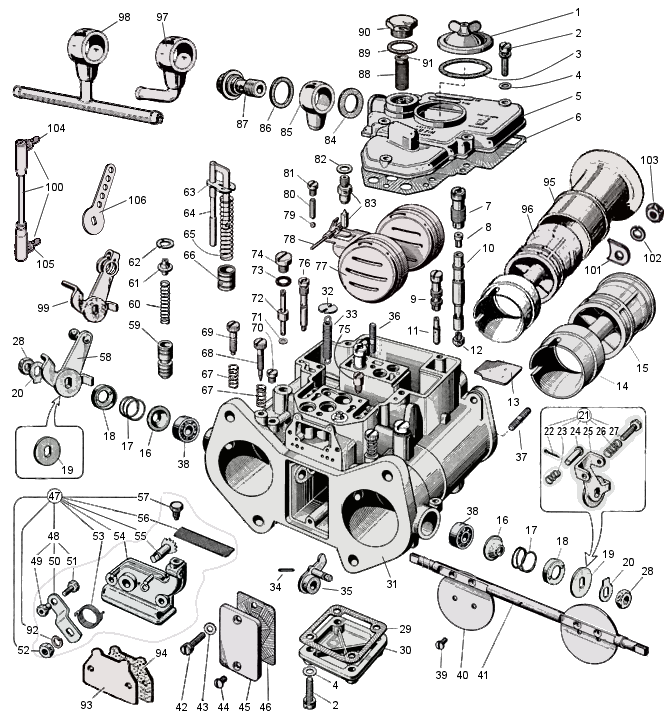

WEBER 40 DCOE early type parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
132376.003$ 15.21Jet Cover
264700.001-5Cover Screw
341550.002$ 1.41Gasket
455510.034-5Washer
531734.197$ 63.11Carb Top Cover
641715.011$ 3.31Carb. Cover Gasket
752580.001$ 9.22Emulsion Tube Holder
877401$ 6.32Air Corrector Jet
952585.006$ 10.82Idle Jet Holder
1061450$ 36.32Emulsion Tube
1174800$ 4.12Idle Jet
1273401$ 5.42Main Jet
1352130.003$ 3.31Plate
1472302$ 18.42Choke Tube 40DCOE
1570001-2Auxiliary Venturi early - bolton air horns
1641570.001$ 1.42Dust Cover
1747600.063$ 2.62Spring
1858000.007$ 3.82Retaining Cover
1955555.010$ 3.31Washer
2055520.004$ 1.42Lock washer
2145048.149$ 301Balance lever
2232610.002-1Split pin
2347600.093$ 3.11Spring
2452010.097-1Pin
2545041.147-1Balance lever
2647600.094$ 3.11Spring
2755520.004$ 1.41Screw
2834710.003$ 1.42Shaft Nut
2941640.001$ 5.11Gasket
3032374.008$ 23.61Bottom Bowl Cover
31-1Carburetor Body
3252210.006$ 2.11Spring Anchor Plate
3347605.027$ 3.21Throttle Return Spring
3458445.001-1Pin
3545082.005$ 19.81Pump Control Lever
3664955.007$ 13.51Stud
3764955.101$ 25.11Stud
3832650.001$ 6.62Throttle Shaft Bearing
3964570.006$ 4.14Throttle Plate Screw
4064005.059$ 17.42Throttle Plate 40 DCOE
4110005.401$ 48.31Throttle Shaft 40 DCOE
4264700.004$ 42Cold Start Fixing Screw
4355510.038-2Flat Washer
4464570.009$ 12Flat Fixing Screw
4552135.024$ 8.31Inspection plate
4641640.021$ 1.61Inspection plate Gasket
4732556.002$ 43.41Cold Start Unit
4845027.003-1Lever Assy.
4934720.002$ 7.71Nut
5045025.029$ 8.61Lever
5164800.002$ 8.71Wire screw
5234715.010-1Nut
5347610.006$ 12.41Return Spring
5432556.001-1Cold Start Unit Body
5510085.003$ 8.61Shaft
5637000.016$ 7.61Filter Screen
5764605.017$ 21Fixing Bolt
5845041.009$ 401Lever
5964330.003$ 11.72Starter Valve
6047600.005$ 2.62Starter Valve Spring
6112775.004$ 5.82Spring Retainer
6210140.010$ 4.42Spring Washer
6352140.004$ 4.81Pump Screen retainer
6410410.015$ 11.71Pump Rod
6547600.064$ 9.21Pump Spring
6658602.003$ 12.41Pump Plunger
6747600.007$ 3.12Idle Screw Spring
6864750.001$ 5.12Idle Mixture Screw
6964625.012$ 10.81Throttle stop screw
7061015.002$ 102Progression Hole Plug
7141535.021$ 1.42Pump Gasket
7276801$ 9.32Pump Jet
7341565.009-2Pump Cover Seal
7461015.008$ 152Pump Cover
7579701$ 13.21Inlet Valve With Exhaust
7675605$ 202Starter Jet
7741030.005$ 41.61Float
7852000.001$ 3.21Float Fulcrum Pin
7958300.001$ 1.62Pump Valve Ball
8052730.001$ 6.62Stuffing Ball
8161015.006$ 6.62Retaining Screw
8283102.120-1Needle Valve Gasket
8379503$ 15.91Needle Valve
8441530.031-1Fuel Union Gasket
8510534.019-1Fuel Union Blank
8641530.024-1Outer Fuel Union Gasket
8712715.008$ 11.41Fuel Union Bolt
8837022.010$ 7.11Fuel Filter
8941530.024-1Gasket
9061002.010$ 8.71Filter Cover
9112775.026$ 3.41Plug
9255525.010-1Washer
9352135.008$ 6.21Blanking plate
94ST2283$ 1.61Blanking plate gasket
9552840.012$ 232Air horn
9670003.450$ 74.12Auxiliary Venturi with clip - slide in air horns
9710536.035$ 13.31Fuel Union L pipe
9810536.034$ 231Fuel inlet T pipe
9945048.007$ 171Throttle lever
100ST2559$ 241Rod with ball ends
10152150.012$ 1.64Air horn Tab
10255525.010-4Spring Washer
10334705.004-4Air horn fixing nut
104ST2460$ 8.31Ball end Left thread
105ST1937$ 8.31Ball end Right thread
106ST1936$ 101Universal lever
