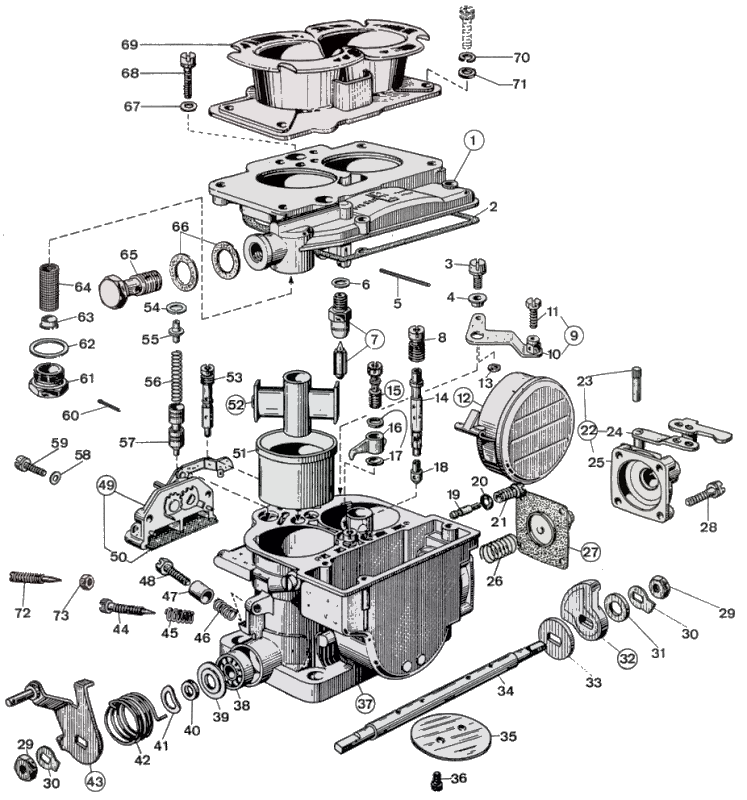

WEBER 40 DCOE early type parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
132376.003$ 13.91Jet Cover
264700.001$ 0.65Cover Screw
341550.002$ 1.11Gasket
455510.034$ 0.45Washer
531734.197$ 91.11Carb Top Cover
641715.011$ 2.61Carb. Cover Gasket
752580.001$ 7.32Emulsion Tube Holder
877401$ 52Air Corrector Jet
952585.006$ 8.62Idle Jet Holder
1061450$ 28.32Emulsion Tube
1174800$ 3.22Idle Jet
1273401$ 4.22Main Jet
1352130.003$ 2.61Plate
1472302$ 14.52Choke Tube 40DCOE
1570001$ 02Auxiliary Venturi early - bolton air horns
1641570.001$ 1.12Dust Cover
1747600.063$ 22Spring
1858000.007$ 2.92Retaining Cover
1955555.010$ 2.61Washer
2055520.004$ 1.12Lock washer
2145048.149$ 23.81Balance lever
2232610.002$ 0.11Split pin
2347600.093$ 2.41Spring
2452010.097$ 0.61Pin
2545041.147$ 01Balance lever
2647600.094$ 2.41Spring
2755520.004$ 1.11Screw
2834710.003$ 1.12Shaft Nut
2941640.001$ 41Gasket
3032374.008$ 18.71Bottom Bowl Cover
31$ 01Carburetor Body
3252210.006$ 1.61Spring Anchor Plate
3347605.027$ 2.51Throttle Return Spring
3458445.001$ 0.41Pin
3545082.005$ 15.41Pump Control Lever
3664955.007$ 12.71Stud
3764955.101$ 19.81Stud
3832650.001$ 5.22Throttle Shaft Bearing
3964570.006$ 3.34Throttle Plate Screw
4064005.059$ 12.52Throttle Plate 40 DCOE
4110005.401$ 38.31Throttle Shaft 40 DCOE
4264700.004$ 3.22Cold Start Fixing Screw
4355510.038$ 02Flat Washer
4464570.009$ 0.82Flat Fixing Screw
4552135.024$ 6.61Inspection plate
4641640.021$ 1.31Inspection plate Gasket
4732556.002$ 33.71Cold Start Unit
4845027.003$ 01Lever Assy.
4934720.002$ 9.21Nut
5045025.029$ 01Lever
5164800.002$ 01Wire screw
5234715.010$ 01Nut
5347610.006$ 9.91Return Spring
5432556.001$ 01Cold Start Unit Body
5510085.003$ 01Shaft
5637000.016$ 5.91Filter Screen
5764605.017$ 1.91Fixing Bolt
5845041.009$ 31.71Lever
5964330.003$ 9.22Starter Valve
6047600.005$ 22Starter Valve Spring
6112775.004$ 4.62Spring Retainer
6210140.010$ 3.42Spring Washer
6352140.004$ 3.71Pump Screen retainer
6410410.015$ 9.21Pump Rod
6547600.064$ 7.31Pump Spring
6658602.003$ 9.91Pump Plunger
6747600.007$ 2.42Idle Screw Spring
6864750.001$ 42Idle Mixture Screw
6964625.012$ 8.61Throttle stop screw
7061015.002$ 7.92Progression Hole Plug
7141535.021$ 1.22Pump Gasket
7276801$ 7.42Pump Jet
7341565.009$ 0.62Pump Cover Seal
7461015.008$ 11.92Pump Cover
7579701$ 10.41Inlet Valve With Exhaust
7675605$ 15.82Starter Jet
7741030.005$ 451Float
7852000.001$ 2.51Float Fulcrum Pin
7958300.001$ 1.32Pump Valve Ball
8052730.001$ 5.22Stuffing Ball
8161015.006$ 5.22Retaining Screw
8283102.120$ 0.31Needle Valve Gasket
8379503$ 12.51Needle Valve
8441530.031$ 0.31Fuel Union Gasket
8510534.019$ 01Fuel Union Blank
8641530.024$ 0.31Outer Fuel Union Gasket
8712715.008$ 91Fuel Union Bolt
8837022.010$ 5.51Fuel Filter
8941530.024$ 0.31Gasket
9061002.010$ 6.81Filter Cover
9112775.026$ 3.21Plug
9255525.010$ 0.41Washer
9352135.008$ 51Blanking plate
94ST2283$ 1.31Blanking plate gasket
9552840.012$ 17.92Air horn
9670003.450$ 50.12Auxiliary Venturi with clip - slide in air horns
9710536.035$ 10.61Fuel Union L pipe
9810536.034$ 18.21Fuel inlet T pipe
9945048.007$ 13.21Throttle lever
100ST2559$ 291Rod with ball ends
10152150.012$ 1.24Air horn Tab
10255525.010$ 0.44Spring Washer
10334705.004$ 0.64Air horn fixing nut
104ST2460$ 6.61Ball end Left thread
105ST1937$ 6.61Ball end Right thread
106ST1936$ 7.91Universal lever
