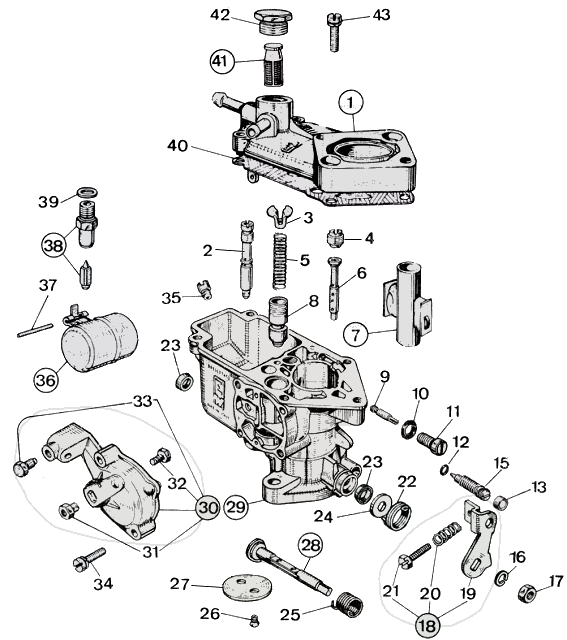

WEBER 28 IMB parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
131706.067-1Carburettor cover
275605.090$ 151Choke jet
352030.003$ 5.81Spring retainer and guide
477201.190$ 4.31Air bleed jet
547600.086$ 2.61Spring
661440.212$ 19.81Emulsion well
771122.400-1Auxiliary venturi
864330.005-1Starter valve
974405.050$ 5.11Idle jet
1041555.004-1Seal
1152570.005$ 12.41Idle jet holder
1241565.010-1Seal
1361075.013$ 7.21Dust cover
14-1-
1564750.052-1Idle adjustment screw
1655525.001-1Washer
1734705.001$ 11Nut
1845041.006-1Throttle lever assembly
1945039.008-1Throttle lever
2047600.084$ 61Spring
2164625.003-1Throttle adjusting screw
2247610.004$ 5.71Spring
2355555.013-1Dust & air seal
2455555.013-1Metal washer
2547610.044$ 5.71Spring
2664570.005$ 3.42Screw
2764005.051$ 21.31Throttle butterfly valve
2810015.437$ 56.91Throttle spindle
29-1Carburettor body
3032536.022-1Starter device
3134720.002$ 7.61Nut
3264800.002$ 8.71Sector shaft
3364605.017$ 21Cable retaining screw
3464700.006-2Screw
3573801.115$ 5.41Main jet
3641015.002-1Float
3752000.010$ 2.51Fulcrum pin
3879405.125-1Needle valve
3983102.070-1Alloy spacer
4041700.025-1Gasket
4137022.002$ 7.41Fuel filter
4261002.010$ 8.71Fuel filter inspection plug
4364700.005-4screw

WEBER 28 IMB
Exploded view
https://www.carbparts.euPrices and product availability are subject to change

WEBER 28 IMB
List of parts
https://www.carbparts.euPrices and product availability are subject to change
NoPart NoPricePcsDescription
131706.067-1Carburettor cover
275605.090$ 151Choke jet
352030.003$ 5.81Spring retainer and guide
477201.190$ 4.31Air bleed jet
547600.086$ 2.61Spring
661440.212$ 19.81Emulsion well
771122.400-1Auxiliary venturi
864330.005-1Starter valve
974405.050$ 5.11Idle jet
1041555.004-1Seal
1152570.005$ 12.41Idle jet holder
1241565.010-1Seal
1361075.013$ 7.21Dust cover
14-1-
1564750.052-1Idle adjustment screw
1655525.001-1Washer
1734705.001$ 11Nut
1845041.006-1Throttle lever assembly
1945039.008-1Throttle lever
2047600.084$ 61Spring
2164625.003-1Throttle adjusting screw
2247610.004$ 5.71Spring

NoPart NoPricePcsDescription
2355555.013-1Dust & air seal
2455555.013-1Metal washer
2547610.044$ 5.71Spring
2664570.005$ 3.42Screw
2764005.051$ 21.31Throttle butterfly valve
2810015.437$ 56.91Throttle spindle
29-1Carburettor body
3032536.022-1Starter device
3134720.002$ 7.61Nut
3264800.002$ 8.71Sector shaft
3364605.017$ 21Cable retaining screw
3464700.006-2Screw
3573801.115$ 5.41Main jet
3641015.002-1Float
3752000.010$ 2.51Fulcrum pin
3879405.125-1Needle valve
3983102.070-1Alloy spacer
4041700.025-1Gasket
4137022.002$ 7.41Fuel filter
4261002.010$ 8.71Fuel filter inspection plug
4364700.005-4screw
