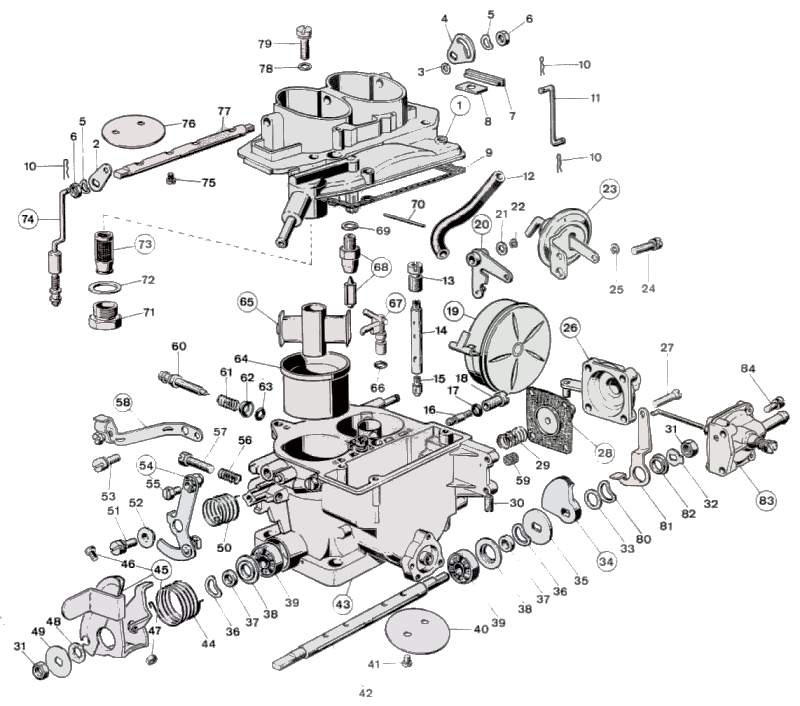

WEBER 32/36 DGAV 4 parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
131716.711$ 01TOP COVER ASSY including:
257804.123$ 14.91— Power valve diaphragm
355510.038$ 03— Washer
464700.007$ 03— Power valve fixing screw
561002.018$ 6.71— Strainer inspection plug
637022.002$ 5.51— Strainer
710140.501$ 1.61Lock ring
852135.018$ 3.11Dust seal plate
961070.002$ 3.11Dust seal plug
1083102.070$ 1.71Needle valve gasket
1179516.200$ 8.11Needle valve
1241030.020$ 18.11Float
1364235.016$ 14.91Full power needle valve
1441530.013$ 01Full power valve gasket
1564900.001$ 7.91Pump discharge blanking screw
1673801.132$ 61Primary main jet
1673801.140$ 3.11Secondary main jet
1747600.092$ 01Pump loading screw
1847407.048$ 8.11Pump diaphragm
1912750.085$ 2.94Shaft retaining bush
2047600.027$ 44Bush retaining spring
2164005.034$ 16.71Secondary throttle valve
2210015.492$ 01Secondary main shaft
2310015.493$ 01Primary main shaft
2464005.090$ 16.71Primary throttle valve
2564520.023$ 2.94Throttle valve fixing screw
2647610.079$ 5.21Primary main shaft return spring
2712765.047$ 01Spacer
2864565.001$ 04Pump cover fixing screw
2932486.076$ 01Pump cover
3052570.006$ 6.82Idle jet holder
3141565.002$ 0.41Idle jet holder « 0 » Ring seal
3274403.045$ 3.11Secondary idle jet
3274403.045$ 3.11Primary idle jet
3364700.008$ 5.83Auto-choke body fixing screw
3441640.052$ 3.11Heat seal gasket
3557804.138$ 01Thermostat housing
3652135.006$ 2.51Thermostat housing locking ring
3741555.001$ 0.41Water cover seal gasket
3832444.005$ 58.71Water cover
3941530.002$ 1.81Water cover screw gasket
4064610.014$ 6.81Water cover fixing screw
4164615.005$ 03Lock ring fixing screw
4257804.265$ 291AUTO-CHOKE ASSY including:
4364590.004$ 51— Fast idle lever adjusting screw
4447600.007$ 2.41— Spring
4541565.008$ 0.81— Auto-choke body « 0 » ring seal
4647407.162$ 19.91— Choke diaphragm
4747600.141$ 3.71— Diaphragm loading spring
4832384.045$ 01— Diaphragm cover
4964595.022$ 01— Diaphragm adjusting screw
5064560.004$ 03— Diaphragm cover fixing screw
5161075.011$ 01Screw plug
5232610.005$ 1.51Split pin
5361280.082$ 81Fast idle control rod
5441565.010$ 01Idle mixture screw « 0 » ring seal
5564750.051$ 12.61Idle mixture adjusting screw
5661075.013$ 6.51Idle mixture tamper proof plug
5745136.029$ 16.41Main lever
5855510.061$ 2.31Spacer
5912765.002$ 01Free lever bush
6045046.016$ 01Throttle valve control lever
6164595.005$ 9.61Secondary throttle adjusting screw
6264585.007$ 01Primary throttle adjusting screw
6347600.007$ 2.41Primary throttle adjusting screw spring
64$ 01Main body
6545032.124$ 10.71Secondary throttle control lever
6655510.046$ 2.31Washer
6755525.001$ 01Spring washer
6834705.001$ 0.81Secondary shaft fixing nut
6945069.011$ 01Free lever
7055520.002$ 11Primary shaft lock washer
7134715.014$ 11Primary shaft fixing nut
7245605.010$ 01Free lever return spring
7361400.022$ 01Pneumatic pump connecting pipe
7432486.075$ 51.91Pneumatic pump cover
7547600.233$ 01Pneumatic pump loading spring
7647407.115$ 8.11Pneumatic pump diaphragm
7761440.220$ 15.11Primary emulsion tube
7761440.220$ 15.11Secondary emulsion tube
7852000.015$ 1.91Float pivot
7941705.040$ 2.61Top cover gasket
8077201.175$ 3.11Primary air correction jet
8077201.125$ 3.11Secondary air correction jet
8141530.012$ 02Pump jet gasket
8276212.045$ 11.91Pump jet
8364565.001$ 04Pneumatic pump cover fixing screw
8464290.017$ 01Pump delivery valve
8570936.350$ 01Primary auxiliary venturi
8570936.450$ 01Secondary auxiliary venturi
8664700.001$ 0.66Top cover fixing screw
8710525.023$ 43Inlet pipe
