WEBER 35 DCNL 2/3 parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription

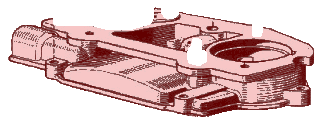

16905a$ 01Carburetor cover
264955.104$ 02— Stud bolt
3N 74$ 02— Spring washer
434725.004$ 02— Securing nut
564955.009$ 4.94— Stud bolt
6$ 04Washer
741$ 04Spring washer
7$ 04Spring washer
834725.003$ 0.74Fixing nut
9$ 01Spring washer
1034725.004$ 01Fixing nut
1152150.014$ 8.24Plate securing air horn
1234725.003$ 0.74Fixing nut
1352840.022$ 632Air horn
14$ 02Auxiliary Venturi extension pipe
15$ 01Gasket for carburetor cover
1652580.001$ 6.52Emulsioning tube holder
1777401$ 5.5Air corrector jet
1810410.017$ 01Pump control rod
1964290.005$ 26.3Pump delivery valve
2061450$ 02Emulsioning tube
2152140.007$ 6.7Retainer, pump plunger spring
2264955.109$ 0Stud bolt
2377903$ 0Idling jet holder
2447600.103$ 2.31Pump plunger spring
2541540.014$ 2.6Pump jet gasket
2673401$ 3.82Main jet
2741165.252$ 02
2841252.009$ 02Pump jet
2958602.004$ 01Pump plunger
3079701$ 9.41Intake valve with discharge orifice
31$ 01Throttles shaft
32$ 02Throttle valve
3364520.027$ 0.74Throttles fixing screw
3432650.003$ 02Ball bearing
3541570.001$ 1.12Oust cover
3647600.063$ 2.2Spring
3758000.007$ 3.12Small lid for spring retainer
3845034.053$ 01Throttles control lever
3955520.004$ 1.12Lock washer
4034710.003$ 1.12Fixing nut
4147600.007$ 2.62Spring for throttles adj. screw
4138$ 01Spring for throttles adj. screw
4264625.012$ 7.71Throttles adjusting screw
4358445.001$ 0.51Spring pin
4445082.013$ 01Pump control lever
4561015.001$ 10.12Progression orifices inspection screw
4641015.008$ 01Float
4741530.017$ 0Gasket for float fulcrum screw
4864900.010$ 01Float fulcrum screw
48TS 685**$ 01Float fulcrum screw
4945028.040$ 01Shaft return lever
5047605.018$ 01Shaft return spring
5152010.036$ 01Spring retainer
5264750.001$ 3.62Idling mixture adjusting screw
5364955.029$ 04Stud bolt
54$ 02Choke
55$ 02Auxiliary Venturi
5679504$ 17.81Needle valve
5741530.049$ 01Needle valve gasket

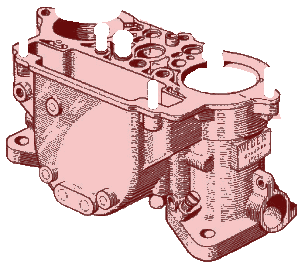

58—$ 01CARBURETOR BODY
5975605$ 14.32Starting jet
6064330.003$ 8.32Starting valve
6147600.005$ 2.22Spring for valve
6212775.004$ 4.22Spring guide and retainer
6310140.010$ 3.62Circlip
6455525.010$ 0.51— Spring washer
65$ 01Throttles control lever
66$ 01Starting control
67$ 01— Starter control lever
6864800.002$ 01— Screw securing wire
6945025.043$ 01— Starting control lever
7034720.002$ 8.31— Nut for screw
7110085.009$ 01— Starting shaft
7232556.006$ 01— Sheath support cover
7347610.042$ 8.91Lever return spring
7464605.017$ 21— Screw securing sheath
7534715.010$ 01Lever fixing nut
7637000.016$ 5.31— Strainer
7755510.038$ 02— Washer
7864700.004$ 2.92— Fixing screw
79—$ 01CARBURETOR BODY
8052135.008$ 4.51Plate
81$ 02Fixing screw
8255525.010$ 0.52Spring washer

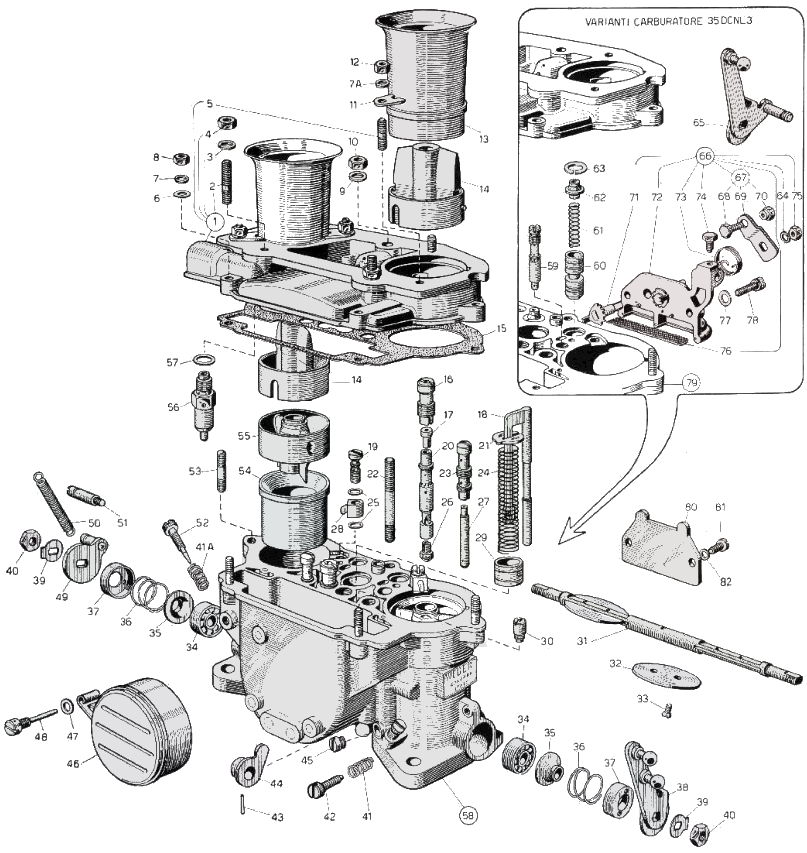

WEBER 35 DCNL 2/3 - exploded view
