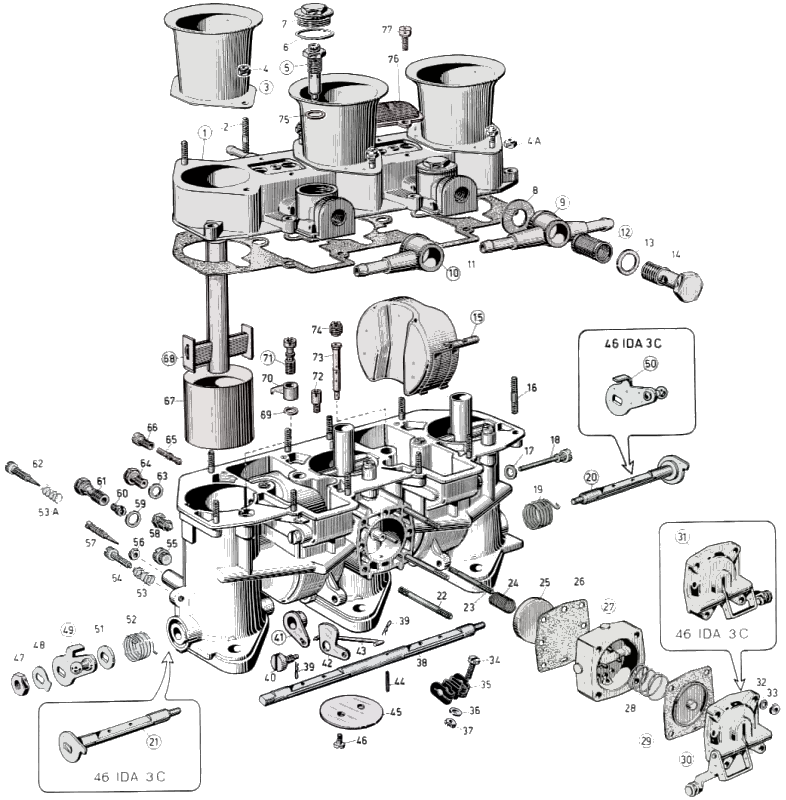

WEBER 46 IDA 3C parts diagram


 - clicca su una parte per saperne di più

Elenco delle parti:

NoNumero di partePrezzoPzDescrizione
131726.001-1Carburetor cover including
264955.014-6Stud
352845.006-3Air intake
4-A34725.003-10Nut
434725.003-6Nut
564240.009$ 21.12Needle valve
641530.035-2Gasket
761002.005$ 112Plug
841530.004-2Gasket
910356.005$ 42.81Filter Body
1010356.002$ 42.81Filter Body
1141710.001$ 11.21Gasket
1237022.001$ 23.12Filter Gauze
1341530.001-2Gasket
1412715.014$ 14.32Plug
1541015.007$ 34.82Float
1664955.012-10Stud
1741530.017-2Gasket
1864900.012$ 27.52Fulcrum screw
1947610.072$ 4.51Spring
2010016.442-1Spindle oversize - 46 IDA 3C1 .
2010015.458-1Spindle 46 IDA 3C1
2110016.443-1Spindle oversize - 45 IDA 3C
2110015.457-1Spindle 46 IDA 3C
2264955.011-2Stud
2364955.017-2Stud
2447600.128-1Spring
2564190.004-1Pump valve
2647405.011$ 2.11Diaphragm
2739174.002-1Pump Body
2847600.012-1Spring
2947407.010$ 29.81Diaphragm
3032486.009-1Pump Cover - 46 IDA 3C1
3132486.010-1Pump Cover - 46 IDA 3C
3255525.007$ 14Spring washer
3334705.002-4Nut
3464615.006-2Screw
3532270.001-1Elastic joint
3655510.038-2Flat washer
3734705.002-2Nut
3810005.412-1Spindle
3810006.408-1Spindle oversize
3932610006-2Spilt pin
4064895.002$ 10.31Fulcrum screw
4145027.007-1Lever
4214855.003-1Cam
4361280.031-1Tie rod
4458445.001-1Spring pin
4564005.006-3Throttle
4664520.027-6Screw
4734715.014$ 1.11Nut
4855520.002$ 1.11Washer
4945034.007$ 35.11Control Lever - 46 IDA 3C1
5045034.011-1Control Lever - 46 IDA 3C
5155555.019$ 1.71Washer
5247610.071$ 4.51Spring
5347600.007$ 2.61Spring
53-A47600.007$ 2.63Spring
5464590.002$ 2.31Throttle adjusting screw
5561015.009$ 8.73Progression hole inspection screw
5634705.001-3Nut
5764750.002$ 10.83Air adjusting screw
5864840.001-3Choke fixing screw
5941540.001$ 23Gasket
6041120.001$ 4.93Main jet
6152590.001$ 113Jet holder
6264750.001$ 4.43Idling mixture adjusting screw
6341530.008-2Gasket
6461002.006$ 52Plug
6541160.003$ 3.43Idling jet
6652570.005$ 10.83Jet-holder
6734894.004-3Choke
6831966.004-3Secondary Venturi
6941530.012-3Gasket
7041252.001$ 133Pump jet
7164290.005$ 34.53Delivery valve
7264290.001$ 10.31Intake valve
7361440.213$ 133Emulsioning tube
7441360.001$ 3.43Air corrector jet
7541530.022-2Gasket
7637012.003-2Filter element
7764700.007-4Screw
