| No | Part No | Price | Pcs | Description |
| 1 | TS 715 | $ 0 | 1 | Needle valve seat inspection tap |
| 2 | G 97 | $ 0 | 1 | Gasket, needle valve inspection tap |
| 3 | TS 1407a | $ 0 | 1 | Needle valva seat |
| 4 | 233 | $ 0 | 1 | Gasket for needle valve seat |
| 5 | 3291a | $ 0 | 1 | Carburetor cover |
| 6 | TS 504 | $ 0 | 1 | Retainer pump piston spring |
| 6 | TS 673 | $ 0 | 1 | Gasket for carburetor cover |
| 7 | 5381a | $ 0 | 1 | Pump control shaft |
| 9 | 2880 | $ 0 | 1 | Pump piston spring |
| 10 | 5383 | $ 0 | 1 | Nut for adjusting screw |
| 11 | 5382 | $ 0 | 1 | Adjusting screw |
| 12 | TS 631 | $ 0 | 1 | Pump piston |
| 13 | TS 676a | $ 0 | 1 | Carburetor body, complete including: |
| 14 | 1366 | $ 0 | 6 | — Stud bolt securing carburetor cover |
| 15 | TS 549 | $ 0 | 1 | — Shaft return spring |
| 16 | 2167 | $ 0 | 1 | — Spring washer |
| 17 | 5387a | $ 0 | 1 | — Pump control lever for right side carburetor |
| 18 | 5390a | $ 0 | 1 | — Throttles and pump control lever for left side carburetor |
| 19 | 2464 | $ 1.7 | 1 | — Lock washer |
| 20 | 865 | $ 0 | 1 | — Fixing nut |
| 21 | 3718 | $ 1.3 | 4 | — Throttle fixing screw |
| 22 | TS 555 | $ 0 | 2 | — Throttle |
| 23 | TS 879 | $ 0 | 1 | - Throttle shaft |
| 24 | TS 625 | $ 0 | 2 | Transition holes inspection screw |
| 25 | TS 877 | $ 0 | 1 | Float bowl exhaust screw plug |
| 26 | 179 | $ 0 | 1 | Gasket for screw plug |
| 27 | TS 575 | $ 0 | 2 | Idling mixture adjusting screw |
| 28 | 970 | $ 0 | 1 | Throttles adjusting screw |
| 29A | 38 | $ 0 | 1 | Spring throttles adjusting screw |
| 29 | 38 | $ 0 | 2 | Spring idling mixture adjusting screw |
| 30 | 5285a | $ 0 | 1 | Throttles control lever for right side carburetor |
| 31 | 4 | $ 0 | 1 | Distance washer for left side carburetor |
| 32 | 2464 | $ 1.7 | 1 | Lock washer |
| 33 | 865 | $ 0 | 1 | Fixing nut |
| 34 | TS 829 | $ 0 | 2 | Float fulcrum screw |
| 35 | 352 | $ 0 | 2 | Gasket for float fulcrum screws |
| 36 | 5379 | $ 0 | 1 | Fuel level inspection plug |
| 37 | 5393 | $ 0 | 1 | Gasket for screw plug |
| 38 | TS868 | $ 0 | 1 | Emulsioning tube holder |
| 38A | TS 868 | $ 0 | 1 | Emulsioning tube holder |
| 39 | TS 877a | $ 0 | 1 | Float |
| 40 | 1520 | $ 0 | 2 | Gasket, pump jet |
| 41 | 3831 | $ 0 | 1 | Pump jet |
| 42 | TS 991a | $ 0 | 1 | Pump delivery valve |
| 43 | TS 866 | $ 0 | 2 | Choke |
| 44 | TS 837a | $ 0 | 2 | Auxiliary Venturi |
| 45 | TS 880 | $ 0 | 1 | Ball stop screw for intake valve |
| 46 | 757 | $ 0 | 1 | Ball pump intake valve |
| 47 | TS 195 | $ 0 | 2 | Main jet |
| 48 | TS 671 | $ 0 | 2 | Emulsioning tube |
| 49 | 969 | $ 0 | 2 | Emulsion tube air corrector jet |
| 50 | TS 1007 | $ 0 | 2 | Idling jet |
| 51 | TS 1157 | $ 0 | 2 | Idting jet holder |
| 52 | 1682 | $ 0 | 1 | Screw securing fuel filter casing |
| 53 | 235 | $ 0 | 1 | Gasket for fuel filter casing |
| 54 | 241a | $ 0 | 1 | Strainer |
| 55 | F 23 | $ 0 | 1 | Fuel filter casing |
| 56 | 236 | $ 0 | 1 | Gasket for fuel filter casing |
| 57 | 1356 | $ 0 | 6 | Washer for cover fixing screw |
| 58 | 41 | $ 0 | 6 | Spring washer for carburetor cover fixing nut |
| 59 | 340 | $ 0 | 6 | Carburetor cover fixing nut |
| 60 | TS 874 | $ 0 | 2 | Auxiliary Venturi extension pipe |
| 61 | TS 878 | $ 0 | 2 | Plate securing extension pipes |
| 62 | TS 819 | $ 0 | 4 | Screw for securing plates |

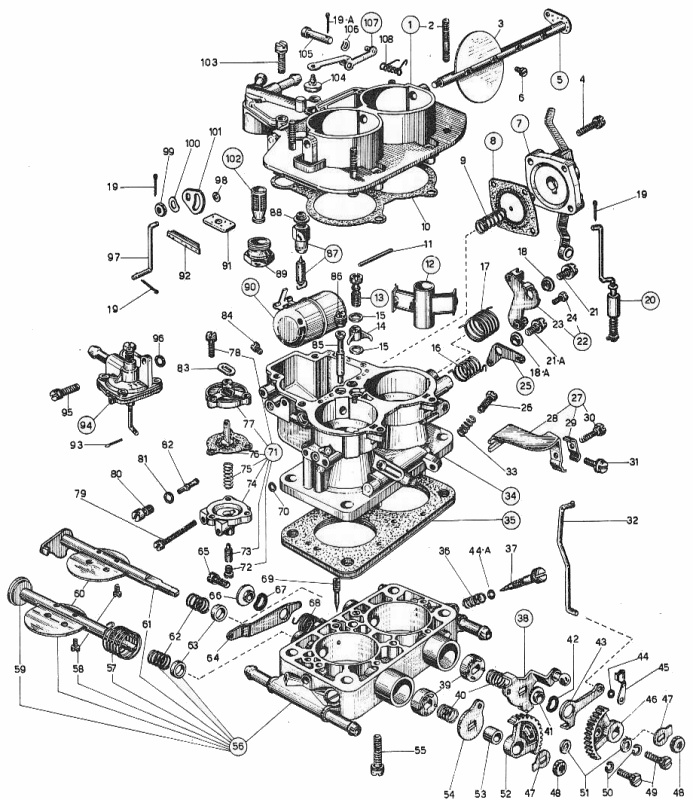

Download exploded view as PDF
