WEBER 26 OC 10 Teileplan


 - Klicken Sie auf ein Teil, um mehr zu sehen

Liste der Teile:

NoTeil Nr.PreisSt.Beschreibung
131736.001-1Carburetor top cover
261002.010$ 7.41Fuel Filter Cover
341530.024-1Fuel Filter Gasket
437022.002$ 6.41Filter element
541535.015-1Needle valve gasket
664235.905-1Float valve
741015.002-1Float
852000.010$ 2.21Float Fulcrum Pin
941715.008-1Carburettor Cover Gasket
1052585.001$ 19.81Idle Jet Holder
1141165.058$ 3.51Idle Jet
12--1Carburetor Body
1364570.005$ 3.42Throttle Plate Screw
1464005.016-1Throttle Valve
1510016.416-1Oversized Throttle Shaft
1510015.425-1Throttle Shaft
1741120.001$ 4.91Main jet
1841540.001$ 21Gasket
1952590.001$ 111Jet Holder
2064895.006-1Choke Tube Fixing Screw
2155525.007$ 11Spring Washer
2234705.004-1Air horn fixing nut
2355525.002-1Spring Washer
2445032.019-1Throttle Valve Control Lever
2547610.006$ 10.81— Lever return spring
2647600.084$ 61— Spring
26A47600.007$ 2.61Idle Mixture Screw Spring
2764755.009-1Idle Mixture Screw
2841200.102-1Starter Jet
2964625.002$ 4.21Throtle Stop Screw
3061440.321$ 16.61Primary Emulsion Tube
3141370.005-1Emulsion tube holder air corrector
3241360.001$ 3.51Air bleed jet
3364370.003-1Starter Valve
3412750.047-1Brass Spacer
35A10140.502$ 2.41Locking Ring
3510140.502$ 2.41Locking Ring
36A55510.036-1Flat Washer
3655510.036-1Flat Washer
3747600.019-1Starter Valve Spring
3864880.004-1Raccordo guida valvola avviamento
3945062 003-1Leva comando valvola avviamento completa di
4064800.002$ 7.61— Screw securing wire
4145062.002-1Choke Lever
4234720.002$ 6.61— Cold Start Nut
4358702.002-1Sheat support Assy. including:
4458702.003-1Choke Cable Bracket
4552145.001-1Sheat securing plate
4664615.007-1- Screw securing wire
4764700.005-3Top Cover Fixing Screw

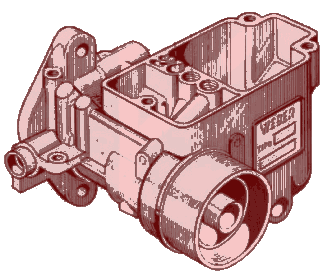

WEBER 26 OC 10

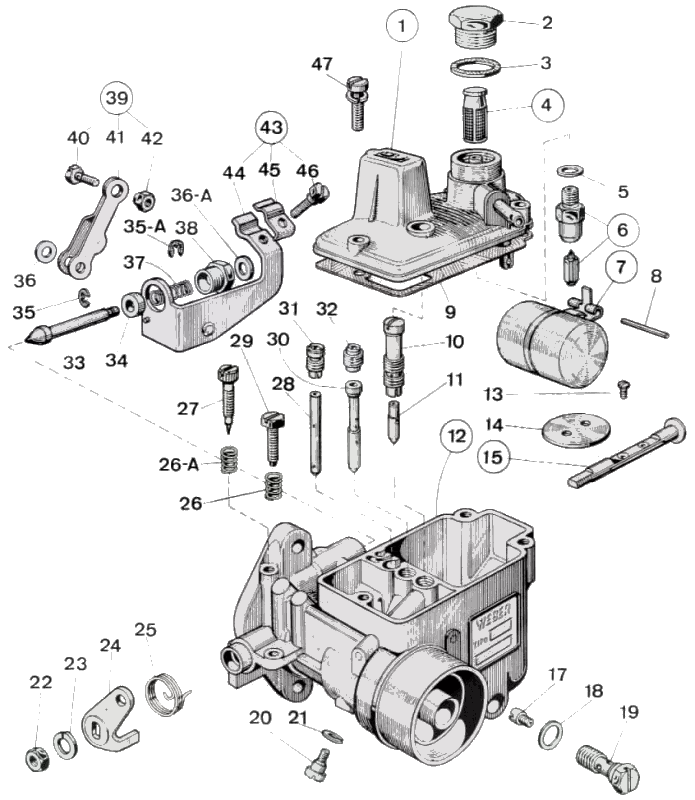

Exploded view
