WEBER 40 DCNL diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
131716.047-1Carburetor Top
264955.104-2Stud
434725.004-2Nut
564955.009$ 5.24Stud
834725.003-4Nut
1034725.004-1Nut
1152150.013$ 1.34Air Horn Tab
1234725.003-4Nut
1352840.015-2Air Horn
1541705.018-1Top Cover Gasket
1652580.001$ 82Emulsion Tube Holder
1777401$ 5.52Air Corrector Jet
1810410.017-1Pump Rod
1964290.005$ 34.52Pump Demand Valve
2061450$ 122Emulsion Tube
2152140.007$ 7.21Pump Spring Retainer
2264955.109-2Stud
2377903$ 9.42Jet Holder
2447600.103$ 5.21Spring
2541540.014$ 1.84Pump Jet Gasket
2673401$ 4.72Main Jet
2741165.252-2Idle Jet
2841252.009-2Pump Jet
2958602.004-1Plunger
3079701$ 11.51Exhaust Valve
3110005.438$ 421Throttle Shaft
3264005.059$ 15.12Throttle Plate
3364520.027-4Throttle Plate Screw
3432650.003$ 2.32Sealed Bearing
3541570.001$ 1.22Leather Seal
3647600.063$ 2.22Spring
3758000.007$ 3.22Retaining Cover
3845034.053-1Lever
3955520.004$ 1.22Shaft Lock Tab
4034710.003$ 1.22Throttle Spindle Nut
4147600.007$ 2.61Spring
41a47600.007$ 2.62Spring
4264625.012$ 9.41Throttle Stop Screw
4358445.001-1Fixing Pin
4445082.013-1Pump Cam Lever
4561015.001$ 8.72Plug
4641015.008-1Brass Float
4741530.017-1Gasket
4864900.010-1Float Pin Screw
4945028.040-1Lever
5047605.018-1Spring
5152010.036-1Spring Pivot Holder
5264750.001$ 4.42Idle Mixture Screw
5364955.029-4Stud
5434914.005-2Main Venturi (Choke)
5531956.002-2Auxiliary Venturi
5679504$ 21.81Needle & Seat
5741530.049-1Gasket
58Not Serviced-1Carburetor Body
5975605$ 17.42Starter Jet
6064330.003$ 10.22Starter Valve
6147600.005$ 2.22Spring
6212775.004$ 52Bushing
6310140.010$ 3.62Clip
6455510.038-2Washer
6564700.004$ 3.52Choke Cover Fixing Screw
6632556.005-1Pump Cover Assembly Including
6745027.039-1-Cold Start Lever Assembly
6864800.002$ 7.61-Cold Start Bolt
6945025.043-1-Cold Start Lever
7034720.002$ 6.61-Cold Start Nut
7110085.009-1Choke Control Shaft
7232556.006-1-Cold Start Plate
7347610.042$ 10.81-Spring
7464605.017$ 1.71-Choke Cable Clamp
7555525.010-1-Spring Washer
7634715.010-1-Fixing Nut
7737000.016$ 6.61-Filter
7812715.003-1Banjo Bolt
7941530.004-1Gasket
8037022.001$ 23.11Fuel Filter
8110354.006$ 21.51Fuel Union
82-

WEBER 40 DCNL

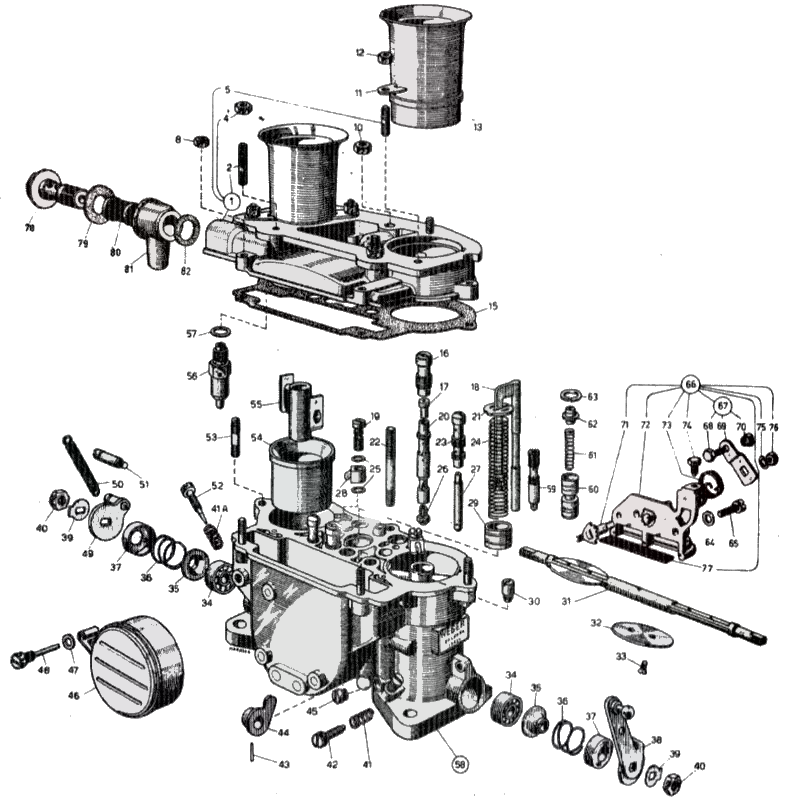

Exploded view
