WEBER 48 IDA diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
92.1050.05-1Repair Kit
92.0034.05-1Gasket Set

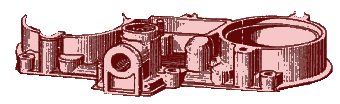

131716.056-1Carburetor Top Cover
264955.009$ 5.32Stud
364955.003-4Stud
410410.021$ 21.61Pump Rod
552140.007$ 7.21Spring Retaining Clip
647600.103$ 61Pump Spring
758602.005$ 21.51Pump Plunger
864290.003$ 29.32Pump Demand Valve
941530.012-4Pump Jet ´O´ Ring
1076402.050$ 37.82Pump Jet
1179701.000$ 13.21Pump Exhaust Valve
1279504.200$ 25.11Needle Valve
1341530.032-1Needle Valve ´O´ Ring
1441705.021$ 8.31Top Cover Gasket
1541015.007$ 401Float
1641530.017-1O´ Ring
1764900.012$ 31.61Float Spindle
1869009.450$ 67.32Auxiliary Venturi
1972128.370$ 25.12Venturi (Choke Tube)
2064750.007$ 12.12Idle Mixture Screw
2147600.007$ 3.22Idle Mixture Screw Spring
2241530.008-1O´ ring
2361002.006$ 5.81Threaded Cover
2461015.001$ 102Progression Hole Inspection Cvr
2534710.003$ 1.42Throttle Shaft Nut
2655520.004$ 1.42Lock Washer
2755555.010$ 3.31Washer
2847610.066$ 6.41Throttle Return Spring
2945034.074$ 69.31Pump Lever
3010140.502$ 2.41Spring Washer
3158445.001-1Pin

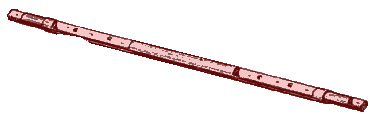

3210005.425$ 631Throttle Shaft
3364570.006$ 4.14Throttle Shaft Screws
3464005.091$ 34.92Throttle Valves
3547610.067$ 6.41Throttle Return Spring
3614852.001-1Cam
3745034.066-1Throttle Lever
3847600.007$ 3.21Throttle Stop Screw Spring
3964590.002$ 2.81Throttle Stop Screw
4048000.007$ 3.82Compression Spring Cover
4147600.063$ 2.62Compression Spring
4241570.001$ 1.42Dust Cap
4332650.001$ 6.62Roller Bearing
4464955.012-7Stud
4573401.135$ 5.42Main Jet
4661450.091$ 13.32Emulsion Tube
4777401.120$ 6.32Air Corrector Jet
4852580.001$ 9.22Emulsion Tube Holder
4974823.070$ 6.32Idle Jet
5077903.120$ 10.82Idle Jet Holder
5112715.008$ 11.41Fuel Rail Bolt
5241530.024-1Gasket
5310354.001-1Fuel Banjo
5441530.031-1Gasket
5537020.005$ 7.21Fuel Filter Element
5641530.024-1Fuel Filter Cover Gasket
5761002.010$ 91Fuel Filter Cover
5852840.027$ 50.52Air Horn
5952150.015$ 1.64Air Horn Fixing Tab
6034725.003-4Air Horn Fixing Tab Nut
6134725.003-2Gauze Cover Nut
6234725.003-7Carburetor Top Cover Nut
6312775.026$ 3.41Filter Locating Ring
6437012.004$ 40.71Gauze Cover

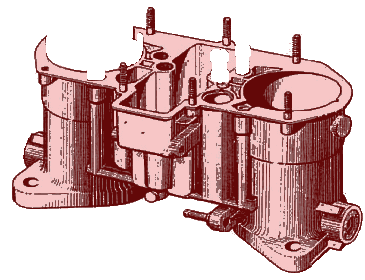

65-1Carburerot boy
6612750.077-1Pump Rod Bush

WEBER 48 IDA

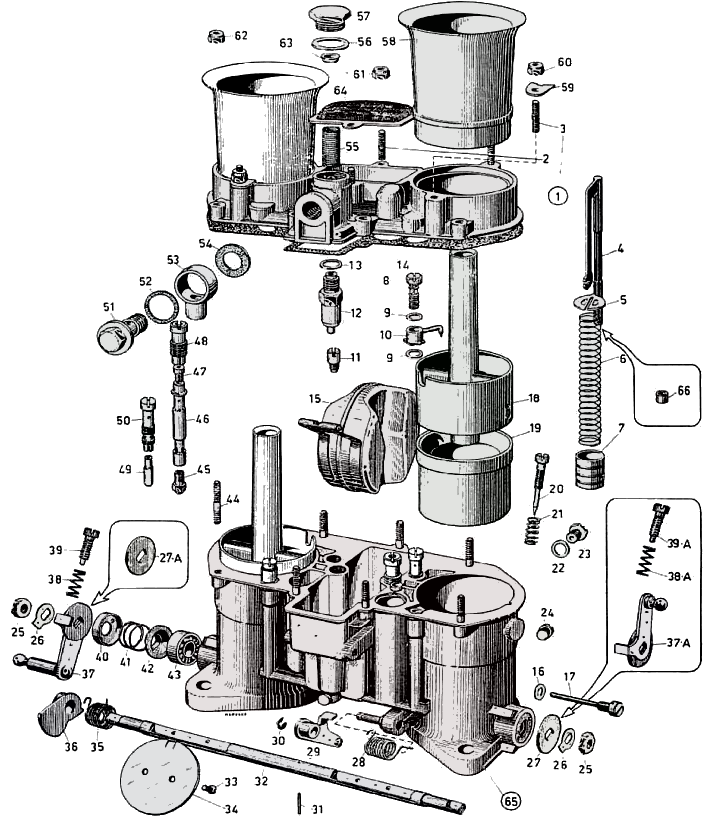

Exploded view
