WEBER 32/34 DMTL parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
131716.475$ 0Carb Top Cover
241705.095$ 0Stud
352000.036$ 2Stud
437022.002$ 5.5Fuel filter
561002.018$ 9Fuel filter cover
671115.400$ 0Auxiliary venturi
783102.070$ 1.1Needle Valve Gasket
879507.175$ 14.5Needle valve
941030.026$ 48.9Float
1061070.002$ 3.2Dust Seal Plate
1164700.012$ 1.8Fixing Screw
1252570.004$ 8Idle jet holder
1374403.055$ 3.2Idle Jet
1464595.013$ 0Screw
1541565.001$ 0Pump Jet O-Ring
1676417.045$ 13.6Pump Jet
1747600.007$ 2.4Throttle Stop Screw Spring
1864625.012$ 6.5Throttle Stop Screw
1964565.001$ 0Screw
2061015.015$ 0Idle Cut Off Solenoid
2147407.050$ 0Pump Diaphragm
2241535.003$ 1.1Idle Cut Off Solenoid Gasket
2347600.107$ 7.5Pump Spring
2441565.010$ 0O-Ring
2564750.052$ 0Idle mixture Screw
2661075.013$ 4.1Idle mixture tamper proof plug
2732486.070$ 0Pump Cover
2852130.010$ 3.8Shaft Bushing
2941575.010$ 3.4Shaft seal
3014850.177$ 0Cam
3155520.002$ 1.1Tab Washer
3234715.014$ 1.1Throttle Shaft Fixing Nut
3364005.090$ 16.8Throttle valve
3410000.272$ 0Throttle Shaft
3564565.002$ 0Screw
3647600.244$ 0Spring
3747407.182$ 0Diaphragm
3861400.018$ 0Pneumatic pump connecting pipe
3964520.027$ 0.6Screw
4064005.018$ 16.8Throttle Plate
4110015.311$ 0Throttle shaft
4247610.091$ 0Spring
4373405.110$ 3.8Main Jet
4373405.110$ 3.8Main Jet
4461450.225$ 18.3Emulsion Tube
4461450.222$ 18.3Emulsion tube
4577501.200$ 4.7Emulsion tube holder with Air corrector
4577501.200$ 4.7Air Correction Jet
4647610.058$ 0Spring For Choke Lever
4745202.078$ 0Choke Lever
4861287.030$ 0Choke rod
4932610.005$ 0.9Split Pin For Rod
5045041.332$ 0Carb Lever
5157804.121$ 0Auto Choke
5210140.501$ 1Spring Ring
5364700.026$ 0Lever Fixing Screw
5464700.005$ 0Carb Cover Fixing Screw
5510140.502$ 1.4Spring Washer
5655510.034$ 0.4Washer
5764525.003$ 0Choke plates fixing screw
5810015.271$ 0Choke shaft
5964010.033$ 0Choke plate
60$ 0
61$ 0Float pin
62$ 0

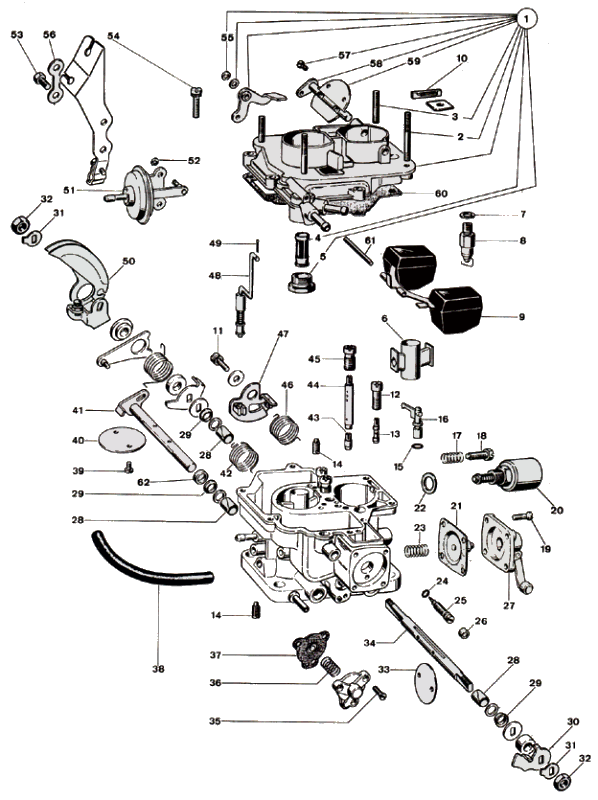

WEBER 32/34 DMTL - exploded view
