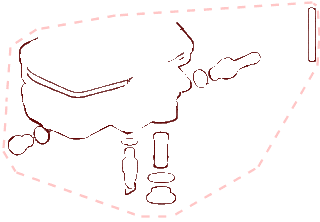

WEBER 40 IDF 70 parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
152848.003$ 88.71Air Horn
261285.042-1Pump Control Rod
393.0078.05-1Carburetor Top Cover
464955.108$ 52Stud
547600.252-1Pump Rod Spring
641705.085$ 3.41Carburettor Main Gasket
737022.010$ 5.61Fuel Filter
841530.024-1Fuel Filter Gasket
961002.010$ 6.81Fuel Filter cover
1064290.016$ 32.12Pump Demand Valve
1141530.012-4Pump Jet Gasket
1276210$ 16.32Pump jet
1379701$ 10.41Pump Exhaust Valve
1469002.450$ 642Auxiliary Venturi
1571506$ 16.32Venturi (Choke Tube)
1664955.114-2Stud
1745034.110$ 11.91Throttle Lever
1834710.003$ 1.12Throtle Spindle Nut
1955520.004$ 1.12Lock Washer
2055530.005$ 5.92Spring Ring
2132650.003$ 2.12Bearing
2274405$ 42Idle Jet
2341565.002-4Idle Jet O Ring
2452570.006$ 6.92Idle Jet Holder
2547600.007$ 2.41Throttle Stop Screw Spring
2664625.015$ 6.11Throtle Stop Screw
2747600.251$ 14.41Pump Rod Spring
2858000.006$ 2.12Mixture Screw O Ring Cap
2947600.062$ 32Mixture Screw Spring
3064750.003$ 42Mixture Screw
3164700.004$ 3.24Pump Cover Screw
3232486.085-1Pump Cover
3347407.207$ 11.91Pump Diaphragm
3458445.001-1Fixing Pin
3547600.250$ 81Pump Diaphragm Spring
3661015.005$ 3.22Vacuum Take-Off Cover
3764750.029$ 9.92Air By-Pass Screw
3834705.001-2Air By-Pass Screw Nut
3964005.126$ 29.22Throttle Plate
4064520.027-4Throttle Plate Fixing Screw
4141655.020$ 4.21Air Horn Gasket
4247610.035$ 9.91Throttle Return Spring
4345034.109$ 11.91Throttle Lever
4464830.002$ 5.32Choke Tube Fixing Screw
4534715.010-2Choke Tube Fixing Screw Nut
4664700.013$ 3.62Fixing Screw
4773401.115$ 4.22Main Jet
4861450.031$ 10.62Emulsion tube
4977401.200$ 52Air Corrector Jet
5052580.006$ 11.22Emulsion kTube Holder
5141030.008$ 12.51Float
5252000.001$ 2.51Float Pin
5379511.175$ 12.51Needle Valve
5483102.100-1Needle Valve Gasket
5564700.005-5Top Cover Fixing Screw
5610525.023$ 3.81Fuel Inlet Pipe
5712750.126-1Pump Adjustment Rod
5832610.003$ 1.51Spring Clip
5934725.008-1Pump Rod Nut
6041535.003-2Fuel Pipe Gasket
6155555.056-4Air Horn Washer
6261002.022$ 11.91Threaded Cap
6310005.243$ 38.11Throttle Shaft
6452135.008$ 51Blanking plate
6510140.002$ 3.32Spring Clip
6612775.024$ 4.62Spring guide and retainer
6747600.133$ 3.22Starter Valve Spring
6864330.009$ 9.22Starter Valve
6941205.101$ 11.72Starter Jet F5
7052580.001$ 7.32Emulsion Tube Holder
7164700.004$ 3.22Cold Start Fixing Screw
7255510.038-2Flat Washer
7364605.017$ 1.81Choke Cable Clamp
7434715.010-1Lever fixing nut
7555525.010-1Spring washer
7634720.002$ 71Cold Start Nut
7745025.029-1Cold Start Lever
7864800.002$ 81Screw securing wire
7945027.030-1Cold Start Lever Assembly
8047610.006$ 9.91Lever return spring
8132556.001-1Cold Start Unit
8210085.003-1Starting shaft
8337000.016$ 5.91Filter Screen
8432556.002$ 33.81Cold Start Unit
8558000.002$ 3.92Spring Retaining Cover
8645027.139-1Pump Cam
87ST2283$ 1.31Blanking Plate Gasket
88-1Carburetor body
89-1Carburetor top cover
90-1Washer
9152845.014$ 19.72Air horn
9234705.004-4Air horn nut
