| No | Part No | Price | Pcs | Description |
| 92.0286.05 | - | 1 | Gasket Kit |
| 92.1213.05 | - | 1 | Repair Kit |
| 1 | 31706.055 | - | 1 | Carburetor cover |
| 2 | 41700.010 | $ 5 | 1 | Carburetor cover gasket |
| 3 | 37022.010 | $ 5.6 | 1 | Fuel Filter |
| 4 | 61002.018 | $ 11.9 | 1 | Filter inspection plug |
| 5 | 83102.070 | - | 1 | Needle valve gasket |
| 6 | 79507.175 | $ 24.5 | 1 | Needle valve |
| 7 | 41015.011 | - | 1 | Float |
| 8 | 52000.010 | $ 2 | 1 | Float pin |
| 9 | 73801.147 | $ 6.4 | 1 | Main jet |
| 10 | 64005.007 | - | 1 | Throttle plate |
| 11 | 10015.494 | $ 78.1 | 1 | Throttle shaft |
| 12 | 64520.023 | - | 2 | Throttle fixing screw |
| 13 | 47600.107 | $ 9.9 | 1 | Pump loading spring |
| 14 | 47407.016 | - | 1 | Pump diaphragm |
| 15 | 32486.002 | - | 1 | Pump cover |
| 16 | 64700.004 | $ 3.2 | 4 | Pump cover fixing screw |
| 17 | 32610.005 | $ 1.5 | 2 | Split pin |
| 18 | 61280.020 | $ 14 | 1 | Pump operating rod |
| 19 | 52570.009 | $ 15.1 | 1 | Idle jet holder |
| 20 | 41565.019 | $ 1.5 | 1 | Gasket for idle jet holder |
| 21 | 74409 | $ 4.9 | 1 | Idle jet |
| 22 | 12765.021 | - | 1 | Bush for fast idle control lever |
| 23 | 55530.002 | $ 3.3 | 1 | Spring washer |
| 24 | 64750.048 | $ 21.7 | 1 | Idle mixture adjusting screw |
| 25 | 47600.007 | $ 2.4 | 1 | Spring for idle mix. adj. screw |
| 26 | 41575.010 | $ 5.6 | 2 | Shaft seal |
| 27 | 45048.054 | - | 1 | Throttle control lever |
| 28 | | - | | |
| 29 | | - | 1 | Idle tamper proof plug |
| 30 | | - | | Lever |
| 31 | 12750.058 | - | 1 | Bush for fast idle control lever |
| 33 | 55520.002 | $ 1.1 | 1 | Lock washer |
| 34 | 34715.014 | $ 1.1 | 1 | Cam fixing nut |
| 36 | | - | | Tie Rod |
| 37 | 79701.040 | $ 10.4 | 1 | Pump inlet valve with back bleed |
| 38 | 41565.001 | - | 1 | Gasket for pump jet |
| 39 | 76407.050 | $ 14.5 | 1 | Pump jet |
| 40 | 61440.222 | $ 15.4 | 1 | Emulsion tube |
| 41 | 77201.145 | $ 3.4 | 1 | Air corrector jet |
| 42 | 64700.012 | $ 3.1 | 1 | Spring locking bracket fixing screw |
| 43 | 58490.016 | $ 14 | 1 | Spring locking bracket fixing screw |
| 44 | | - | | Lever |
| 45 | 55510.002 | $ 1.6 | 1 | Screw washer for choke control lever |
| 46 | 64700.012 | $ 3.1 | 1 | Choke control lever fixing screw |
| 47 | 47610.003 | $ 5.5 | 1 | Choke lever return spring |
| 48 | 47605.025 | $ 6.1 | 1 | Choke automaticity spring |
| 49 | 10015.279 | - | 1 | Choke shaft |
| 50 | 64010.026 | - | 1 | Choke plate |
| 51 | 64525.003 | - | 2 | Choke plate fixing screw |
| 52 | 64700.005 | - | 4 | Carb. Cover fixing screw |
| 53 | 64605.017 | $ 1.8 | 1 | Sheath fixing screw |

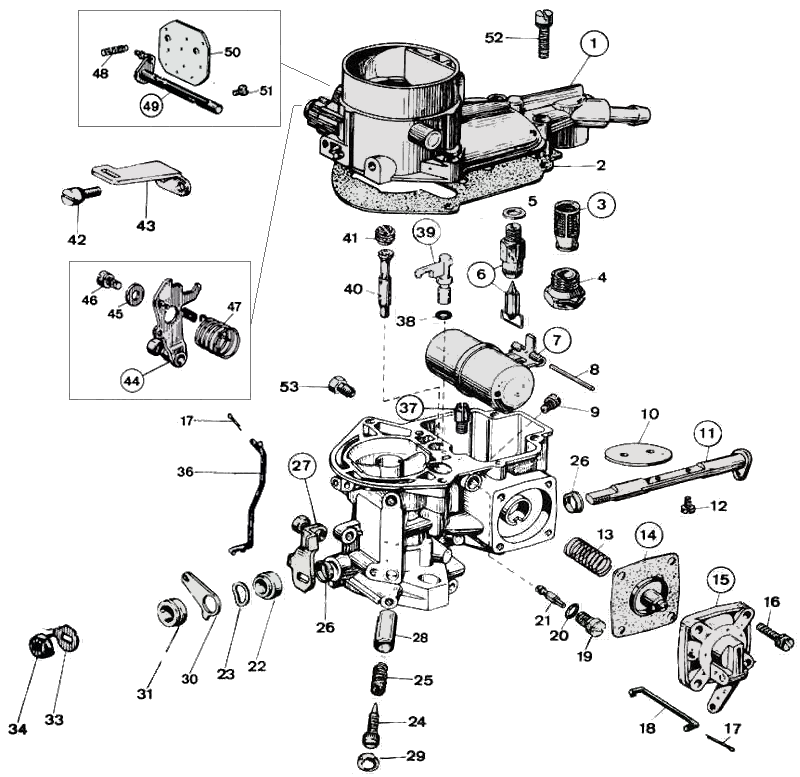

Download exploded view as PDF
