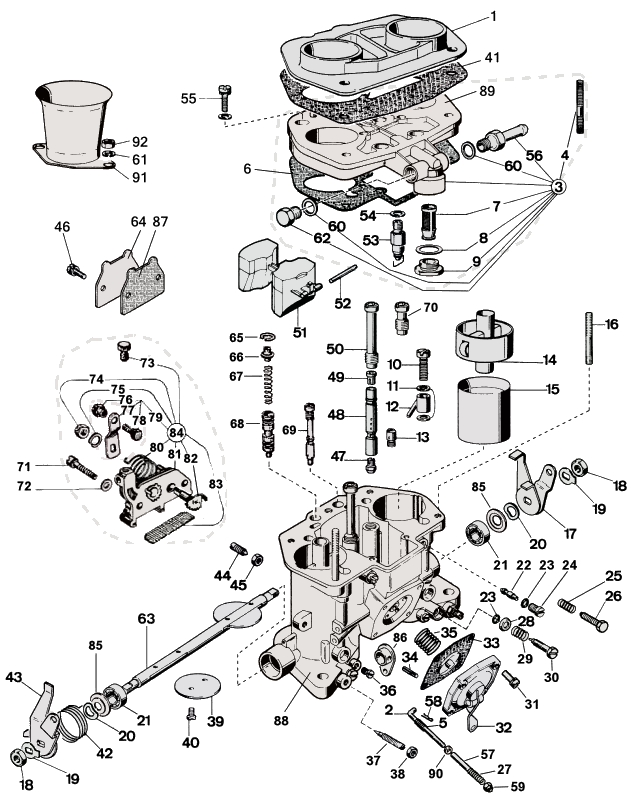

WEBER 40 IDF 70 parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
152848.003$ 92.41Air Horn
261285.042-1Pump Control Rod
393.0078.05-1Carburetor Top Cover
464955.108$ 5.22Stud
547600.252-1Pump Rod Spring
641705.085$ 4.41Carburettor Main Gasket
737022.010$ 7.11Fuel Filter
841530.024-1Fuel Filter Gasket
961002.010$ 8.71Fuel Filter cover
1064290.016$ 41.22Pump Demand Valve
1141530.012-4Pump Jet Gasket
1276210$ 20.82Pump jet
1379701$ 13.21Pump Exhaust Valve
1469002.450$ 35.72Auxiliary Venturi
1571506$ 20.82Venturi (Choke Tube)
1664955.114-2Stud
1745034.110$ 151Throttle Lever
1834710.003$ 1.42Throtle Spindle Nut
1955520.004$ 1.42Lock Washer
2055530.005$ 7.62Spring Ring
2132650.003$ 2.62Bearing
2274405$ 5.12Idle Jet
2341565.002-4Idle Jet O Ring
2452570.006$ 8.92Idle Jet Holder
2547600.007$ 3.11Throttle Stop Screw Spring
2664625.015$ 7.81Throtle Stop Screw
2747600.251$ 151Pump Rod Spring
2858000.006$ 2.62Mixture Screw O Ring Cap
2947600.062$ 3.12Mixture Screw Spring
3064750.003$ 5.12Mixture Screw
3164700.004$ 44Pump Cover Screw
3232486.085-1Pump Cover
3347407.207$ 151Pump Diaphragm
3458445.001-1Fixing Pin
3547600.250$ 101Pump Diaphragm Spring
3661015.005$ 3.32Vacuum Take-Off Cover
3764750.029$ 12.42Air By-Pass Screw
3834705.001$ 12Air By-Pass Screw Nut
3964005.126$ 30.42Throttle Plate
4064520.027-4Throttle Plate Fixing Screw
4141655.020$ 5.31Air Horn Gasket
4247610.035$ 12.41Throttle Return Spring
4345034.109$ 151Throttle Lever
4464830.002$ 6.72Choke Tube Fixing Screw
4534715.010-2Choke Tube Fixing Screw Nut
4664700.013-2Fixing Screw
4773401.115$ 5.42Main Jet
4861450.031$ 13.32Emulsion tube
4977401.200$ 6.32Air Corrector Jet
5052580.006$ 14.12Emulsion kTube Holder
5141030.008$ 15.91Float
5252000.001$ 3.21Float Pin
5379511.175$ 15.91Needle Valve
5483102.100-1Needle Valve Gasket
5564700.005-5Top Cover Fixing Screw
5610525.023$ 4.81Fuel Inlet Pipe
5712750.126-1Pump Adjustment Rod
5832610.003$ 1.61Spring Clip
5934725.008-1Pump Rod Nut
6041535.003-2Fuel Pipe Gasket
6155555.056-4Air Horn Washer
6261002.022$ 131Threaded Cap
6310005.243$ 48.91Throttle Shaft
6452135.008$ 6.21Blanking plate
6510140.002$ 4.12Spring Clip
6612775.024$ 5.82Spring guide and retainer
6747600.133$ 4.12Starter Valve Spring
6864330.009$ 11.72Starter Valve
6941205.101$ 152Starter Jet F5
7052580.001$ 9.22Emulsion Tube Holder
7164700.004$ 42Cold Start Fixing Screw
7255510.038-2Flat Washer
7364605.017$ 21Choke Cable Clamp
7434715.010-1Lever fixing nut
7555525.010-1Spring washer
7634720.002$ 7.71Cold Start Nut
7745025.029$ 8.61Cold Start Lever
7864800.002$ 8.71Screw securing wire
7945027.030-1Cold Start Lever Assembly
8047610.006$ 12.41Lever return spring
8132556.001-1Cold Start Unit
8210085.003$ 8.61Starting shaft
8337000.016$ 7.61Filter Screen
8432556.002$ 43.41Cold Start Unit
8558000.002$ 4.92Spring Retaining Cover
8645027.139-1Pump Cam
87ST2283$ 1.61Blanking Plate Gasket
88-1Carburetor body
89-1Carburetor top cover
90-1Washer
9152845.014$ 21.52Air horn
9234705.004-4Air horn nut
