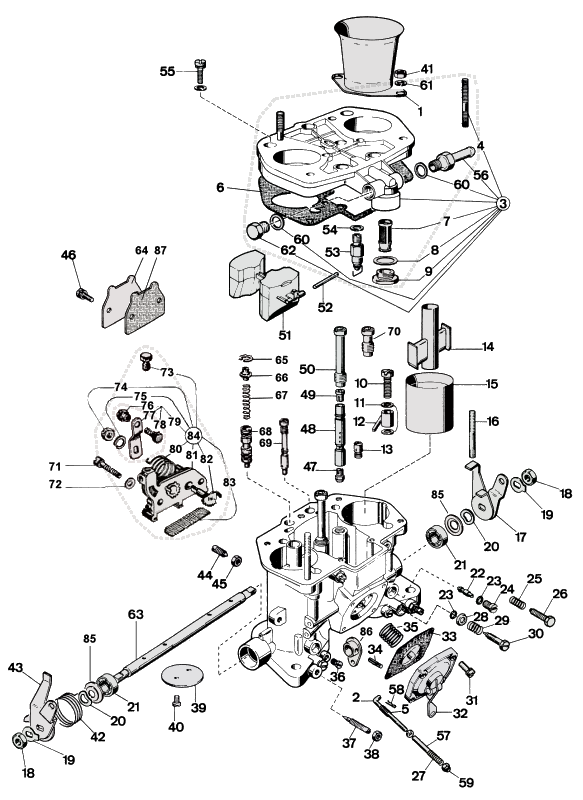

WEBER 44 IDF 71 parts diagram


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
152845.014$ 18.72Air Intake Horn
261285.042-1Pump Control Rod
393.0074.05-1Carburetor Cover
464955.108$ 5.22Stud Bolt
547600.252-1Pump Control Rod Spring
641705.086$ 2.61Carburetor Cover Gasket
737022.002$ 6.41Fuel Filter
841530.024-1Fuel Filter Plug Gasket
961002.010$ 7.41Fuel Filter Plug Gasket
1064290.016$ 34.52Pump Demand Valve
1141540.014$ 1.84Pump Jet Gasket
1276210$ 17.52Pump Jet
1379701$ 11.51Pump Exhaust Valve
1471102$ 29.92Auxiliary Venturi
1571507$ 34.52Venturi (Choke Tube)
1664955.110-2Stud Bolt
1745034.110$ 131Throttle Valve Control Lever
1834710.003$ 1.12Shaft Fixing Nut
1955520.004$ 1.12Lock Washer
2055530.005$ 6.42Spring Ring
2132650.003$ 2.32Bearing
2274405$ 4.42Idle Jet
2341565.002-4Idle Jet O Ring
2452570.006$ 7.42Idle Jet Holder
2547600.007$ 2.61Throttle Adjusting Screw Spring
2664625.015$ 6.51Throttle Adjusting Screw
2747600.251$ 151Pump Rod Spring
2858000.006$ 2.22Mixture Screw O Ring Cap
2947600.062$ 3.12Mixture Screw Spring
3064755.013-2Mixture Screw
3164700.004$ 3.54Pump Cover Screw
3232486.085-1Pump Cover
3347407.207$ 131Pump Diaphragm
3458445.001-1Spring Pin
3547600.250$ 8.71Pump Diaphragm Spring
3661015.005$ 3.33Vacuum Take-Off Cover
3764750.029$ 10.82Air Adjusting Screw
3834705.001-2Air Adjusting Screw Nut
3964005.103$ 162Throttle Valve
4064520.027-4Throttle Valve Fixing Screw
4134705.004-4Air Horn Nut
4247610.035$ 10.81Throttle Return Spring
4345034.109$ 131Throttle Valve Control Lever
4464830.002$ 5.82Choke Fixing Screw
4534715.010-2Choke Fixing Screw Nut
4664700.013-2Starting Plate Fixing Screw
4773401$ 4.72Main Jet
4861450$ 122Emulsion tube
4977401$ 5.52Air Correction Jet
5052580.006$ 12.32Emulsion Tube Holder
5141030.008$ 13.81Float
5252000.001$ 2.81Float Pin
5379511$ 13.81Needle Valve
5483102.100-1Needle Valve Gasket
5564700.005-5Carburetor Cover Fixing Screw
5610525.023$ 4.21Fuel Inlet Pipe
5712750.126-1Pumping Extension Bushing
5832610.003$ 1.61Spring Clip
5934725.008-1Pump Rod Nut
6041535.003-2Fuel Intake Coupling Gasket
6155555.056-4Air Horn Washer
6261002.022$ 11.31Threaded Cap
6310005.243$ 40.91Throttle Shaft
6452135.008$ 5.41Blanking plate
6510140.002$ 3.52Spring Clip
6612775.024$ 52Spring guide and retainer
6747600.133$ 3.42Starter Valve Spring
6864330.009$ 10.22Starter Valve
6941205.101$ 12.52Starter Jet F5
7052580.001$ 82Emulsion Tube Holder
7164700.004$ 3.52Pump Cover Screw
7255510.038-2Flat Washer
7364605.017$ 1.71Choke Cable Clamp
7434715.010-1Lever fixing nut
7555525.010-1Spring washer
7634720.002$ 6.61Cold Start Nut
7745025.029$ 7.31Cold Start Lever
7864800.002$ 7.61Screw securing wire
7945027.030-1Cold Start Lever Assembly
8047610.006$ 10.81Lever return spring
8132556.001-1Cold Start Unit
8210085.003$ 7.31Starting shaft
8337000.016$ 6.61Filter Screen
8432556.002$ 36.31Cold Start Unit
8558000.002$ 4.12Spring Retaining Cover
8645027.139-1Pump Cam
87ST2283$ 1.41Gasket
