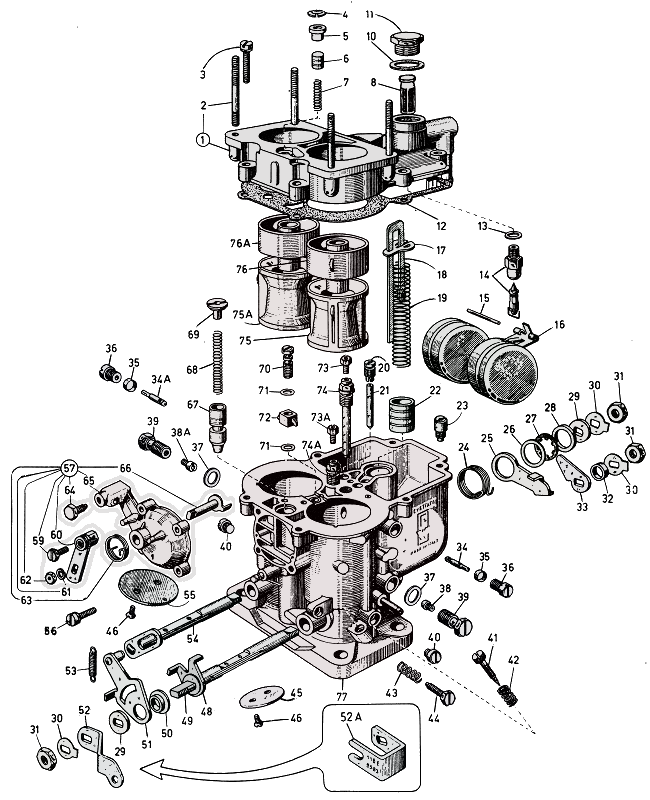

WEBER 30 DICA parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
1Not Serviced-1Carburetor Top Cover
264955.001-3Stud
364700.005-5Top Cover Fixing Screw
441705.004-1Top Cover Gasket
564005.003$ 12.71Choke Plate
610015.204-1Choke Rod
764570.007$ 2.52Screw
832610.005$ 1.55Split Pin
961280.009$ 19.41Carburetor Rod
1037022.010$ 5.51Fuel Filter
1161002.018$ 11.91Strainer Inspection Plug
1283102.07-1Needle Valve Gasket
1379507$ 9.51Needle & Seat
1441015.011-1Float
1552000.010$ 21Float Pin
1664290.015-1Valve
1776216-1Pump Jet
1841540.014$ 2.72Pump Jet Gasket
1977201$ 3.42Air Corrector
2061440$ 15.22Emulsion Tube
2164900.001$ 11.91Pump Discharge Blanking Needle
2273801$ 4.22Main Jet
2352590.002-2Jet Holder
2455510.002$ 1.61Washer
2555525.001-1Spring Washer
2634705.001-1Nut
2710016.469-1Oversized Primary Throttle Shaft
2847600.107$ 9.91Accelerator Pump Spring
2964520.023-4Throttle Plate Fixing Screw
3064005.004$ 16.22Throttle Plate
3147407.249$ 11.91Accelerator Pump Diaphragm
3232486.006-1Accelerator Pump Cover
3364700.004$ 3.24Fixing Screw
3464700.002-1Screw
3557804.029-1Starting Device
3664700.004$ 3.23Fixing Screw
3732386.004-1Cover
3847407.044$ 43.21Diaphragm
3947600.070-1Spring
4057804.028-1Starting Device
4164595.005$ 10.21Screw
4261015.003-1Plug
4341565.008-1O-Ring
4452570.006$ 6.82Idle Jet Holder
4541565.002-2O-Ring
4674403$ 42Idle Jet
4764755.008$ 24.81Mixture Screw
4841565.010-1O-ring
4947600.095$ 2.71Spring
50Not Serviced-1Carburetor Body
5164955.102-2Stud
5264595.030-2Stud
5347610.039$ 4.11Spring
5461280.010-1Carburetor Rod
5545136.005-1Throttle Stop
5655555.016$ 2.22Shaft Spacer
5747670.002$ 5.52Rod Clamp
5845032.001-1Lever
5945069.004$ 28.91Loose Lever
6055510.061$ 2.31Washer for Loose Lever
6155520.002$ 1.11Shaft Lock Tab
6234715.014$ 1.11Throttle Shaft Fixing Nut
6345034.024-1Lever
6415034.025-1Lever
6547600.007$ 2.41Spring
6664590.004$ 5.11Screw
6747605.011-1Spring
6812775.006$ 16.51Bushing for Loose Lever
6955530.002$ 3.31Wavy Washer
7064700.012$ 3.11Lever Fixing Screw
7155510.002$ 1.61Washer
7245200.001$ 9.51Lever
7347610.056$ 5.51Spring
7447605.022-1Spring
7555510.034-1Carburetor Washer
7645034.056$ 28.91Lever
7710016.470-1Oversized Secondary Shaft
7845096.024-1Lever
7945096.023-1Lever
8064615.004-1Screw
8112775.010$ 9.71Bushing for Lever
8264700.012$ 3.11Lever Fixing Screw
8361280.008-1Carburetor Rod
8441640.025-1Gasket
8531800.009-1Capsule
8664700.002-2Screw
8761070.002$ 3.21Dust Seal Plug
88-
