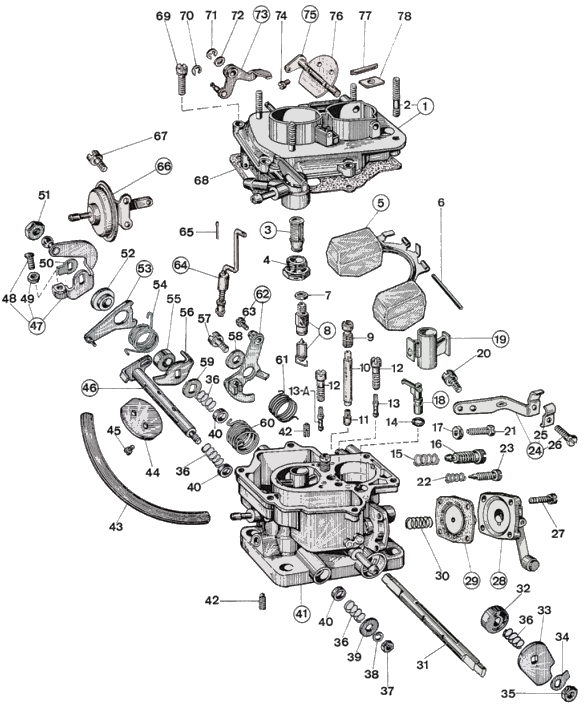

WEBER 32 DMTR 20 parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
131716.173-1Carburetor cover Assy, including:
264960.008-4— Stud
337022.002$ 5.81Filter element
461002.018$ 11.91Fuel Filter Cover
541030.012-1Float
652000.036$ 21Float Fulcrum Pin
741535.015-1Needle valve gasket
864240.008-1Float valve
941370.001$ 61Emulsion tube holder air corrector
941370.001$ 61Emulsion tube holder air corrector
1061450.229$ 28.62Emulsion Tube
1141115.801-1Main jet
1141115.003$ 5.71Main jet
1252570.004$ 10.62Idle Jet Holder
13-A41160.003$ 3.21Idle jet
1341160.823-1Idle jet
1441565.001-1Pump Jet ´O´ Ring
1547600.097-1Compression Spring
1664750.027$ 22.81Idling adjustment screw
1734705.001-1Nut
1841254.008$ 16.81Pump jet
1931966.017-2Auxiliary venturi
2064700.012$ 3.11Lever Fixing Screw
2164625.012$ 8.61Throttle Adjustment Screw
2247600.007$ 2.51Idle Mixture Screw Spring
2364755.009-1Idle Mixture Screw
2458702.029-1Sheat support Assy. including:
2552145.004-1- Sheat securing plate
2664615.007-1- Screw securing wire
2764700.006-4Pump Cover Screw
2832486.047-1Accelerator Pump Cover
2947407.050$ 12.51Pump diaphragm
3047600.107$ 9.91Pump Spring
3110001 209-1Primary Throttle Shaft - Oversized
3110000.241-1Primary Throttle Shaft
3250002.008$ 8.51Shaft Bushing
3314850.077$ 49.81Pump Cam
3455520.004$ 1.11Throttle Shaft Lock Washer
3534710.003$ 1.11Throttle Spindle Nut
3647600.027$ 5.24Bush retaining spring
3734705.001-1Nut
3855525.001-1Spring Washer
3955510.081$ 2.21Washer For Shaft
4012750.085$ 4.13Bushing
41-1Carburettor body
4264595.013-2Secondary throttle adjusting screw
4361400.018-1Pneumatic pump connecting pipe
4464005.090$ 17.22Throttle Valve
4564520.027-4Throttle plate screw
4610016.207-1Secondary Throttle Shaft Oversized
4610015.255-1Secondary Throttle Shaft
4745041.071-1Leva comando farfalla completa di:
4864595.009-1— Screw
4934715.006-1— Cold Start Nut
5055520.002$ 1.11Shaft Lock Tab
5134715.014$ 1.11Throttle Spindle Nut
5212775.053-1Bushing
5345069.015-1Lever
5447610.092$ 5.51Spindle return spring
5512750.087-1Bushing
5645136.052-1Lever
5764700.012$ 3.11Lever Fixing Screw
5855510.002$ 1.61Spring Washer
5955555.019$ 1.61Shaft Spacer
6047610.091-1Choke lever return spring
6147610.058-1Lever return spring
6245202.069$ 25.81Choke Lever
6364615.004-1- Screw securing wire
6461287.023-1Choke rod
6532610.005$ 1.61Spilt pin
6657804.107-1Dispositivo di sgolfamento
6764700.012$ 3.12Lever Fixing Screw
6841705.039-1Carburettor Cover Gasket
6964700.005-6Top Cover Fixing Screw
7010140.501$ 1.71Locking Ring
7110140.502$ 2.31Locking Ring
7255510.034-1Spring Washer
7345069.017-1Lever
7464525.003-2Choke plate fixing screw
7510015.256-1Choke shaft
7664010.029-1Choke throttle valve
7761070.002$ 3.21Dust seal plug
7852135.010$ 3.21Dust seal plate
