| No | Part No | Price | Pcs | Description |
| 1 | 31716.173 | - | 1 | Carburetor cover Assy, including: |
| 2 | 64960.008 | - | 4 | — Stud |
| 3 | 37022.002 | $ 6.4 | 1 | Filter element |
| 4 | 61002.018 | $ 13 | 1 | Fuel Filter Cover |
| 5 | 41030.012 | - | 1 | Float |
| 6 | 52000.036 | $ 2.2 | 1 | Float Fulcrum Pin |
| 7 | 41535.015 | - | 1 | Needle valve gasket |
| 8 | 64240.008 | - | 1 | Float valve |
| 9 | 41370.001 | $ 6.7 | 1 | Emulsion tube holder air corrector |
| 9 | 41370.001 | $ 6.7 | 1 | Emulsion tube holder air corrector |
| 10 | 61450.229 | $ 31.6 | 2 | Emulsion Tube |
| 11 | 41115.003 | $ 6.3 | 1 | Main jet |
| 11 | 41115.801 | - | 1 | Main jet |
| 12 | 52570.004 | $ 11.6 | 2 | Idle Jet Holder |
| 13-A | 41160.003 | $ 3.6 | 1 | Idle jet |
| 13 | 41160.823 | - | 1 | Idle jet |
| 14 | 41565.001 | - | 1 | Pump Jet ´O´ Ring |
| 15 | 47600.097 | - | 1 | Compression Spring |
| 16 | 64750.027 | $ 23.5 | 1 | Idling adjustment screw |
| 17 | 34705.001 | - | 1 | Nut |
| 18 | 41254.008 | $ 18.6 | 1 | Pump jet |
| 19 | 31966.017 | - | 2 | Auxiliary venturi |
| 20 | 64700.012 | $ 3.2 | 1 | Lever Fixing Screw |
| 21 | 64625.012 | $ 9.4 | 1 | Throttle Adjustment Screw |
| 22 | 47600.007 | $ 2.7 | 1 | Idle Mixture Screw Spring |
| 23 | 64755.009 | - | 1 | Idle Mixture Screw |
| 24 | 58702.029 | - | 1 | Sheat support Assy. including: |
| 25 | 52145.004 | - | 1 | - Sheat securing plate |
| 26 | 64615.007 | - | 1 | - Screw securing wire |
| 27 | 64700.006 | - | 4 | Pump Cover Screw |
| 28 | 32486.047 | - | 1 | Accelerator Pump Cover |
| 29 | 47407.050 | $ 13.8 | 1 | Pump diaphragm |
| 30 | 47600.107 | $ 10.8 | 1 | Pump Spring |
| 31 | 10001 209 | - | 1 | Primary Throttle Shaft - Oversized |
| 31 | 10000.241 | - | 1 | Primary Throttle Shaft |
| 32 | 50002.008 | $ 8.8 | 1 | Shaft Bushing |
| 33 | 14850.077 | $ 51.3 | 1 | Pump Cam |
| 34 | 55520.004 | $ 1.2 | 1 | Throttle Shaft Lock Washer |
| 35 | 34710.003 | $ 1.2 | 1 | Throttle Spindle Nut |
| 36 | 47600.027 | $ 5.7 | 4 | Bush retaining spring |
| 37 | 34705.001 | - | 1 | Nut |
| 38 | 55525.001 | - | 1 | Spring Washer |
| 39 | 55510.081 | $ 2.2 | 1 | Washer For Shaft |
| 40 | 12750.085 | $ 4.5 | 3 | Bushing |
| 41 | | - | 1 | Carburettor body |
| 42 | 64595.013 | - | 2 | Secondary throttle adjusting screw |
| 43 | 61400.018 | - | 1 | Pneumatic pump connecting pipe |
| 44 | 64005.090 | $ 19 | 2 | Throttle Valve |
| 45 | 64520.027 | - | 4 | Throttle plate screw |
| 46 | 10016.207 | - | 1 | Secondary Throttle Shaft Oversized |
| 46 | 10015.255 | - | 1 | Secondary Throttle Shaft |
| 47 | 45041.071 | - | 1 | Leva comando farfalla completa di: |
| 48 | 64595.009 | - | 1 | — Screw |
| 49 | 34715.006 | - | 1 | — Cold Start Nut |
| 50 | 55520.002 | $ 1.2 | 1 | Shaft Lock Tab |
| 51 | 34715.014 | $ 1.2 | 1 | Throttle Spindle Nut |
| 52 | 12775.053 | - | 1 | Bushing |
| 53 | 45069.015 | - | 1 | Lever |
| 54 | 47610.092 | $ 5.7 | 1 | Spindle return spring |
| 55 | 12750.087 | - | 1 | Bushing |
| 56 | 45136.052 | - | 1 | Lever |
| 57 | 64700.012 | $ 3.2 | 1 | Lever Fixing Screw |
| 58 | 55510.002 | $ 1.7 | 1 | Spring Washer |
| 59 | 55555.019 | $ 1.7 | 1 | Shaft Spacer |
| 60 | 47610.091 | - | 1 | Choke lever return spring |
| 61 | 47610.058 | - | 1 | Lever return spring |
| 62 | 45202.069 | $ 26.6 | 1 | Choke Lever |
| 63 | 64615.004 | - | 1 | - Screw securing wire |
| 64 | 61287.023 | - | 1 | Choke rod |
| 65 | 32610.005 | $ 1.6 | 1 | Spilt pin |
| 66 | 57804.107 | - | 1 | Dispositivo di sgolfamento |
| 67 | 64700.012 | $ 3.2 | 2 | Lever Fixing Screw |
| 68 | 41705.039 | - | 1 | Carburettor Cover Gasket |
| 69 | 64700.005 | - | 6 | Top Cover Fixing Screw |
| 70 | 10140.501 | $ 1.8 | 1 | Locking Ring |
| 71 | 10140.502 | $ 2.4 | 1 | Locking Ring |
| 72 | 55510.034 | - | 1 | Spring Washer |
| 73 | 45069.017 | - | 1 | Lever |
| 74 | 64525.003 | - | 2 | Choke plate fixing screw |
| 75 | 10015.256 | - | 1 | Choke shaft |
| 76 | 64010.029 | - | 1 | Choke throttle valve |
| 77 | 61070.002 | $ 3.6 | 1 | Dust seal plug |
| 78 | 52135.010 | $ 3.6 | 1 | Dust seal plate |

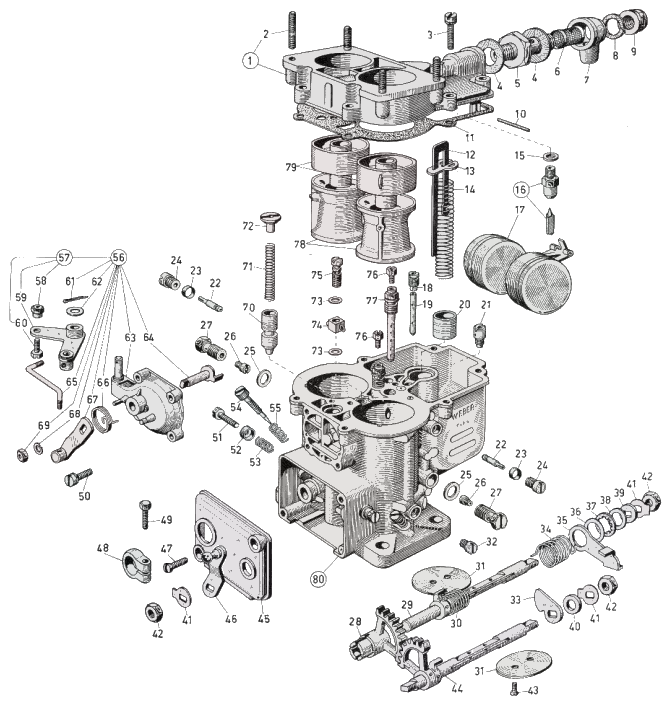

Download exploded view as PDF
