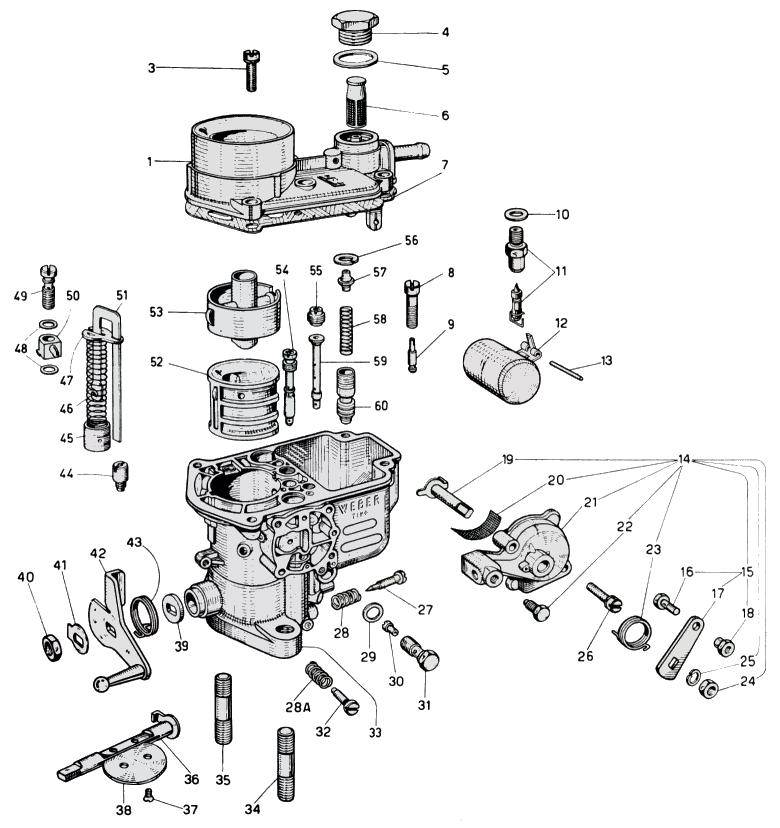

WEBER 34 IMPE parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
1$ 0Float-bowl cover
3$ 0Screw
461002.010$ 6.8Filter-cap screw
541530.024$ 0.3Gasket
637022.002$ 5.5Fuel filter
7$ 0Gasket
8$ 0Idle-jet holder
974403.045$ 3.2Idle jet
10$ 0Gasket
1179516.200$ 8.2Float needle valve
12$ 0Float
13$ 0Float-fulcrum pin
14$ 0Choke
15$ 0Choke-lever assembly
16$ 0Screw
17$ 0Lever
18$ 0Nut
19$ 0Choke lever
20$ 0Filter screen
21$ 0Cover
22$ 0Screw
23$ 0Choke spring
24$ 0Nut
25$ 0Washer
26$ 0Choke-cover screw
27$ 0Idle-mixture screw
28$ 0Idle-mixture-screw spring
28A$ 0Idle-speed-screw spring
29$ 0Washer
30$ 0Main jet
31$ 0Main-jet holder
32$ 0Idle-speed screw
33$ 0Carburetor body
34$ 0Mounting stud
35$ 0Mounting stud
36$ 0Throttle shaft
37$ 0Throttle-valve screw
38$ 0Throttle valve
39$ 0Washer
40$ 0Throttle-shaft nut
41$ 0Throttle-shaft-end washer
42$ 0Throttle-shaft lever
43$ 0Throttle-return spring
4479701.040$ 9.6Back bleed valve
45$ 0Pump plunger
4647600.064$ 2.9Pump spring
47$ 0Pump retainer plate
48$ 0Washer
49$ 0Pump holder
50$ 0Pump jet
51$ 0Pump lever
52$ 0Venturi
53$ 0Auxiliary venturi
54$ 0Starter Jet
5577201$ 3.2Air-correction jet
56$ 0Retaining ring
57$ 0Spring guide
5847600.105$ 2Delivery-valve spring
5961440.220$ 15.3Emulsion tube
60$ 0Cold start valve
