Carb manufacturer: Carb model:
   Download exploded view as PDF

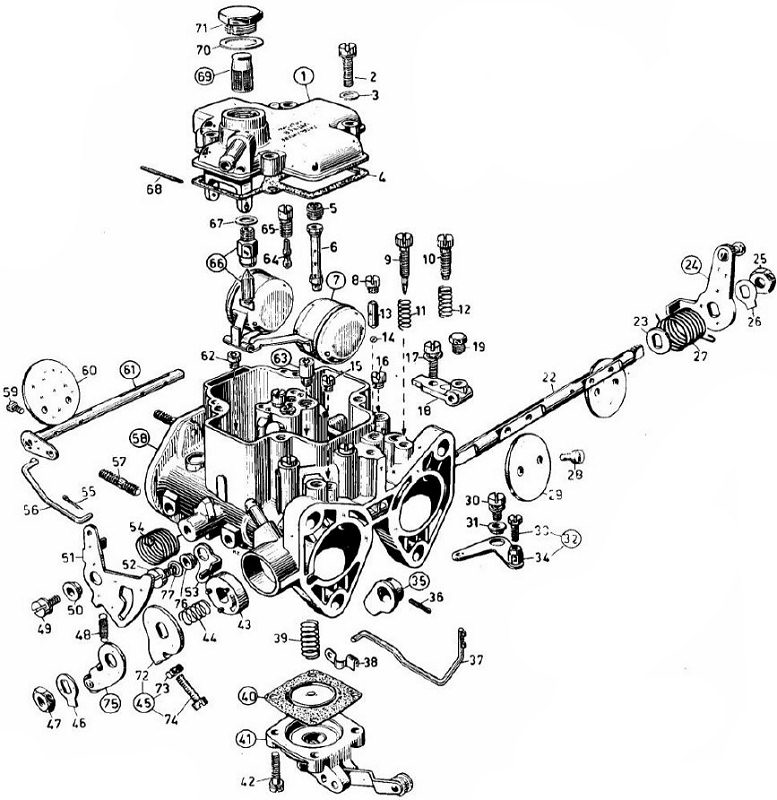

WEBER 40 DCOE late type parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
161002.010$ 6.71Filter Cover
241530.024$ 0.31Filter Cover Gasket
337022.002$ 5.51Filter Element
432376.003$ 10.91Jet Inspection Cover
564700.001$ 0.69Screw
641550.002$ 0.41Jet Inspection Cover Gasket
741715.011$ 2.61Top Cover Gasket
879503.175$ 7.91Needle Valve
941030.034$ 20.61Float
1052580.001$ 12.12Emulstion Tube Holder
1177401.200$ 2.52Air Corrector Jet
1252585.006$ 11.32Idle Jet Holder
1361450.031$ 11.12Emulsion Tube
1464955.007$ 12.21Stud
1573401.115$ 2.52Main Jet
1674822.045$ 3.12Idle Jet
1769912.450$ 36.62Auxiliary Venturi
1852840.012$ 19.52Air Horn
1934705.004$ 0.64Air Horn Fixing Nut
2055525.010$ 0.44Spring Washer
2152150.012$ 1.24Air Horn Tab
2272302.300$ 16.42Venturi (Choke Tube)
2364955.110$ 0.34Stud
2434710.003$ 12Lock Nut
2514945.003$ 1.62Air By-Pass Screw Cap
2664750.002$ 82Air By-Pass Screw
2734705.001$ 0.82By-Pass Screw Lock Nut
2864830.006$ 44Locking Screw
3155520.004$ 12Lock Washer
3234710.003$ 12Throttle Spindle Nut
3364005.044$ 11.72Throttle Plate
3564520.027$ 0.64Throttle Plate Screw
3641640.001$ 2.61Bottom Cover Gasket
3852140.004$ 2.81Pump Screen retainer
3964750.009$ 0.82Inspection Cover Fixing Screw
4064700.004$ 0.82Choke cover Fixing Screw
4152030.003$ 3.82Spring retainer
4232556.018$ 31.51Choke Cover
4379701.050$ 9.41Pump Exhaust Valve
4441565.002$ 0.42Idle Mixture Screw ´O´Ring
4545048.007$ 131Throttle Lever
4658000.006$ 22Idle Mixture Screw Cup Washer
4747600.007$ 2.43Spring
4864590.008$ 4.12Vacuum Take-Off Cover
4941535.021$ 1.22Pump Jet Gasket
5047605.012$ 3.11Throttle Return Spring
5152210.006$ 1.61Spring Anchor Plate
5264625.012$ 2.11Throttle Stop Screw
5358602.003$ 81Pump Plunger
5464330.003$ 82Starter Valve
5547600.105$ 22Starter Valve Spring
5664750.003$ 3.72Idle Mixture Screw
5776801.040$ 5.22Pump Jet
5841565.009$ 0.62Pump Jet ´O´ Ring
5961015.008$ 8.32Pump Jet Cover
6047600.064$ 2.91Pump Rod Spring
6110410.015$ 15.71Pump Rod
6275507.085$ 10.92Starter Jet
6358300.003$ 0.32Pump Demand Valve Ball
6452730.001$ 52Pump Valve Weight
6561015.006$ 52Pump Demand Valve Cover
6683102.120$ 0.31Needle Valve Gasket
6741530.031$ 0.31Fuel Union Gasket
6810536.035$ 9.71Fuel Union
6941530.024$ 0.31Fuel Union Gasket
7012715.008$ 81Fuel Union Bolt
7161015.009$ 8.32Progression Hole Inspection Cov
7252000.001$ 21Float Pin
7364605.017$ 1.91Choke Cable Clamp
7477505.150$ 3.92Starter Air Jet
7531734.197$ 70.51Carburetor Top Cover
7652130.003$ 2.71Plate
7755510.128$ 2.92Washer
7832650.001$ 1.62Bearing
7941575.019$ 3.42O´ Ring
8052135.024$ 5.21Inspection Cover
8141640.021$ 0.71Gasket
8258445.001$ 0.41Pin
8332374.008$ 19.61Cover
8445082.005$ 15.11Pump Cam
8510005.446$ 31.51Throttle Spindle
8655555.010$ 2.32Washer
8710536.034$ 13.41Fuel inlet T pipe
88ST2283$ 0.31Blanking plate gasket
8952135.008$ 2.91Blanking plate
9045048.149$ 16.41Balance lever
91$ 01Carburetor body
92ST1936$ 5.21Universal lever
93ST2460$ 2.51Ball end Left thread
94ST1937$ 2.51Ball end Right thread
95ST2559$ 12.21Rod with ball ends
9637000.016$ 41Filter Screen
9764605.017$ 1.91Fixing Bolt
9847610.006$ 3.71Return Spring
99$ 01Cold start wire screw with nut
