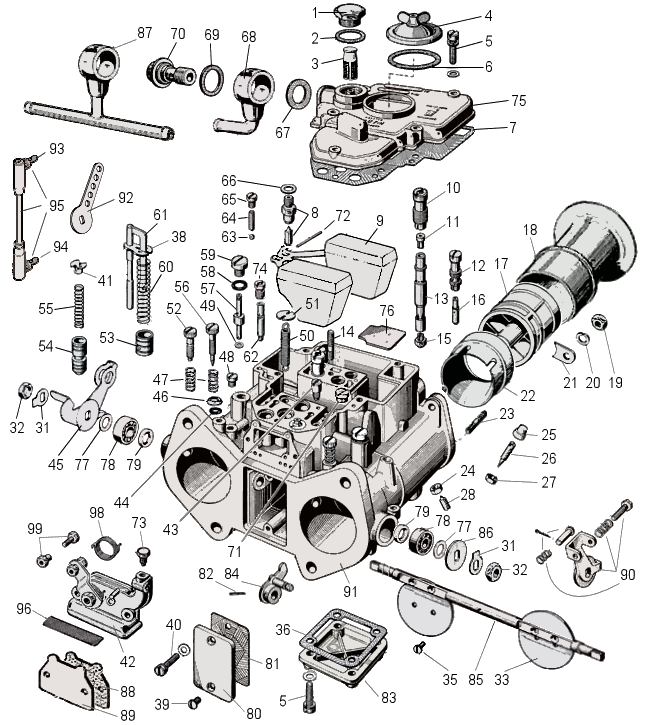

WEBER 40 DCOE late type parts diagram


 - click on part to see more

List of parts:

NoPart NoPricePcsDescription
161002.010$ 6.81Filter Cover
241530.024-1Filter Cover Gasket
337022.002$ 5.81Filter Element
432376.003$ 121Jet Inspection Cover
564700.001-9Screw
641550.002$ 1.11Jet Inspection Cover Gasket
741715.011$ 2.61Top Cover Gasket
879503.175$ 12.51Needle Valve
941030.034$ 15.21Float
1052580.001$ 7.32Emulstion Tube Holder
1177401.200$ 52Air Corrector Jet
1252585.006$ 8.62Idle Jet Holder
1361450.031$ 10.62Emulsion Tube
1464955.007$ 12.91Stud
1573401.115$ 4.22Main Jet
1674822.045$ 5.32Idle Jet
1769912.450$ 35.62Auxiliary Venturi
1852840.012$ 182Air Horn
1934705.004-4Air Horn Fixing Nut
2055525.010-4Spring Washer
2152150.012$ 1.24Air Horn Tab
2272302.300$ 14.52Venturi (Choke Tube)
2364955.110-4Stud
2434710.003$ 1.12Lock Nut
2514945.003$ 1.62Air By-Pass Screw Cap
2664750.002$ 9.92Air By-Pass Screw
2734705.001-2By-Pass Screw Lock Nut
2864830.006$ 4.14Locking Screw
3155520.004$ 1.12Lock Washer
3234710.003$ 1.12Throttle Spindle Nut
3364005.044$ 13.82Throttle Plate
3564520.027-4Throttle Plate Screw
3641640.001$ 41Bottom Cover Gasket
3852140.004$ 3.71Pump Screen retainer
3964750.009-2Inspection Cover Fixing Screw
4064700.004$ 3.22Choke cover Fixing Screw
4152030.003$ 4.62Spring retainer
4232556.018$ 38.51Choke Cover
4379701.050$ 10.41Pump Exhaust Valve
4441565.002-2Idle Mixture Screw ´O´Ring
4545048.007$ 13.31Throttle Lever
4658000.006$ 2.12Idle Mixture Screw Cup Washer
4747600.007$ 2.43Spring
4864590.008$ 9.22Vacuum Take-Off Cover
4941535.021$ 1.32Pump Jet Gasket
5047605.012$ 2.51Throttle Return Spring
5152210.006$ 1.61Spring Anchor Plate
5264625.012$ 8.61Throttle Stop Screw
5358602.003$ 9.91Pump Plunger
5464330.003$ 9.22Starter Valve
5547600.105$ 4.62Starter Valve Spring
5664750.003$ 42Idle Mixture Screw
5776801.040$ 7.42Pump Jet
5841565.009-2Pump Jet ´O´ Ring
5961015.008$ 11.92Pump Jet Cover
6047600.064$ 7.31Pump Rod Spring
6110410.015$ 9.21Pump Rod
6275507.085$ 15.82Starter Jet
6358300.003-2Pump Demand Valve Ball
6452730.001$ 5.22Pump Valve Weight
6561015.006$ 5.22Pump Demand Valve Cover
6683102.120-1Needle Valve Gasket
6741530.031-1Fuel Union Gasket
6810536.035$ 10.61Fuel Union
6941530.024-1Fuel Union Gasket
7012715.008$ 91Fuel Union Bolt
7161015.009$ 7.92Progression Hole Inspection Cov
7252000.001$ 2.51Float Pin
7364605.017$ 1.81Choke Cable Clamp
7477505.150$ 9.22Starter Air Jet
7531734.197$ 801Carburetor Top Cover
7652130.003$ 2.61Plate
7755510.128$ 32Washer
7832650.001$ 5.22Bearing
7941575.019$ 3.42O´ Ring
8052135.024$ 6.61Inspection Cover
8141640.021$ 1.31Gasket
8258445.001-1Pin
8332374.008$ 18.71Cover
8445082.005$ 15.41Pump Cam
8510005.446$ 38.31Throttle Spindle
8655555.010$ 2.62Washer
8710536.034$ 18.21Fuel inlet T pipe
88ST2283$ 1.31Blanking plate gasket
8952135.008$ 51Blanking plate
9045048.149$ 23.81Balance lever

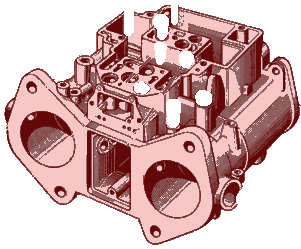

91-1Carburetor body
92ST1936$ 7.91Universal lever
93ST2460$ 6.61Ball end Left thread
94ST1937$ 6.61Ball end Right thread
95ST2559$ 291Rod with ball ends
9637000.016$ 5.91Filter Screen
9764605.017$ 1.81Fixing Bolt
9847610.006$ 9.91Return Spring
99-1Cold start wire screw with nut
