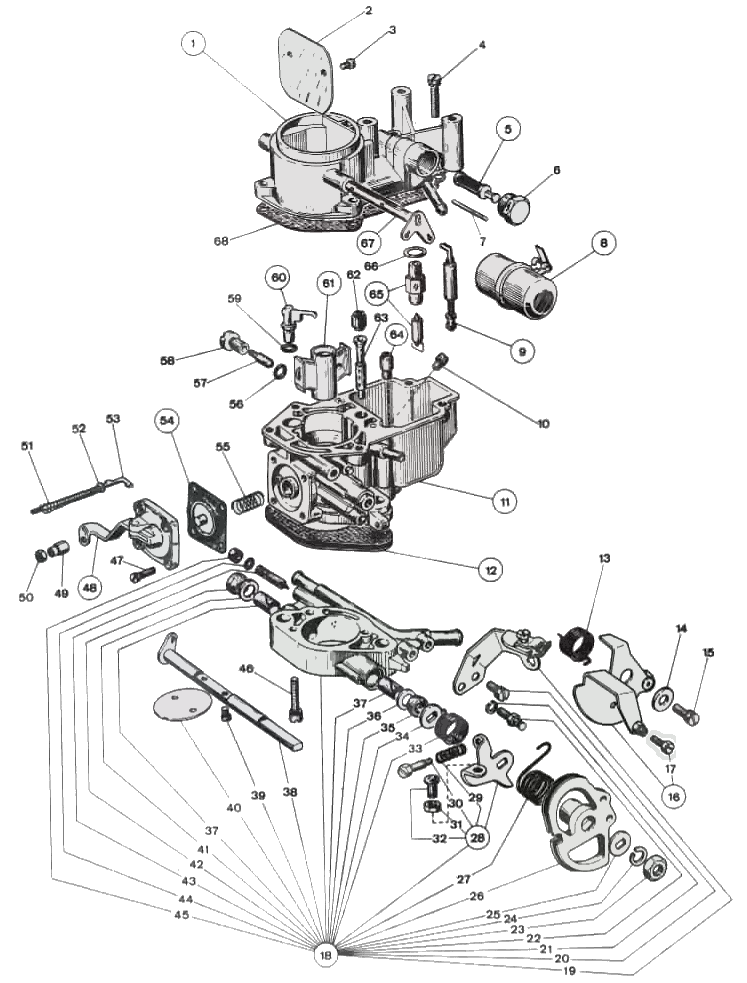

WEBER 34 IBP parts diagram

- click on part to see more

List of parts:

No	Part No	Price	Pcs	Description
1	31706.092	-	1	Carburetor top cover
2	64010.021	-	1	Choke throttle valve
3	64525.003	-	2	Choke plate fixing screw
4	64700.005	-	5	Top Cover Fixing Screw
5	37022.004	$ 14	1	Filter element
6	61002.019	-	1	Fuel Filter Cover
7	52000.010	$ 2.5	1	Float Fulcrum Pin
8	41015.019	$ 63.2	1	Float
9	61287.061	-	1	Choke rod
10	73801.145	$ 5.4	1	Main Jet
11		-	1	Carburettor body
12	39152.022	-	1	Base Spacer Heat Gasket
13	47610.056	$ 5.7	1	Spring
14	55510.002	$ 1.7	1	Spring Washer
15	64700.012	$ 3.3	1	Lever Fixing Screw
16	45202.169	-	1	Choke Lever
17	64615.004	-	1	- Screw securing wire
18	67006.070	-	1	Carburettor shaft base. including:
19	58702.051	-	1	— Sheat Support
20	64700.012	$ 3.3	1	Lever Fixing Screw
21	55525.003	-	1	— Rosetta elastica per vite comando acceler.
22	64880.013	-	1	— Vite lissaggio supporlo com acceleratore
23	34715.014	$ 1.4	1	Throttle Spindle Nut
24	55525.004	-	1	— Rosetta elastica per dado alberino princip.
25	55525.003	-	1	— Rosetta per dado alberino principale
26	45046.071	-	1	— Throttle lever
27	47610.157	-	1	— Molla richiamo leva comando farfalla
28	45041.212	-	1	— Leva di comando completa dii
29	47600.007	$ 3.1	1	Idle Mixture Screw Spring
30	64625.006	-	1	— — Vite registro farfalla
31	34715.006	-	1	— Cold Start Nut
32	64595.009	-	1	— Screw
33	47610156	-	1	— Molla richiamo leva comando farfalla
34	55555.016	$ 2.3	1	Shaft Spacer
35	41575.010	$ 7.1	1	Bushing
36	55510.087	-	1	— Rosetta ritegno piastrina supporto alberino
37	52130.010	$ 6.6	2	— Piastrina supporto alberino
38	10015.534	-	1	— Alberino principale
39	64520.023	-	2	Throttle Plate Screw
40	64005.007	-	1	— Throttle valve
41	55510.087	-	1	— Rosetta ritegno piastrina supporto alberino
42	41575.010	$ 7.1	1	Bushing
43	84750.074	-	1	— Vite registro miscela minimo
44	41565.010	-	1	Idle Mixture Screw O Ring
45	61075.014	-	1	Idle mixture tamper proof plug
46	64700.010	-	1	Fixing Screw
47	64565.002	-	4	Pump Cover Screw
48	32486.066	-	1	Accelerator Pump Cover
49	12800.166	$ 10.3	1	Boccola per bramino comando pompa
50	34710.009	-	1	Fixing nut
51	41600.138	-	1	Pump rod spring
52	55510.019	$ 1.4	1	Spring Washer
53	61285.032	-	1	Pump Rod
54	47407.045	-	1	Pump diaphragm
55	47600.107	$ 12.4	1	Pump Spring
56	41565.601	-	1	O-Ring For Idle Jet Holder
57	74408.045	$ 8.8	1	Idle Jet
58	52570.011	$ 13.9	1	Idle Jet Holder
59	41545.001	-	1	Pump Jet Gasket
60	76413.050	-	1	Getto pompe
61	70515.450	-	1	Auxiliary Venturi
62	77201.190	$ 4.3	1	Getto aria di treno
63	61446.229	-	1	Emulsion Tube
64	79701.000	$ 13.1	1	Back bleed valve
65	79607.150	-	1	Float valve
66	83102.070	-	1	Needle valve gasket
67	10015.288	-	1	Alberino avvlamento
68	41700.006	-	1	Carburettor Cover Gasket

WEBER 34 IBP
