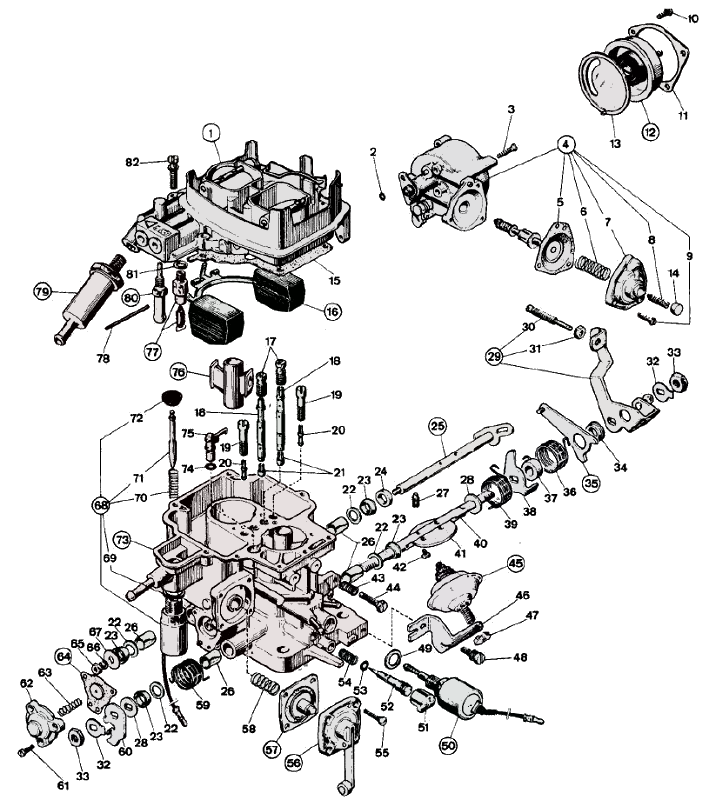

WEBER 32 DCOF 2 parts diagram
- click on part to see more
List of parts:
| No | Part No | Price | Pcs | Description |
| S | 41360.001 | $ 3.1 | 2 | Air bleed jet |
| 1 | 31736.005 | $ 0 | 1 | Carburetor top cover |
| 2 | 64700.005 | $ 0.6 | 4 | Top Cover Fixing Screw |
| 3 | 55510.034 | $ 0.4 | 4 | Spring Washer |
| 4 | 41705.030 | $ 0 | 1 | Carburettor Cover Gasket |
| 5 | | $ 0 | 1 | |
| 6 | 61440.515 | $ 0 | 2 | Emulsion Tube |
| 7 | 64750.001 | $ 6.6 | 1 | Idle Mixture Screw |
| 8 | 47600.007 | $ 2.4 | 1 | Idle Mixture Screw Spring |
| 9 | 64590.002 | $ 9.6 | 1 | Throttle Stop Screw |
| 10 | 47600.007 | $ 2.4 | 1 | Idle Mixture Screw Spring |
| 11 | 61015.006 | $ 5 | 2 | Pump Demand Valve Cover |
| 12 | 52730.001 | $ 5 | 2 | Pump Valve Weight |
| 13 | 58300.001 | $ 0.3 | 2 | Pump Valve Ball |
| 14 | 61015.006 | $ 5 | 2 | Pump Demand Valve Cover |
| 15 | 61015.004 | $ 7.3 | 1 | Inspection Screw |
| 16 | 58700 022 | $ 0 | 1 | Choke Cable Bracket |
| 17 | 64700.003 | $ 0 | 1 | Lever Fixing Screw |
| 18 | 64605.017 | $ 1.9 | 1 | Choke Cable Clamp |
| 19 | 41565.008 | $ 0.8 | 1 | O ring |
| 20 | 57804.021 | $ 0 | 1 | Dispositivo di sgolfamento comprendente |
| 21 | 61015.003 | $ 0 | 1 | — Tappo |
| 22 | 64595 005 | $ 0 | 1 | — Diaphragm adjusting screw |
| 23 | 64700.004 | $ 0.8 | 3 | Pump Cover Screw |
| 24 | 32384.009 | $ 0 | 1 | — Coperchio scatola |
| 25 | 47600.070 | $ 0 | 1 | — Diaphragm loading spring |
| 26 | 47407.040 | $ 30.6 | 1 | — Membrana completa |
| 27 | 57804.022 | $ 0 | 1 | — Scatola con boccola |
| 28 | 64700.010 | $ 0 | 2 | Fixing Screw |
| 31 | 55530.008 | $ 3.8 | 1 | Spring Ring |
| 32 | 34715 006 | $ 0 | 1 | Nut |
| 33 | 45027.084 | $ 0 | 1 | Lever |
| 38 | 34715.014 | $ 1 | 1 | Throttle Spindle Nut |
| 39 | 55520.002 | $ 1 | 1 | Shaft Lock Tab |
| 40 | 45034.029 | $ 27.2 | 1 | Throttles control lever |
| 41 | 47610.071 | $ 4.1 | 1 | Throttle Return Spring |
| 42 | 55555.019 | $ 1.5 | 1 | Shaft Spacer |
| 43 | 64520.024 | $ 0 | 4 | Throttle Plate Screw |
| 44 | 64005.092 | $ 0 | 2 | Throttle Valve |
| 45 | 10005 411 | $ 0 | 1 | Throttle Shaft |
| 45 | 10006.409 | $ 0 | 1 | Primary Throttle Shaft - Oversized |
| 46 | 64700.012 | $ 2.9 | 1 | Lever Fixing Screw |
| 47 | 12775.010 | $ 9.2 | 1 | Bushing For Lever |
| 48 | 45095.022 | $ 0 | 1 | Leva a squadro comprendente |
| 49 | 64615.004 | $ 0 | 1 | - Screw securing wire |
| 50 | 45096.021 | $ 0 | 1 | — Leva a squadro |
| 51 | 14852.004 | $ 0 | 1 | Pump Cam |
| 52 | 58445.001 | $ 0.4 | 1 | Fixing Pin |
| 53 | 61280.039 | $ 0 | 1 | Tirammo comando avviamento |
| 54 | 47670.002 | $ 5.2 | 1 | Compression Spring |
| 55 | 39174.009 | $ 0 | 1 | Flangia pompa |
| 56 | 47407.039 | $ 0 | 1 | Pump diaphragm |
| 57 | 32486.025 | $ 0 | 1 | Accelerator Pump Cover |
| 58 | 64700.019 | $ 0 | 4 | Pump Cover Screw |
| 59 | 64700.004 | $ 0.8 | 2 | Pump Cover Screw |
| 60 | 47600.107 | $ 3.7 | 1 | Pump Spring |
| 61 | 41640.019 | $ 5.7 | 1 | Guarnizione per flangia pompa |
| 62 | 41120.001 | $ 4 | 2 | Main jet |
| 63 | 50002.004 | $ 0 | 1 | Shaft Bushing |
| 64 | 47600.027 | $ 4 | 1 | Bush retaining spring |
| 65 | 45082.007 | $ 0 | 1 | Leva registro minimo veloce comprendente |
| 66 | 45080.012 | $ 0 | 1 | — Throttle Lever |
| 67 | 34705.002 | $ 0 | 1 | — Cold Start Nut |
| 68 | 64520.028 | $ 0 | 1 | Throttles adjusting screw |
| 69 | 45082.006 | $ 0 | 1 | Fast idling loose lever |
| 70 | 55520.003 | $ 0 | 1 | Shaft Lock Tab |
| 71 | 34710.003 | $ 1 | 1 | Throttle Spindle Nut |
| 72 | 47605.006 | $ 0 | 1 | Spindle return spring |
| 73 | 64520.029 | $ 0 | 1 | Fixing Screw |
| 74 | 55530.008 | $ 3.8 | 1 | Spring Ring |
| 75 | 12775.010 | $ 9.2 | 1 | Bushing For Lever |
| 76 | 45032.104 | $ 0 | 1 | Choke Lever |
| 77 | 47610.003 | $ 5.2 | 1 | Choke lever return spring |
| 78 | 12775.010 | $ 9.2 | 1 | Bushing For Lever |
| 79 | 64700.012 | $ 2.9 | 1 | Lever Fixing Screw |
| 80 | 32610.006 | $ 0 | 1 | — Spilt pin |
| 81 | 61280.040 | $ 0 | 1 | Tie rod |
| 82 | 64525.003 | $ 0 | 4 | Choke plate fixing screw |
| 83 | 64005.012 | $ 0 | 2 | Choke throttle valve |
| 84 | 10020.217 | $ 0 | 1 | Choke shaft |
| 85 | 45200.033 | $ 0 | 1 | Lever |
| 86 | 64955 104 | $ 0 | 4 | Stud |
| 87 | | $ 0 | 1 | Carburettor body |
| 88 | 41030.006 | $ 0 | 1 | Float |
| 89 | 41160.003 | $ 3.1 | 2 | Idle jet |
| 90 | 52570.003 | $ 15.5 | 2 | Idle Jet Holder |
| 91 | 64240.008 | $ 0 | 1 | Float valve |
| 92 | 41535.015 | $ 0 | 1 | Needle valve gasket |
| 93 | 52000.015 | $ 1.9 | 1 | Float pivot |
| 94 | 37022.002 | $ 5.5 | 1 | Filter element |
| 95 | 41530.024 | $ 0.3 | 1 | Fuel Filter Gasket |
| 96 | 61002.010 | $ 6.7 | 1 | Fuel Filter Cover |
Download exploded view as PDF
