| No | Part No | Price | Pcs | Description |
| 1 | 31716.057 | - | 1 | Carb Top Cover |
| 2 | 64700.005 | - | 4 | Top Cover Fixing Screw |
| 3 | 64700.012 | $ 3.1 | 1 | Lever Fixing Screw |
| 4 | 58702.001 | - | 1 | Sheat support Assy. including: |
| 5 | 64615.007 | - | 1 | — Screw securing wire |
| 6 | 52145.001 | - | 1 | — Sheat securing plate |
| 7 | 58700 003 | - | 1 | — Sheat Support |
| 8 | 47610 003 | - | 1 | Choke lever return spring |
| 9 | 45202 023 | - | 1 | Levier commande starter, complet de : |
| 10 | 45202.022 | - | 1 | - Lever |
| 11 | 64615.004 | - | 1 | - Screw securing wire |
| 12 | 55510.002 | $ 1.6 | 1 | Normal washer |
| 13 | 64700.012 | $ 3.1 | 1 | Lever Fixing Screw |
| 14 | 41705.022 | - | 1 | Carburetor Cover Gasket |
| 15 | 10400.012 | $ 10.4 | 1 | Pump Rod |
| 16 | 52140.007 | $ 6.9 | 1 | Plunger Spring Retaining Plate |
| 17 | 47600.029 | $ 5.5 | 1 | Pump Plunger Spring |
| 18 | 58602.009 | $ 30.2 | 1 | Pump plunger |
| 19 | 64005.094 | - | 1 | Primary Throttle Plate |
| 20 | 64520.023 | - | 4 | Throttle Plate Screw |
| 21 | 10000 448 | - | 1 | Primary Shaft |
| 21 | 10001.448 | - | 1 | Primary Throttle Shaft - Oversized |
| 22 | 47610.068 | - | 1 | Primary Shaft Return Spring |
| 23 | 55555.016 | $ 2.2 | 3 | Spring Washer |
| 24 | 45129 005 | - | 1 | Lever |
| 25 | 61280 035 | - | 1 | Carb Rod |
| 26 | 41565.010 | - | 2 | Idle Mixture Screw O Ring |
| 27 | 12775.008 | $ 6.9 | 1 | Bushing |
| 28 | 47670.003 | $ 4.9 | 2 | Rod Clamp |
| 29 | 12775.027 | $ 9.8 | 1 | Bushing For Lever |
| 30 | 45027.019 | - | 1 | Lever |
| 31 | 55530.002 | $ 3.3 | 1 | Wavy Washer |
| 32 | 45089.004 | $ 18.7 | 1 | Pivot Lever |
| 33 | 55520.002 | $ 1.1 | 2 | Shaft Lock Tab |
| 34 | 34715.014 | $ 1.1 | 2 | Throttle Spindle Nut |
| 35 | 32610.006 | - | 1 | — Spilt pin |
| 36 | 55510.056 | $ 1.6 | 1 | Flat Washer |
| 37 | 61280.022 | - | 1 | Biellette de raccord |
| 38 | 64005 095 | - | 1 | Secondary Throttle Plate |
| 39 | 10016.429 | - | 1 | Secondary Throttle Shaft Oversized |
| 39 | 10015.451 | - | 1 | Secondary Throttle Shaft |
| 40 | 47610.003 | $ 5.5 | 1 | Choke lever return spring |
| 41 | 34720.004 | - | 1 | Nut |
| 42 | 64585 005 | - | 2 | Primary throttle adjusting screw |
| 43 | 61015.004 | $ 7.7 | 2 | Inspection Screw |
| 44 | 52570.003 | $ 16.4 | 2 | Idle Jet Holder |
| 45 | 41160.001 | $ 6.8 | 1 | Idle jet |
| 46 | 41160.001 | $ 6.8 | 1 | Idle jet |
| 47 | 61015.009 | $ 7.9 | 2 | Inspection Screw |
| 48 | 64750.012 | $ 15.3 | 1 | Idle Mixture Screw |
| 49 | 47600.007 | $ 2.4 | 2 | Idle Mixture Screw Spring |
| 50 | 61015.001 | $ 10.4 | 1 | Vis pour trou de ralenti accéléré |
| 51 | 47600.069 | - | 1 | Ressort pour vis de réglage de ralenti accéléré |
| 52 | 64750.005 | - | 1 | Vis de réglage de ralenti accéléré |
| 53 | 45067.004 | - | 1 | Pump Control Loosened Lever |
| 54 | 10140.301 | - | 1 | Locking Ring |
| 55 | 34720.009 | - | 1 | Nut |
| 56 | 55520.002 | $ 1.1 | 1 | Shaft Lock Tab |
| 57 | 14850.017 | - | 1 | Cam |
| 58 | 41120.001 | $ 4.1 | 1 | Main jet |
| 59 | 41120.001 | $ 4.1 | 1 | Main jet |
| 60 | 64290.001 | $ 9.6 | 1 | Back bleed valve |
| 61 | 61440.341 | $ 15.4 | 2 | Emulsion tube |
| 62 | 41360.006 | $ 3.2 | 2 | Gicleur air de freinage |
| 63 | 41015.010 | - | 1 | Float |
| 64 | 52000.015 | $ 2 | 1 | Float pivot |
| 65 | 47620.003 | - | 1 | Needle valve clip |
| 66 | 64235.009 | - | 1 | Float valve |
| 67 | 41535.015 | - | 1 | Needle valve gasket |
| 68 | 64570.009 | - | 2 | Inspection Cover Fixing Screw |
| 69 | 52135.011 | - | 1 | Inspection plate |
| 70 | 41640.034 | - | 1 | Inspection plate Gasket |
| 71 | 58602.008 | - | 1 | Choke plunger |
| 72 | 55510.009 | $ 2.2 | 1 | Flat Washer |
| 73 | 34705.001 | - | 2 | Secondary shaft fixing nut |
| 74 | 55510.046 | $ 2.4 | 1 | Washer for loose lever |
| 75 | 45027 024 | - | 1 | Starter Control Lever |
| 76 | 61002.013 | - | 1 | Fuel Filter Inspection Cover |
| 77 | 37020.002 | $ 5.5 | 1 | Fuel Filter Element |
| 78 | 55530.005 | $ 5.9 | 1 | Spring Ring |
| 79 | 41252.004 | $ 15.3 | 1 | Pump jet |
| 80 | 64290 005 | - | 1 | Pump Demand Valve |
| 81 | 64010.002 | - | 1 | Choke throttle valve |
| 82 | 10015.207 | - | 1 | Choke shaft |
| 83 | 64570.007 | $ 2.5 | 2 | Throttle Plate Screw |
| 84 | 47605.006 | - | 1 | Spindle return spring |
| 85 | 10304.021 | - | 1 | Bague élastique de rétention soupape |
| 86 | 64372.001 | - | 1 | Soupape conique |
| 87 | - | - | 1 | Carburetor Body |
| 88 | 12750.010 | - | 1 | Bushing |
| 89 | 45138.003 | - | 1 | Lever |
| 90 | 52000.004 | - | 1 | Pin |
| 91 | 61060.001 | - | 1 | Filter Washer |
| 92 | | - | | |

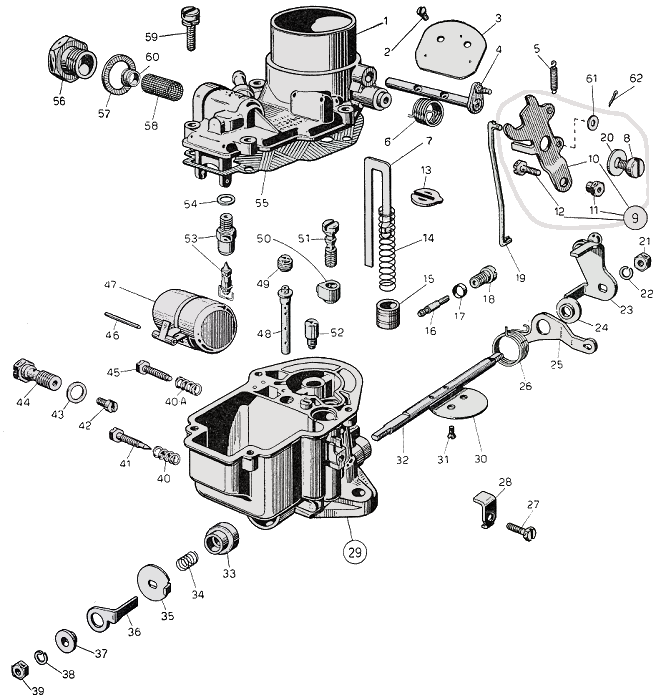

Download exploded view as PDF
