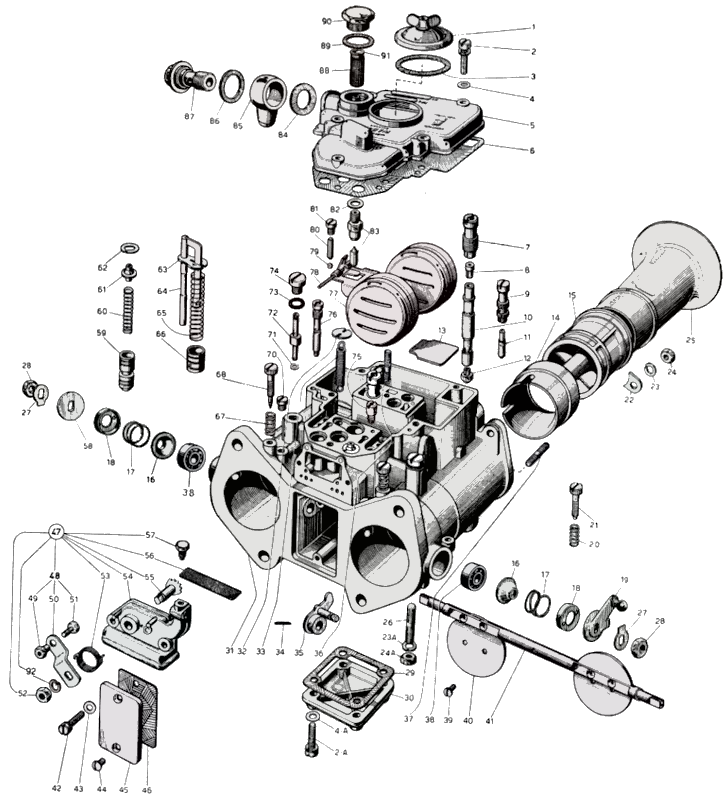

WEBER 42 DCOE 8 parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
0$ 0
132376.003$ 11.91Jet inspection cover
264700.001$ 0.65Top Cover Screw
264700.001$ 0.64Carb Cover Fixing Screw
341550.002$ 0.41Jet Inspection Cover Gasket
455510.034$ 0.55Spring Washer
455510.034$ 0.54Spring Washer
531734.012$ 01Carburetor top cover
641715.001$ 3.81Carburettor Cover Gasket
752580.001$ 13.22Emulsion Tube Holder
841365.001$ 2.72Air corrector
952585.006$ 12.22Idle Jet Holder
1061450.032$ 12.12Emulsion Tube
1141165.052$ 3.42Idle Jet
1241110.001$ 2.72Main jet
1352130.003$ 31Plate
1434926.010$ 02Choke tube
1531886.002$ 02Aux venturi
1641570.001$ 1.12Dust Cover
1747600.063$ 2.22Spring
1858000.007$ 3.22Retaining Cover
1945034.044$ 01Throttle Lever
2047600.007$ 2.61Spring for throttle adjusting screw
2164590.002$ 10.91Throttle Stop Screw
2252150.005$ 04Air Horn Fixing Tab
2355525.002$ 04Spring Washer
2355525.002$ 01Spring Washer
2434705.004$ 0.74Air horn fixing nut
2434705.004$ 0.71Air horn fixing nut
2552840.009$ 02Air horn
2664955.104$ 01Stud
2755520.004$ 1.12Throttle Shaft Lock Washer
2834710.003$ 1.12Throttle Spindle Nut
2941640.001$ 2.91Bottom cover gasket
3032374.008$ 21.31Bottom Bowl Cover
31-$ 01Carburetor Body
3252210 006$ 01Spring Anchor Plate
3347605.012$ 3.41Throttle Return Spring
3458445.001$ 0.51Fixing Pin
3545082.005$ 16.41Pump Cam
3664955.007$ 13.81Inspection cover stud
3764955.104$ 04Stud
3832650.001$ 1.82Throttle Shaft Bearing
3964570.006$ 3.14Throttle Plate Screw
4064005.067$ 19.42Throttle plate
4110005.423$ 01Throttle Shaft
4264700.004$ 0.92Pump Cover Screw
43- 55510.038$ 02Washer
4464570.009$ 0.82Inspection Cover Fixing Screw
4552135.002$ 8.71Inspection cover
4641640.021$ 0.71Pump cover gasket
4732556.002$ 34.21Cold Start Unit
4845027.030$ 01— Cold Start Lever Assembly
4934720.002$ 10.91— Cold Start Nut
5045025.029$ 01— Cold Start Lever
5164800.002$ 01— Cold Start Bolt
5234715.010$ 01— Lever fixing nut
5347610.006$ 41— Lever return spring
5432556.001$ 01— Cold Start Unit
5510085.003$ 01— Starting shaft
5637000.016$ 4.31— Filter Screen
5764605.017$ 2.11— Choke Cable Clamp
5855555.010$ 2.51Washer For Shaft
5964330.003$ 8.72Starter valve
6047600.005$ 2.22Starter Valve Spring
6112775.004$ 4.12Spring guide and retainer
6210140.010$ 3.62Clip
6352140.004$ 3.11Pump Screen retainer
6410410.015$ 17.11Pump Rod
6547600.064$ 3.11Pump rod spring
6658602.003$ 8.71Pump plunger
6747600.007$ 2.62Idle Mixture Screw Spring
6864750.001$ 7.22Idle Mixture Screw
7061015.002$ 92Progression Hole Plug
7141535.021$ 1.32Pump Jet Gasket
7241280.001$ 5.72Pump Jet
7341565.009$ 0.72Pump Jet Cover O ring
7461015.008$ 92Pump jet cover
7564290.001$ 10.31Back bleed valve
7641205.101$ 12.52Starter Jet
7741030.004$ 39.31Brass Float
7852000.001$ 2.11Float pin
7958300.001$ 0.32Pump Valve Ball
8052730.001$ 5.52Pump Valve Weight
8161015.006$ 5.52Pump Demand Valve Cover
8241535.015$ 01Needle valve gasket
8364240.004$ 8.51Float valve
8441530.031$ 0.31Fuel union gasket
8510354.001$ 01Fuel Banjo
8641530.024$ 0.31Fuel Union Gasket
8712715.008$ 8.71Fuel Union Bolt
8837020.005$ 5.91Fuel Filter Element
8941530.024$ 0.31Fuel Filter Gasket
9061002.010$ 7.31Fuel Filter Cover
9112775.026$ 3.41Filter Locating Ring
9255525.010$ 0.51— Spring washer
