Carb manufacturer: Carb model:
   Download exploded view as PDF

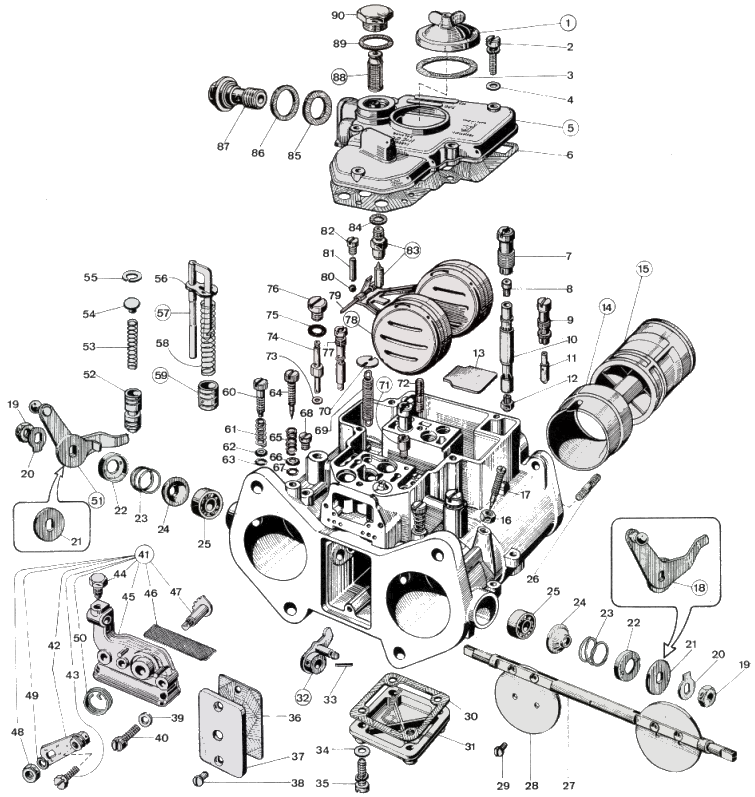

WEBER 38 DCOE 59/60 parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
0-$ 01Carburetor Body
132376.003$ 111Jet inspection cover
264700.001$ 0.65Top cover fixing screw
341550.002$ 0.41Jet inspection cover gasket
455510.034$ 0.45Spring Washer
531734.071$ 01Carburetor top cover
531734.070$ 01Carburetor top cover
641715.007$ 01Carburettor Cover Gasket
752580.001$ 12.22Emulsion Tube Holder
841365.001$ 2.52Air corrector
952585.006$ 11.32Idle Jet Holder
1061450.033$ 02Emulsion Tube
1141165.058$ 3.22Idle Jet
1241110.001$ 2.52Main jet
1352130.003$ 2.71Plate
1434926.002$ 16.52Choke tube
1531906.006$ 02Auxiliary venturi
1634705.001$ 0.82By-pass screw lock nut
1764750.002$ 82Air by-pass screw
1845034.094$ 01Throttle Lever
1934710.003$ 1.12Throttle Shaft Nut
2055520.004$ 1.12Shaft Lock Tab
2155555.010$ 2.31Washer For Shaft
2155555.010$ 2.31Washer For Shaft
2258000.007$ 2.92Retaining Cover
2347600.063$ 22Spring
2441570.001$ 1.12Leather Seal
2532650.001$ 1.62Throttle Shaft Bearing
2664955.103$ 02Stud
2710005.401$ 31.71Throttle Shaft
2864005.047$ 02Throttle Valve
2964570.006$ 2.94Throttle Plate Screw
3041640.001$ 2.71Bottom cover gasket
3132374.008$ 19.71Bottom Cover
3245082.005$ 15.21Pump Cam
3358445.001$ 0.41Fixing Pin
3455510.034$ 0.44Washer
3564700.001$ 0.64Fixing Screw
3641640.021$ 0.71Inspection cover gasket
3752135.024$ 5.31Inspection plate
3864570.009$ 0.82Inspection Cover Fixing Screw
3955510.038$ 02Flat Washer
4064700.004$ 0.82Choke cover fixing screw
4132556.023$ 01Cold Start Unit
4245027.103$ 01— Cold Start Lever
4364615.004$ 01- Screw securing wire
4464605.017$ 1.91Choke Cable Clamp
4532554.003$ 01Cold start unit
4637000.016$ 41Filter Screen
4710085.009$ 01Choke Control Shaft
4834715.010$ 01— Lever fixing nut
4955525.010$ 0.41— Spring washer
5047610.042$ 3.71- Spring
5145034.093$ 01Throttle Valve Control Lever
5264330.003$ 82Starter valve
5347600.005$ 22Starter Valve Spring
5412775.059$ 02Spring guide and retainer
5510140.010$ 3.32Circlip
5652140.004$ 2.81Pump Screen retainer
5710410.024$ 15.81Pump control rod
5847600.055$ 2.91Pump spring
5958602.003$ 81Pump plunger
6064585.005$ 01Throttle stop screw
6147600.007$ 2.41Throttle Stop Screw Spring
6258000.006$ 21Throttle Stop Screw O Ring Cap
6341565.002$ 0.41Throttle Stop Screw ´O´ Ring
6464750.023$ 6.62Idle mixture adjusting screw
6547600.007$ 2.42Idle Mixture Screw Spring
6658000.006$ 22Idle Mixture Screw Cup Washer
6741565.002$ 0.42Idle Mixture Screw ´O´ Ring
6861015.002$ 8.32Progression Hole Plug
6947605.009$ 3.21Throttle Return Spring
7052210.006$ 1.61Spring Anchor Plate
7164290.001$ 9.51Back bleed valve
7264955.007$ 12.21Inspection cover stud
7341535.021$ 1.22Pump Jet Gasket
7441280.001$ 5.32Pump Jet
7541565.009$ 0.62Pump Jet Cover O ring
7661015.008$ 8.32Pump jet cover
7741205.101$ 11.52Starter Jet
7841030.004$ 40.61Brass Float
7952000.001$ 21Float Fulcrum Pin
8058300.001$ 0.32Pump Valve Ball
8152730.001$ 5.12Pump Valve Weight
8261015.006$ 5.12Pump Demand Valve Cover
8364240.004$ 7.91Float valve
8441535.015$ 01Needle valve gasket
8541530.031$ 0.31Fuel Union Gasket
8641530.024$ 0.31Fuel Union Gasket
8712715.008$ 81Fuel Union Bolt
8837022.002$ 5.51Fuel Filter
8941530.024$ 0.31Fuel Filter Gasket
9061002.010$ 6.81Fuel Filter Inspection Cover

WEBER 38 DCOE 59/60 - exploded view
