| No | Part No | Price | Pcs | Description |
| 1 | 32376.003 | $ 15.2 | 1 | Jets inspection cover |
| 2 | 64700.001 | - | 5 | Screw securing carburetor cover |
| 2 A | 64700.001 | - | 4 | Securing screw for well-bottom cover |
| 3 | 41550.002 | $ 1.4 | 1 | Gasket for jets inspection cover |
| 4 A | 55510.034 | - | 4 | Normal washer |
| 4 | 55510.034 | - | 5 | Normal washer |
| 5 | 31734.025 | $ 107 | 1 | Carburetor cover |
| 6 | 41715.001 | $ 8.3 | 1 | Gasket for carburetor cover |
| 7 | 52580.001 | $ 9.2 | 2 | Emulsioning tube holder |
| 8 | 77401 | $ 6.3 | 2 | Air corrector jet |
| 9 | 52585.006 | $ 10.8 | 2 | Idling jet-holder |
| 10 | 61450 | $ 37.6 | 2 | Emulsioning tube |
| 11 | 74819 | - | 2 | Idling jet |
| 12 | 73401 | $ 5.4 | 2 | Main jet |
| 13 | 52130.003 | $ 3.3 | 1 | Plate for carburetor bowl |
| 14 | 72116 | $ 18.4 | 2 | Choke |
| 15 | 69602 | $ 35.1 | 2 | Auxiliary venturi |
| 16 | 41570.001 | $ 1.4 | 2 | Dust cover |
| 17 | 47600.063 | $ 2.8 | 2 | Spring |
| 18 | 58000.007 | $ 3.9 | 2 | Spring retaining cover |
| 19 | 45034.044 | - | 1 | Throttle control lever |
| 20 | 47600.007 | $ 3.2 | 1 | Throttle adjusting spring |
| 21 | 64590.002 | $ 2.8 | 1 | Throttle adjusting screw |
| 22 A | 64840.003 | $ 6.7 | 2 | Choke fixing screw |
| 22 | 64340.003 | - | 2 | Auxiliary venturi fixing screw |
| 23 A | 55525.002 | - | 4 | Spring washer |
| 23 | 55525.002 | - | 1 | Spring washer |
| 24 | 34705.004 | - | 1 | Carburetor anchoring nut |
| 24 A | 34705.004 | - | 4 | Nut for air intake |
| 25 | 52150.004 | $ 1.6 | 4 | Retaining plate for air intake |
| 26 | 64955.104 | - | 1 | Stud bolt |
| 27 | 55520.004 | $ 1.4 | 2 | Lock washer |
| 28 | 34710.003 | $ 1.4 | 2 | Hexagonal nut |
| 29 | 41640.001 | $ 5.1 | 1 | Gasket for cap |
| 30 | 32374.008 | $ 23.6 | 1 | Cap for bottom of bowl |
| 31 | - | - | 1 | Carburetor body |
| 32 | 52210.006 | $ 2.2 | 1 | Spring anchoring plate |
| 33 | 47605.012 | $ 3.2 | 1 | Spindle return spring |
| 34 | 58445.001 | - | 1 | Lever fixing pin |
| 35 | 45082.005 | $ 20.4 | 1 | Pump control lever |
| 36 | 64955.007 | $ 13.8 | 1 | Stud bolt |
| 37 | 64955.101 | $ 25.1 | 4 | Stud bolt |
| 38 | 32650.001 | $ 6.6 | 2 | Ball bearing |
| 39 | 64570.006 | $ 4.1 | 4 | Throttle securing screw |
| 40 | 64005.069 | $ 40.8 | 2 | Throttle valve |
| 41 | 10005.401 | $ 48.3 | 1 | Throttle spindle |
| 42 | 64700.004 | $ 4 | 2 | Starter control securing screw |
| 43 | 55510.038 | - | 2 | Normal washer |
| 44 | 64570.009 | $ 1 | 2 | Cap securing screw |
| 45 | 52135.002 | $ 8.3 | 1 | Cap for pump opening |
| 46 | 41640.021 | $ 1.6 | 1 | Gasket for cap |
| 47 | 32556.002 | $ 44.7 | 1 | Starter control, including: |
| 48 | 45027.030 | - | 1 | — Starter control lever, complete with: |
| 49 | 34720.002 | $ 7.7 | 1 | — Nut for screw |
| 50 | 45025.029 | $ 9 | 1 | — Starter lever |
| 51 | 64800.002 | $ 8.7 | 1 | — Cable securing screw |
| 52 | 34715.010 | - | 1 | — Lever securing nut |
| 53 | 47610.006 | $ 12.4 | 1 | — Lever return spring |
| 54 | 32556.001 | - | 1 | — Cover for sheath support |
| 55 | 10085.003 | $ 9 | 1 | — Starter shaft |
| 56 | 37000.016 | $ 7.6 | 1 | — Strainer |
| 57 | 64605.017 | $ 2 | 1 | — Sheath securing screw |
| 58 | 55555.010 | $ 3.3 | 1 | Shim washer |
| 59 | 64330.003 | $ 11.7 | 2 | Starter valve |
| 60 | 47600.005 | $ 2.8 | 2 | Spring for starter valve |
| 61 | 12775.004 | $ 5.8 | 2 | Spring retainer and guide |
| 62 | 10140.010 | $ 4.5 | 2 | Spring washer |
| 63 | 52140.004 | $ 4.9 | 1 | Spring retaining plate |
| 64 | 10410.015 | $ 11.7 | 1 | Pump control rod |
| 65 | 47600.064 | $ 9.2 | 1 | Spring for plunger |
| 66 | 58602.003 | $ 12.4 | 1 | Pump plunger |
| 67 | 47600.007 | $ 3.2 | 2 | Spring for idling adjustment screw |
| 68 | 64750.001 | $ 5.1 | 2 | Idling adjustment screw |
| 69 | 52840.001 | $ 32.8 | 2 | Air intake horn |
| 70 | 61015.002 | $ 10 | 2 | Screw for progression holes inspection |
| 71 | 41535.021 | $ 1.4 | 2 | Gasket for pump jet |
| 72 | 76801 | $ 9.3 | 2 | Pump jet |
| 73 | 41565.009 | - | 2 | Seal |
| 74 | 61015.008 | $ 15 | 2 | Screw plug |
| 75 | 79701 | $ 13.2 | 1 | Intake and discharge valve |
| 76 | 75606 | $ 20 | 2 | Starter jet |
| 77 | 41030.004 | $ 41.6 | 1 | Float |
| 78 | 52000.001 | $ 3.2 | 1 | Fulcrum pin |
| 79 | 58300.001 | $ 1.6 | 2 | Ball for valve |
| 80 | 52730.001 | $ 6.6 | 2 | Stuffing ball |
| 81 | 61015.006 | $ 6.6 | 2 | Retaining screw for stuffing ball |
| 82 | 41535.015 | - | 1 | Gasket for needle valve |
| 83 | 79401 | $ 10.8 | 1 | Needle valve |
| 84 | 41530.031 | - | 1 | Gasket for union |
| 85 | 10354.001 | - | 1 | Spherical union |
| 86 | 41530.024 | - | 1 | Gasket for union |
| 87 | 12715.008 | $ 11.4 | 1 | Screw plug for union |
| 88 | 37022.002 | $ 7.4 | 1 | Strainer |
| 89 | 41530.024 | - | 1 | Gasket for filter plug |
| 90 | 61002.010 | $ 9.1 | 1 | Filter inspection plug |
| 91 | 10536.035 | $ 13.3 | 1 | Fuel Union L pipe |
| 92 | 10536.034 | $ 23 | 1 | Fuel inlet T pipe |
| 93 | ST1936 | $ 10 | 1 | Universal lever |
| 94 | ST2460 | $ 8.3 | 1 | Ball end Left thread |
| 95 | ST2559 | $ 24 | 1 | Rod with ball ends |
| 96 | ST1937 | $ 8.3 | 1 | Ball end Right thread |
| 97 | 45048.149 | $ 30 | 1 | Balance lever |
| 98 | ST2283 | $ 1.6 | 1 | Blanking plate gasket |
| 99 | 52135.008 | $ 6.2 | 1 | Blanking plate |
| 100 | 45048.007 | $ 17.6 | 1 | Throttle lever |

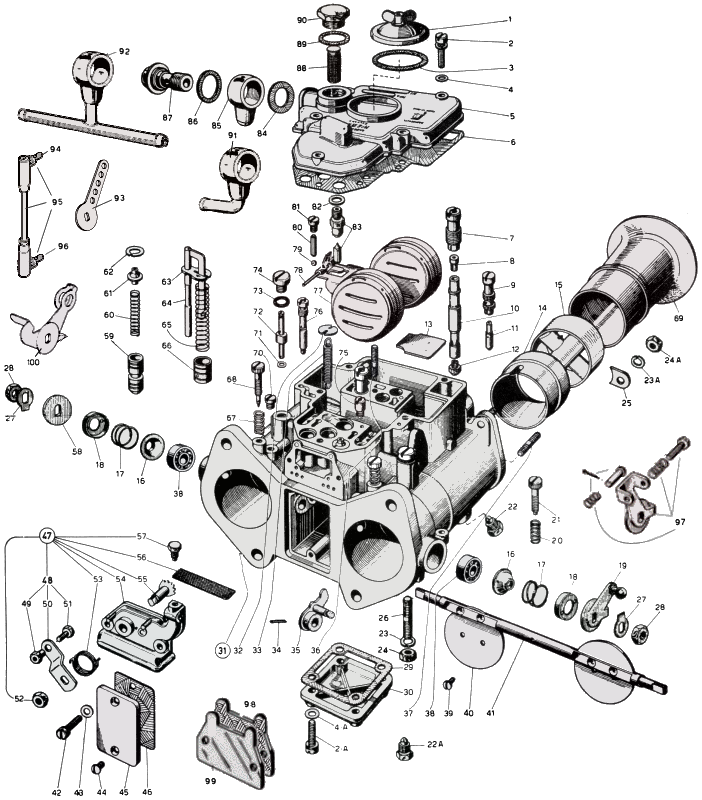

Download exploded view as PDF
