WEBER 22 IM parts diagram


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
131706.002-1Carburetor top cover
237020.005$ 61Fuel Filter Element
341530.024-1Fuel Filter Gasket
461002.011-1Fuel Filter Cover
541700.009-1Carburettor Cover Gasket
641360.001$ 3.51Air bleed jet
712775.005-1Spring Guide
810140.010$ 3.61Clip
941205.102$ 13.51Starter Jet
1047600.086$ 2.21Starter Valve Spring
1161440.166$ 16.61Emulsion tube
1264330.005-1Starter Valve
1341540.001$ 21Gasket
1441120.001$ 4.91Main jet
1552590.001$ 111Jet Holder
1664755 006-1Idle Mixture Screw
1747600.084$ 61— Spring
17A47600.084$ 61— Spring
1864625.002$ 4.21Throtle Stop Screw
1941160.001$ 7.41Idle jet
2041555.004-1Pump Jet Cover O ring
2152570.005$ 10.81Idle Jet Holder
2234705.001-1Nut
2355525.001-1Spring Washer
2445032.068-1Throttle Valve Control Lever
25--1Carburetor Body
2612775.026$ 3.41Filter Locating Ring
2710016.205-1Oversized Throttle Shaft
2710015.210-1Throttle shaft
2864005.002-1Throttle Valve
2964570.007$ 2.72Throttle Plate Screw
3047610.004$ 5.71— Lever return spring
3155525.010-2— Spring washer
3264700.006-2Pump Cover Screw
3334715.010-1— Lever fixing nut
3332536.007-1Cold start unit including:
3445027.017$ 191— Cold Start Lever Assembly
3564800.002$ 7.61— Screw securing wire
3645025.003$ 10.41— Throttle Lever
3734720.002$ 6.61— Cold Start Nut
3834715.010-1— Choke lever nut
3947610.004$ 5.71— Lever return spring
4064605.017$ 1.71— Choke Cable Clamp
4132534.006-1— Choke Housing
4237000.015-1— Reticella filtrante aria avviamento
4310085.002-1— Starting shaft
4452000.010$ 2.21Float Fulcrum Pin
4541015.002-1Float
4664240.001-1Float valve
4741535.015-1Needle valve gasket
4864700.005-4Top Cover Fixing Screw

WEBER 22 IM

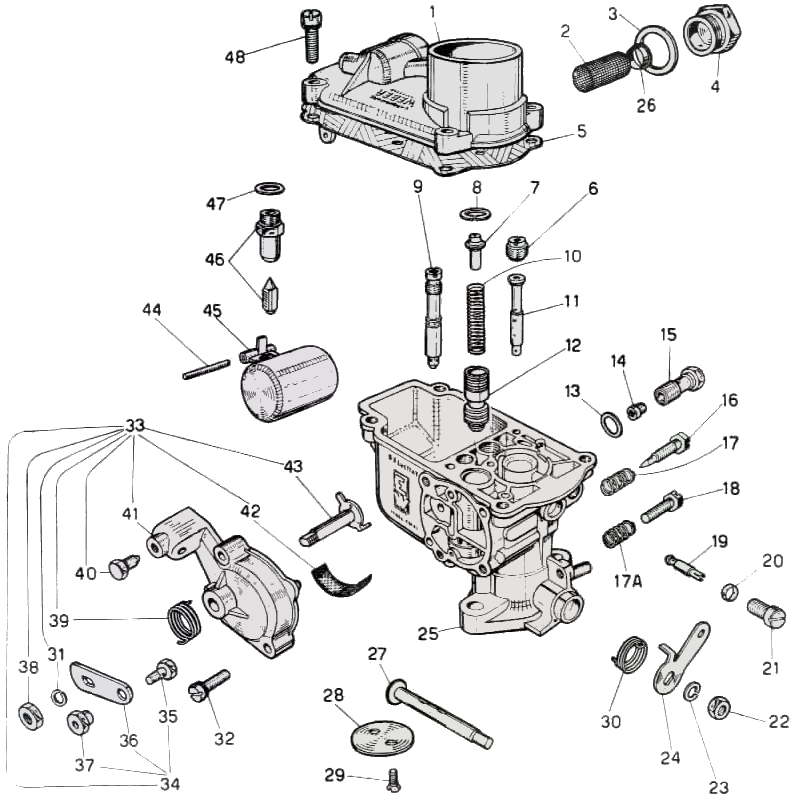

Exploded view
