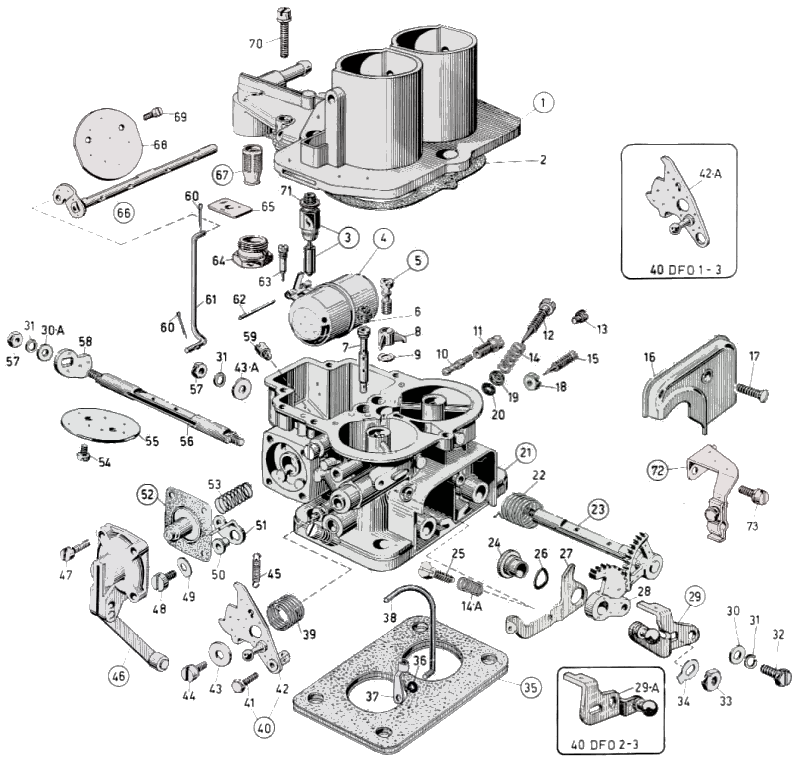

WEBER 40 DFO parts diagram


- click on part to see more




List of parts:

NoPart NoPricePcsDescription
131716.083$ 01Carb Top Cover
241705.020$ 01Carburetor Cover Gasket
364240.013$ 01Float needle valve
441015.004$ 48.51Float
564290.005$ 16.41Pump Delivery Valve
641360.001$ 2.92Air bleed jet
761440.166$ 14.12Emulsion tube
841252.013$ 11.11Pump Jet
941530.012$ 01Pump jet gasket
1041160.003$ 2.92Idle jet
1152570.005$ 6.32Idle Jet Holder
1264750.003$ 3.62Idle mixture screw
1361015.005$ 2.71Vacuum Take-Off Cover
1447600.007$ 2.21Idle Mixture Screw Spring
1447600.007$ 2.22Idle Mixture Screw Spring
1564750.010$ 02Air Adjusting Screw
1632464.004$ 01Toothed Sector Box Cover
1764570.010$ 01Inspection Cover Fixing Screw
1834705.001$ 0.72By-pass screw lock nut
1958000.006$ 1.92Idle Mixture Screw Cup Washer
2041565.002$ 0.42Idle Mixture Screw ´O´ Ring

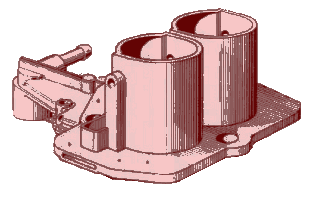

21-$ 01Carburetor Body
2247610.039$ 3.81Spindle return spring
2310015.459$ 01Throttle Shaft
2310016.451$ 01Oversized Throttle Shaft
2412765.003$ 14.71Spacer Bushing
2564625.001$ 01Throttle Stop Screw
2655530.002$ 2.81Wavy Washer
2745032.085$ 01Fast Idle Control Lever
2858202.016$ 01Throttle Shaft Gear
2945034.030$ 01Throttle Lever
2945034.060$ 01Throttle lever (40 DFO 2-3)
3055510.046$ 2.21Flat Washer
3055510.046$ 2.21Flat Washer
3155525.001$ 03Spring Washer
3264615.003$ 01Screw
3334710.003$ 11Throttle Spindle Nut
3455520.004$ 11Throttle Shaft Lock Washer
3539152.005$ 01Base Spacer Heat Gasket
3641565.010$ 01O Ring Seal
3747670.001$ 01Rod Clamp
3861280.043$ 01Tie rod
3947610.056$ 4.61Spring
4045202.042$ 01Choke lever including (40 DFO-2)
4164615.009$ 01— Screw securing wire
4245202.043$ 01— Choke Lever (40 DFO-1-3)
4245202.041$ 01— Choke Lever
4355510.002$ 1.41Flat Washer
4355510.002$ 1.41Flat Washer
4464700.012$ 2.61Lever Fixing Screw
4547605.025$ 5.11Choke return spring
4632486.019$ 01Accelerator Pump Cover
4764700.004$ 2.94Choke cover fixing screw
4864520.029$ 01Fixing Screw
4955530.008$ 3.41Washer
5012775.010$ 8.21Bushing For Lever
5145032.091$ 01Choke Lever
5247407.016$ 01Pump Diaphragm
5347600.107$ 8.91Pump Spring
5464520.023$ 2.64Throttle Plate Screw
5564005.022$ 02Throttle Valve
5610001.454$ 01Primary Throttle Shaft - Oversized
5610000.426$ 01Primary Throttle Shaft
5734705.001$ 0.72Nut
5814850.054$ 01Pump Cam
5941120.001$ 3.72Main jet
6032610.006$ 02Spilt pin
6161280.058$ 01Carburetor Rod
6252000.015$ 1.71Float pivot
6364900.001$ 10.71Pump discharge blanking needle
6461002.018$ 10.71Fuel Filter Cover
6552135.010$ 2.91Dust seal plate
6610020.216$ 01Choke Shaft
6737022.002$ 5.21Fuel Filter
6864010.011$ 02Choke plate
6964525.003$ 04Choke plate fixing screw
7064700.005$ 0.55Top Cover Fixing Screw
7141535.015$ 01Needle valve gasket
7258702.017$ 01Sheat support
7364700.012$ 2.61Sheat support fixing Screw
