| No | Part No | Price | Pcs | Description |
| 1 | 31706.035 | - | 1 | Carburetor cover Assy, including: |
| 2 | 64960.002 | - | 3 | Stud |
| 3 | 64700.005 | - | 5 | Top Cover Fixing Screw |
| 4 | 37022.002 | $ 6.4 | 1 | Filter element |
| 5 | 41535.015 | - | 1 | Needle valve gasket |
| 6 | 61002.018 | $ 13 | 1 | Fuel Filter Cover |
| 7 | 64240.008 | - | 1 | Float valve |
| 8 | 41015.011 | - | 1 | Float |
| 9 | 52000.010 | $ 2.2 | 1 | Float Fulcrum Pin |
| 10 | 64290.015 | - | 1 | Valve |
| 11 | 41530.012 | - | 2 | Pump jet gasket |
| 12 | 41252.019 | - | 1 | Pump jet |
| 13 | 41120.001 | $ 4.5 | 1 | Main jet |
| 14 | - | - | 1 | Carburetor Body |
| 15 | 47600.107 | $ 10.8 | 1 | Pump Spring |
| 16 | 47407.042 | $ 38.9 | 1 | Pump diaphragm |
| 17 | 32486.032 | - | 1 | Accelerator Pump Cover |
| 18 | 64700.019 | - | 2 | Pump Cover Screw |
| 19 | 12800.166 | $ 10 | 1 | Boccola per tirantino pompa |
| 20 | 34710.009 | - | 1 | Fixing nut |
| 21 | 47600.138 | - | 1 | Pump rod spring |
| 22 | 55510.019 | $ 1.4 | 1 | Spring Washer |
| 23 | | - | | |
| 24 | 64700.004 | $ 3.5 | 2 | Pump Cover Screw |
| 25 | 32610.005 | $ 1.6 | 2 | Spilt pin |
| 26 | 34710.003 | $ 1.2 | 1 | Throttle Spindle Nut |
| 27 | 61285.013 | - | 1 | Pump Rod |
| 27 | 55520.004 | $ 1.2 | 1 | Throttle Shaft Lock Washer |
| 28 | 45025.109 | $ 4 | 1 | Pump Cam |
| 29 | 12750.025 | - | 1 | Shaft Distance Piece |
| 30 | 55555.010 | $ 2.9 | 1 | Washer For Shaft |
| 31 | 52570.006 | $ 7.6 | 1 | Idle Jet Holder |
| 32 | 41565.002 | - | 1 | O-Ring For Idle Jet Holder |
| 33 | 41160.003 | $ 3.6 | 1 | Idle jet |
| 34 | 47800.027 | - | 1 | Bush retaining spring |
| 35 | 50002.005 | $ 8.7 | 1 | Shaft Bushing |
| 36 | 64755.009 | - | 1 | Idle Mixture Screw |
| 37 | 47600.007 | $ 2.7 | 1 | Idle Mixture Screw Spring |
| 37-A | 47600.007 | $ 2.7 | 1 | Idle Mixture Screw Spring |
| 38 | 64625.012 | $ 9.4 | 1 | Throttle Adjustment Screw |
| 39 | 64520.023 | - | 2 | Throttle Plate Screw |
| 40 | 64005.092 | - | 1 | Throttle Valve |
| 41 | 10001.469 | - | 1 | Primary Throttle Shaft - Oversized |
| 41 | 10000.481 | - | 1 | Throttle Shaft |
| 42 | 58702.022 | - | 1 | Sheat support Assy. including: |
| 43 | 64615.007 | - | 1 | - Screw securing wire |
| 44 | 52145.001 | - | 1 | Sheat securing plate |
| 45 | 58700.026 | - | 1 | — Sheat Support |
| 46 | 64700.012 | $ 3.2 | 1 | Lever Fixing Screw |
| 46-A | 64700.014 | $ 1.1 | 1 | Lever Fixing Screw |
| 47 | 61440.323 | $ 17.1 | 1 | Emulsion Tube |
| 48 | 41360 001 | - | 1 | Air bleed jet |
| 49 | 41700.023 | - | 1 | Carburettor Cover Gasket |
| 50 | 47610.070 | $ 7 | 1 | Throttle Return Spring |
| 51 | 55555.016 | $ 2.2 | 1 | Shaft Spacer |
| 52 | 45048.016 | - | 1 | Throttle Valve Control Lever |
| 53 | 12775.027 | $ 10 | 1 | Bushing For Lever |
| 54 | 55530.002 | $ 3.4 | 1 | Wavy Washer |
| 55 | 45032.122 | - | 1 | Fast idling loose lever |
| 56 | 55555.003 | $ 2.2 | 1 | Washer For Shaft |
| 57 | 55520.002 | $ 1.2 | 1 | Shaft Lock Tab |
| 58 | 34715.014 | $ 1.2 | 1 | Throttle Spindle Nut |
| 59 | 61280.080 | - | 1 | Choke Control Rod |
| 60 | 47610.003 | $ 5.6 | 1 | Choke lever return spring |
| 61 | 64010 021 | - | 1 | Choke throttle valve |
| 62 | 10015.230 | - | 1 | Choke shaft |
| 63 | 47605.026 | - | 1 | Spindle return spring |
| 64 | 64525.003 | - | 2 | Choke plate fixing screw |
| 65 | 12775.055 | $ 12.4 | 1 | Bushing For Lever |
| 66 | 45202.054 | - | 1 | Lever |
| 67 | 45202.053 | - | 1 | — Throttle Lever |
| 68 | 64615.004 | - | 1 | - Screw securing wire |

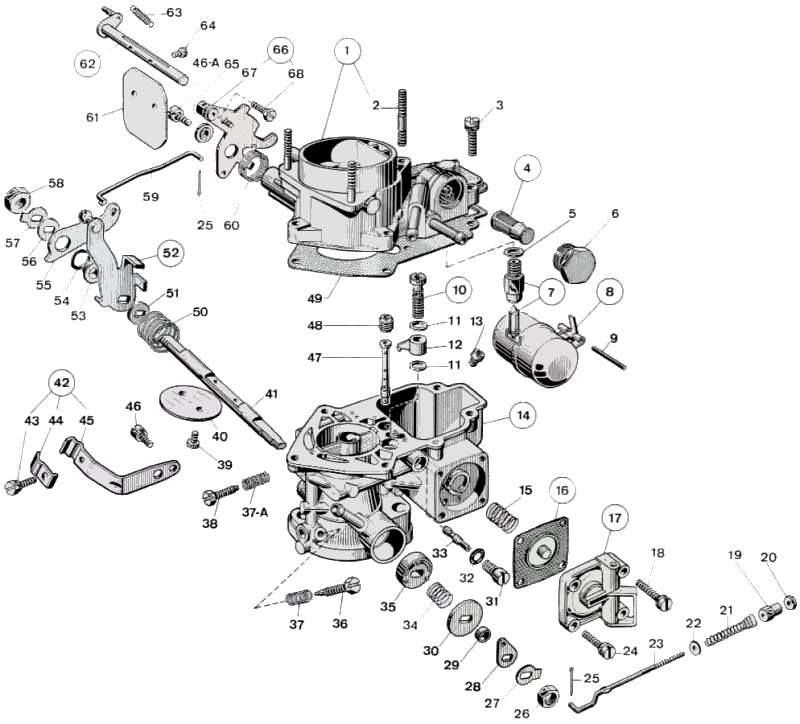

Download exploded view as PDF
