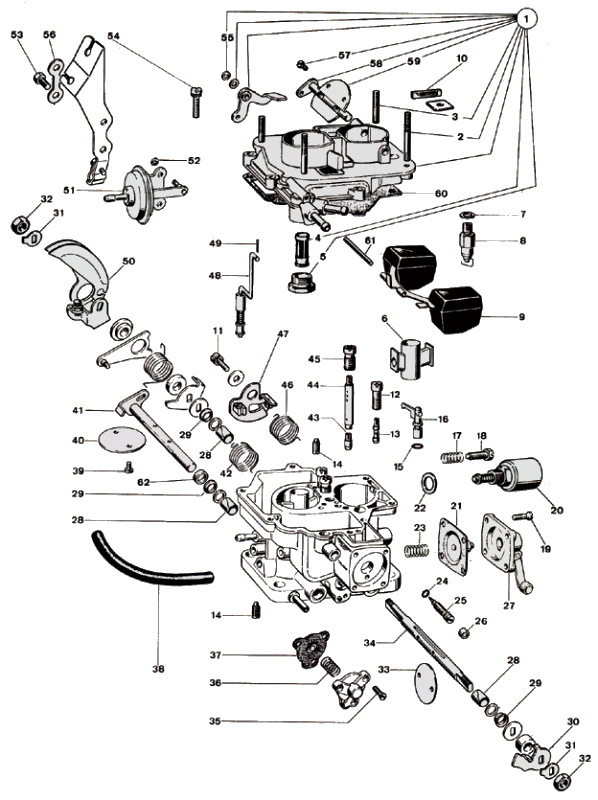

WEBER 32/34 DMTL Teileplan


 - Klicken Sie auf ein Teil, um mehr zu sehen

Liste der Teile:

NoTeil Nr.PreisSt.Beschreibung
131716.475-Carb Top Cover
241705.095-Stud
352000.036$ 2.2Stud
437022.002$ 6.4Fuel filter
561002.018$ 13Fuel filter cover
671115.400-Auxiliary venturi
783102.070-Needle Valve Gasket
879507.175$ 25.5Needle valve
941030.026$ 86.1Float
1061070.002$ 3.5Dust Seal Plate
1164700.012$ 3.2Fixing Screw
1252570.004$ 11.6Idle jet holder
1374403.055$ 4.6Idle Jet
1464595.013-Screw
1541565.001-Pump Jet O-Ring
1676417.045$ 18Pump Jet
1747600.007$ 2.6Throttle Stop Screw Spring
1864625.012$ 9.4Throttle Stop Screw
1964565.001-Screw
2061015.015-Idle Cut Off Solenoid
2147407.050$ 13.8Pump Diaphragm
2241535.003-Idle Cut Off Solenoid Gasket
2347600.107$ 10.8Pump Spring
2441565.010-O-Ring
2564750.052-Idle mixture Screw
2661075.013$ 7.2Idle mixture tamper proof plug
2732486.070-Pump Cover
2852130.010$ 5.7Shaft Bushing
2941575.010$ 6Shaft seal
3014850.177-Cam
3155520.002$ 1.2Tab Washer
3234715.014$ 1.2Throttle Shaft Fixing Nut
3364005.090$ 18.3Throttle valve
3410000.272-Throttle Shaft
3564565.002-Screw
3647600.244-Spring
3747407.182-Diaphragm
3861400.018-Pneumatic pump connecting pipe
3964520.027-Screw
4064005.018$ 18.3Throttle Plate
4110015.311-Throttle shaft
4247610.091-Spring
4373405.110$ 6.6Main Jet
4373405.110$ 6.6Main Jet
4461450.222$ 30.5Emulsion tube
4461450.225$ 30.5Emulsion Tube
4577501.200$ 8.3Emulsion tube holder with Air corrector
4577501.200$ 8.3Air Correction Jet
4647610.058-Spring For Choke Lever
4745202.078-Choke Lever
4861287.030-Choke rod
4932610.005$ 1.6Split Pin For Rod
5045041.332-Carb Lever
5157804.121-Auto Choke
5210140.501-Spring Ring
5364700.026-Lever Fixing Screw
5464700.005-Carb Cover Fixing Screw
5510140.502$ 2.4Spring Washer
5655510.034-Washer
5764525.003-Choke plates fixing screw
5810015.271-Choke shaft
5964010.033-Choke plate
60-
61-Float pin
62-
