WEBER 34 ICH Teileplan - de - USD




Anonymer Käufer
























Carb manufacturer: Carb model:
  Share link to this diagram
   Explosionszeichnung als PDF herunterladen

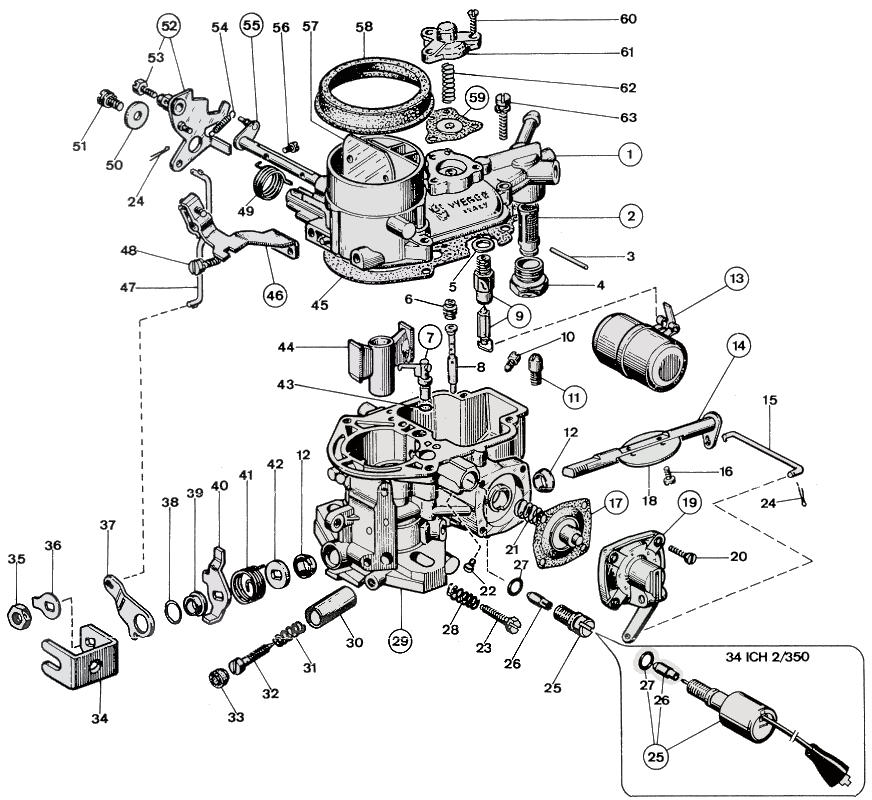

WEBER 34 ICH Teileplan


 - Klicken Sie auf ein Teil, um mehr zu sehen

Liste der Teile:

NoTeil Nr.PreisSt.Beschreibung
131706.080-1Carburetor Body
237022.010$ 61Fuel Filter Screen
352000.010$ 2.21Float Pin
461002.018$ 131Strainer Inspection Plug
583102.070-1Needle Valve Gasket
677201$ 3.71Air Corrector Jet
776407$ 161Pump Jet
861440$ 16.61Emulsion Tube
979507$ 14.51Needle & Seat
1073801$ 4.71Main Jet
1179701$ 11.51Pump Valve
1241575.010$ 62Bushing
1341015.011-1Float
1410015.494$ 81.41Throttle Shaft
1561280.020$ 14.61Pump Control Rod
1664520.023-2Throttle Plate Fixing Screw
1747407.261$ 14.91Accelerator Pump Diaphragm
1864005.007-1Throttle Plate
19Not Serviced-1Pump Cover
2064565.001-4Screw
2147600.107$ 10.81Accelerator Pump Spring
22Not Serviced-1Plug
2364625.012$ 9.41Throttle Stop Screw
2432610.005$ 1.62Split Pin
25a52570.009$ 15.71Idle Jet Holder
25b43904.050$ 20.71Idle Cut Off Solenoid
2674409$ 5.31Idle Jet
2741565.019-1O Ring For Idle Jet
2847600.007$ 2.61Spring For Throttle Stop Screw
29Not Serviced-1Carburetor Body
30Not Serviced-1Bushing
3147600.007$ 2.61Spring For Adjusting Screw
3264750.048$ 22.71Carb Adjusting Screw
33Not Serviced-1Plug
3445136.029$ 14.31Throttle Valve Control Lever
3534715.014$ 1.21Throttle Shaft Fixing Nut
3655520.002$ 1.21Shaft Lock Tab
3745032.075-1Fast Idle Control Lever
3855530.002$ 3.51Wavy Washer
3912775.007-1Bushing
40Not Serviced-1Lever
4147610.058-1Spring For Choke Lever
4255555.016$ 2.31Shaft Spacer
4341565.001-1O-Ring
4470519.450-1Auxiliary Venturi
4541700.010$ 5.21Top Cover Gasket
4658702.023-1Choke Cable Bracket
4761280.021-1Fast Idle Control Rod
4864700.012$ 3.21Lever Fixing Screw
4947610.003$ 5.71Spring
5055510.002$ 1.71Washer
5164700.012$ 3.21Lever Fixing Screw
5245202.125-1Lever
5364615.004-1Screw
5447605.040-1Spring
5510015.279-1Choke Shaft
5664525.003-2Choke Plate Fixing Screw
5764010.026-1Choke Plate
5810304.022-1Rubber Air Filter Adaptor
5947407.250-1Power Valve Diaphragm
60Not Serviced-3Screw
61Not Serviced-1Power Valve Cover
6247600.131-1Spring
63-Screw

WEBER 34 ICH
Exploded view
https://www.carbparts.euPreise und Produktverfügbarkeit können sich ändern

WEBER 34 ICH
Liste der Teile
https://www.carbparts.euPreise und Produktverfügbarkeit können sich ändern
NoTeil Nr.PreisSt.Beschreibung
131706.080-1Carburetor Body
237022.010$ 61Fuel Filter Screen
352000.010$ 2.21Float Pin
461002.018$ 131Strainer Inspection Plug
583102.070-1Needle Valve Gasket
677201$ 3.71Air Corrector Jet
776407$ 161Pump Jet
861440$ 16.61Emulsion Tube
979507$ 14.51Needle & Seat
1073801$ 4.71Main Jet
1179701$ 11.51Pump Valve
1241575.010$ 62Bushing
1341015.011-1Float
1410015.494$ 81.41Throttle Shaft
1561280.020$ 14.61Pump Control Rod
1664520.023-2Throttle Plate Fixing Screw
1747407.261$ 14.91Accelerator Pump Diaphragm
1864005.007-1Throttle Plate
19Not Serviced-1Pump Cover
2064565.001-4Screw
2147600.107$ 10.81Accelerator Pump Spring
22Not Serviced-1Plug
2364625.012$ 9.41Throttle Stop Screw
2432610.005$ 1.62Split Pin
25a52570.009$ 15.71Idle Jet Holder
25b43904.050$ 20.71Idle Cut Off Solenoid
2674409$ 5.31Idle Jet
2741565.019-1O Ring For Idle Jet
2847600.007$ 2.61Spring For Throttle Stop Screw
29Not Serviced-1Carburetor Body
30Not Serviced-1Bushing
3147600.007$ 2.61Spring For Adjusting Screw

NoTeil Nr.PreisSt.Beschreibung
3264750.048$ 22.71Carb Adjusting Screw
33Not Serviced-1Plug
3445136.029$ 14.31Throttle Valve Control Lever
3534715.014$ 1.21Throttle Shaft Fixing Nut
3655520.002$ 1.21Shaft Lock Tab
3745032.075-1Fast Idle Control Lever
3855530.002$ 3.51Wavy Washer
3912775.007-1Bushing
40Not Serviced-1Lever
4147610.058-1Spring For Choke Lever
4255555.016$ 2.31Shaft Spacer
4341565.001-1O-Ring
4470519.450-1Auxiliary Venturi
4541700.010$ 5.21Top Cover Gasket
4658702.023-1Choke Cable Bracket
4761280.021-1Fast Idle Control Rod
4864700.012$ 3.21Lever Fixing Screw
4947610.003$ 5.71Spring
5055510.002$ 1.71Washer
5164700.012$ 3.21Lever Fixing Screw
5245202.125-1Lever
5364615.004-1Screw
5447605.040-1Spring
5510015.279-1Choke Shaft
5664525.003-2Choke Plate Fixing Screw
5764010.026-1Choke Plate
5810304.022-1Rubber Air Filter Adaptor
5947407.250-1Power Valve Diaphragm
60Not Serviced-3Screw
61Not Serviced-1Power Valve Cover
6247600.131-1Spring
63-Screw
