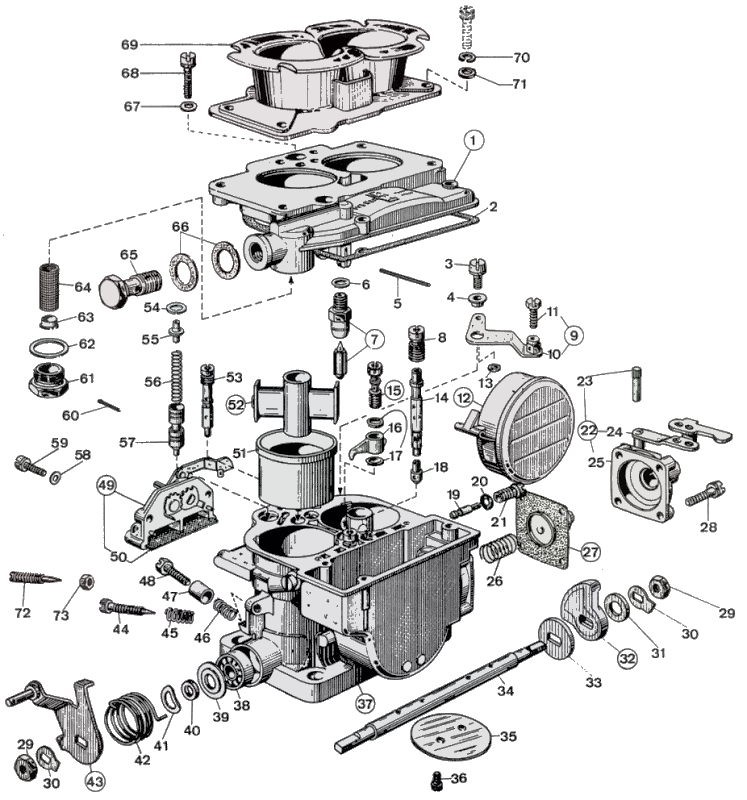

WEBER 42 DCNF 2 Teileplan


 - Klicken Sie auf ein Teil, um mehr zu sehen

Liste der Teile:

NoTeil Nr.PreisSt.Beschreibung
131716.096-1Carburetor Top Cover
241705.029$ 9.61Top Cover Gasket
364700.012$ 3.21Lever Fixing Screw
412775.010$ 10.11Bushing For Lever
552000.010$ 2.21Float Fulcrum Pin
641535.015-1Needle valve gasket
764240.015$ 8.81Float needle valve
841370.001$ 6.42Emulsion tube holder air corrector
945096.020-1Leva a squadro completa di:
1045096.019-1— Lever
1164615.004-1- Screw securing wire
1241015.005$ 94.11Float
1355510.056$ 1.71Flat Washer
1461450.225$ 30.52Emulsion Tube
1564290.014$ 34.51Pump Delivery Valve
1641252.018$ 131Pump Jet
1741530.012-2Pump jet gasket
1841115.003$ 6.12Main jet
1941160.005$ 4.52Idle jet
2041565.002-2Idle jet holder O Ring seal
2152570.006$ 7.42Idle Jet Holder
2232486.036-1Accelerator Pump Cover Assembly Includes
2352000.021-1— Pin
2445138.008-1— Throttle Lever
2532484.001-1— Pump diaphragm cover
2647600.092-1Pump Spring
2747407.050$ 13.81Pump diaphragm
2864700.006-4Pump Cover Screw
2934710.003$ 1.22Throttle Spindle Nut
3055520.004$ 1.22Throttle Shaft Lock Washer
3155510.006-1Washer For Shaft
3214852.010-1Pump Cam
3355555.005$ 2.51Shaft Spacer
3410005.211$ 991Throttle Shaft
3564005.033$ 35.12Throttle Valve
3664520.027-4Throttle plate screw
37--1Carburetor Body
3832650.001$ 5.72Throttle Shaft Bearing
3958000.017$ 4.12Spring Retaining Cover
4012750.053-2Shaft Distance Piece
4155530.010-2Wavy Washer
4247610.078$ 6.61Primary Shaft Return Spring
4345041.050-1Throttles control lever
4464750.003$ 4.42Idle mixture screw
4547600.007$ 2.62Idle Mixture Screw Spring
4647600.007$ 2.61Throttle Stop Screw Spring
4712785.013-1Bushing
4864625.014-1Throttle Stop Screw
4932556.019-1Starter control, including:
5037000.016$ 6.61— Filter Screen
5134914.006-2Venturi (Choke)
5231956.003-2Auxiliary Venturi
5341205.151$ 13.52Starter Jet
5410140.002$ 3.52Spring Clip
5512775.024$ 52Spring guide and retainer
5647600.139$ 52Starter Valve Spring
5764330.008$ 31.52Starter Valve
5855510.038-2Flat Washer
5964700.004$ 3.52Pump Cover Screw
6032610.006-1— Spilt pin
6161002.010$ 7.41Fuel Filter Cover
6241530.024-1Fuel Filter Gasket
6361060.001-1Filter Washer
6437020.002$ 5.71Fuel Filter Element
6512715.021$ 41.11Fuel Union Bolt
6641530.001-2Gasket
6755510.034-4Spring Washer
6864700.005-4Top Cover Fixing Screw
6952848.001$ 1371Air Horn
7055525.001-4Spring Washer
7155510.034-4Spring Washer
7264750.002$ 10.82Air by-pass screw
