WEBER 28 ICP diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
131706.014-1Carburetor Body
264570.007$ 2.72Throttle Plate Screw
364010.005-1Choke throttle valve
410015.214$ 98.71Choke shaft
547605.017$ 5.71Spring
647610.003$ 5.71Choke lever return spring
710400.016$ 10.81Pump Rod
864700.012$ 3.21Lever Fixing Screw
945202.004-1Choke control lever Assy including
1045202.005-1— Throttle Lever
1134720.002$ 6.61— Cold Start Nut
1264800.002$ 7.61— Screw securing wire
1352140.006$ 5.51Pump Screen retainer
1447600.068$ 81Pump rod spring
1558602.001-1Pump plunger
1641160.001$ 7.41Idle jet
1741555.004-1Pump Jet Cover O ring
1852570.005$ 10.81Idle Jet Holder
1961280.007-1Choke Control Rod
2055510.002$ 1.71Spring Washer
2134705.001-1Nut
2255525.001-1Spring Washer
2345041.002-1Leva comando farfalla 28 ICP 1 .
23A45041.017$ 36.61Leva comando farfalla 28 ICP 3-6
2412775.016-1Bushing
2545032.053-1Leva per minimo veloce
2647610.016$ 6.41Lever return spring
2764615.005-1Inspection Cover Fixing Screw
2852145.002$ 2.31Sheat securing plate
29-1Carburettor body
3064005.021$ 21.31Throttle plate
3164570.007$ 2.72Throttle Plate Screw
3210001.202-1Primary Throttle Shaft - Oversized
3210000.205-1Primary Shaft
33-1Bushing
3447600.006-1Bush retaining spring
3545136.012-1Throttle Stop
3645136.003-1Lever
3712775.017-1Bushing
3855525.001-1Spring Washer
3934705.001-1Nut
40 A47600.084$ 61— Spring
4047600.084$ 61— Spring
4164755.006$ 131Idling adjusting screw
4241120.001$ 4.91Main jet
4341540.001$ 21Gasket
4452590.001$ 111Jet Holder
4564625.002$ 4.21Throtle Stop Screw
4652000.01-1Float Fulcrum Pin
4741015.002-1Float
4861440.451-1Emulsion Tube
4941360.001$ 3.51Air bleed jet
5041252.004$ 161Pump jet
5164290.005$ 34.51Valve
5264290.001$ 10.41Back bleed valve
5364240.008-1Float valve
5441535.015-1Needle valve gasket
5541700.015-1Top Cover Gasket
5661002.011-1Fuel Filter Cover
5741530.024-1Fuel Union Gasket
5837022.002$ 6.41Filter element
5964700.005-4Top Cover Fixing Screw
60-1
6155510.019$ 1.41Spring Washer
6232610.005$ 1.61Spilt pin

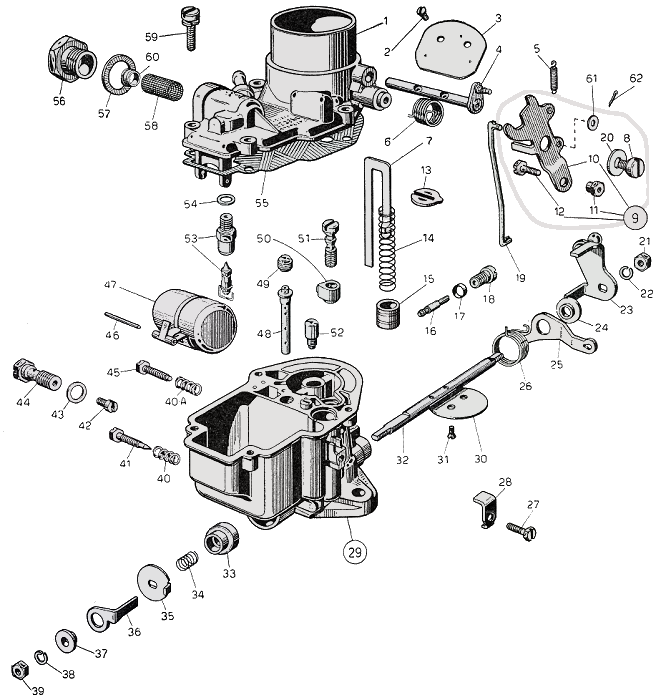

WEBER 28 ICP
