WEBER 38 DCNL 5 diagrama de partes - es - USD




Comprador anónimo
























Carb manufacturer: Carb model:
  Share link to this diagram
   Descargar la vista detallada en PDF

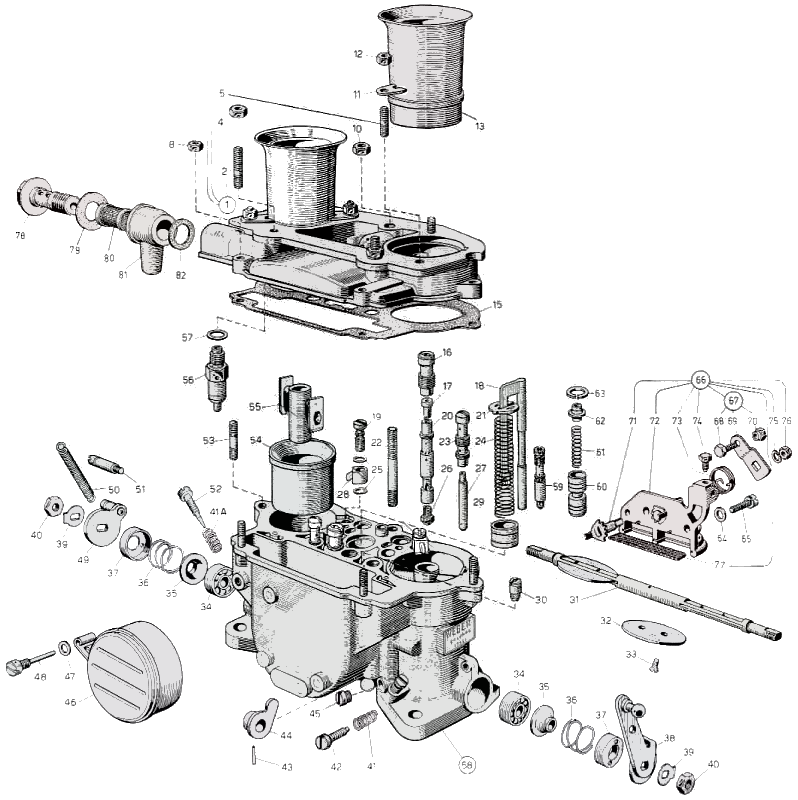

WEBER 38 DCNL 5 diagrama de partes


 - haga clic en parte para ver más

Lista de partes:

NoParte NoPrecioPzas.Descripción
131716.047-1Carburetor cover Assy, including:
264955.104-2Stud
434725.004-2— Air Horn Fixing Tab Nut
564955.009$ 5.24Stud
834725.003-4Throttle Spindle Nut
1034725.004-1Throttle Spindle Nut
1152150.013$ 1.34Air Horn Fixing Tab
1234725.003-4Throttle Spindle Nut
1352840.028$ 422Air intake horn
1541705.018-1Top Cover Gasket
1652580.001$ 82Emulsion Tube Holder
1741365.001$ 32Air corrector
1810410.017-1Pump Rod
1964290.003$ 29.12Valve
2061450.031$ 11.62Emulsion tube
2152140.007$ 7.21Plunger Spring Retaining Plate
2264955.109-1Stud bolt
2352585.008$ 12.32Idle jet holder
2447600.103$ 5.21Pump rod spring
2541530.012-4Pump jet gasket
2641110.001$ 32Main jet
2741165.252-2Idle jet
2841252.009-2Pump jet
2958602.012-1Pump plunger
3064290.001$ 10.41Back bleed valve
3110005.401$ 421Throttle Shaft
3264005.050-2Butter Fly
3364570.006$ 3.64Throttle Plate Screw
3432650.001$ 5.72Throttle Shaft Bearing
3541570.001$ 1.22Dust Cover
3647600.063$ 2.22Spring
3758000.007$ 3.22Retaining Cover
3845034.053-1Throttles control lever
3955520.004$ 1.22Throttle Shaft Lock Washer
4034710.003$ 1.22Throttle Spindle Nut
4147600.007$ 2.61Throttle Stop Screw Spring
41A47600.007$ 2.62Idle Mixture Screw Spring
4264590.002$ 2.31Throttle Stop Screw
4358445.001-1Fixing Pin
4445082.013-1Pump Cam
4561015.001$ 8.72Plug
4641015.008-1Float
4741530.017-1O´ ring
4864900.010-1Float Pin
4945027.040-1Lever
5047605.018-1Throttle Return Spring
5152010.036-1Pin
5264750.001$ 4.42Idle Mixture Screw
5364955.012-4Stud
5434914.016-2Choke tube
55319S6.002-2Auxiliary venturi
5664240.005$ 21.21Float needle valve
5741530.032-1Gasket for needle valve seat
58--1Carburetor Body
5941205.101$ 12.62Starter Jet
6064330.003$ 10.22Starter valve
6147600.005$ 2.22Starter Valve Spring
6212775.004$ 52Spring guide and retainer
6310140.010$ 3.62Clip
6455510.038-2Flat Washer
6564700.004$ 3.52Pump Cover Screw
6632556.005-1— Cold Start Unit
6745027.039-1— Cold Start Lever
6864800.002$ 7.61— Screw securing wire
6945025.043-1Choke Lever
7034720.002$ 6.61— Cold Start Nut
7110085.009-1Choke Control Shaft
7232556.006-1— Cold Start Unit
7347610.042$ 10.81- Spring
7464605.017$ 1.71— Choke Cable Clamp
7555525.010-1— Spring washer
7634715.010-1— Lever fixing nut
7737000.016$ 6.61— Filter Screen
7812715.003-1Fuel Union Bolt
7941530.004-1Gasket
8037022.001$ 23.11Fuel Filter
8110354.006$ 21.51Fuel Union
8241530.001-1Gasket

WEBER 38 DCNL 5
Exploded view
https://www.carbparts.euLos precios y la disponibilidad de los productos están sujetos a cambios

WEBER 38 DCNL 5
Lista de partes
https://www.carbparts.euLos precios y la disponibilidad de los productos están sujetos a cambios
NoParte NoPrecioPzas.Descripción
131716.047-1Carburetor cover Assy, including:
264955.104-2Stud
434725.004-2— Air Horn Fixing Tab Nut
564955.009$ 5.24Stud
834725.003-4Throttle Spindle Nut
1034725.004-1Throttle Spindle Nut
1152150.013$ 1.34Air Horn Fixing Tab
1234725.003-4Throttle Spindle Nut
1352840.028$ 422Air intake horn
1541705.018-1Top Cover Gasket
1652580.001$ 82Emulsion Tube Holder
1741365.001$ 32Air corrector
1810410.017-1Pump Rod
1964290.003$ 29.12Valve
2061450.031$ 11.62Emulsion tube
2152140.007$ 7.21Plunger Spring Retaining Plate
2264955.109-1Stud bolt
2352585.008$ 12.32Idle jet holder
2447600.103$ 5.21Pump rod spring
2541530.012-4Pump jet gasket
2641110.001$ 32Main jet
2741165.252-2Idle jet
2841252.009-2Pump jet
2958602.012-1Pump plunger
3064290.001$ 10.41Back bleed valve
3110005.401$ 421Throttle Shaft
3264005.050-2Butter Fly
3364570.006$ 3.64Throttle Plate Screw
3432650.001$ 5.72Throttle Shaft Bearing
3541570.001$ 1.22Dust Cover
3647600.063$ 2.22Spring
3758000.007$ 3.22Retaining Cover
3845034.053-1Throttles control lever
3955520.004$ 1.22Throttle Shaft Lock Washer
4034710.003$ 1.22Throttle Spindle Nut
4147600.007$ 2.61Throttle Stop Screw Spring
41A47600.007$ 2.62Idle Mixture Screw Spring
4264590.002$ 2.31Throttle Stop Screw
4358445.001-1Fixing Pin

NoParte NoPrecioPzas.Descripción
4445082.013-1Pump Cam
4561015.001$ 8.72Plug
4641015.008-1Float
4741530.017-1O´ ring
4864900.010-1Float Pin
4945027.040-1Lever
5047605.018-1Throttle Return Spring
5152010.036-1Pin
5264750.001$ 4.42Idle Mixture Screw
5364955.012-4Stud
5434914.016-2Choke tube
55319S6.002-2Auxiliary venturi
5664240.005$ 21.21Float needle valve
5741530.032-1Gasket for needle valve seat
58--1Carburetor Body
5941205.101$ 12.62Starter Jet
6064330.003$ 10.22Starter valve
6147600.005$ 2.22Starter Valve Spring
6212775.004$ 52Spring guide and retainer
6310140.010$ 3.62Clip
6455510.038-2Flat Washer
6564700.004$ 3.52Pump Cover Screw
6632556.005-1— Cold Start Unit
6745027.039-1— Cold Start Lever
6864800.002$ 7.61— Screw securing wire
6945025.043-1Choke Lever
7034720.002$ 6.61— Cold Start Nut
7110085.009-1Choke Control Shaft
7232556.006-1— Cold Start Unit
7347610.042$ 10.81- Spring
7464605.017$ 1.71— Choke Cable Clamp
7555525.010-1— Spring washer
7634715.010-1— Lever fixing nut
7737000.016$ 6.61— Filter Screen
7812715.003-1Fuel Union Bolt
7941530.004-1Gasket
8037022.001$ 23.11Fuel Filter
8110354.006$ 21.51Fuel Union
8241530.001-1Gasket
